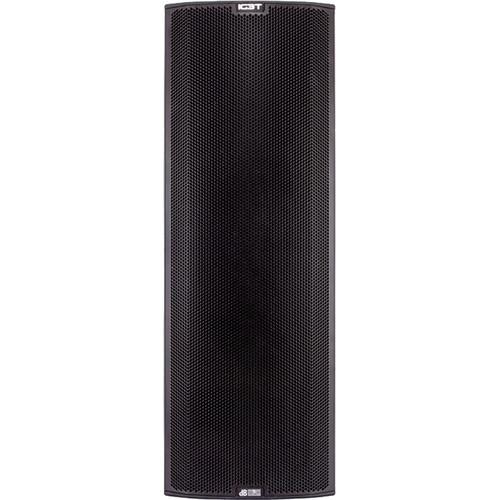

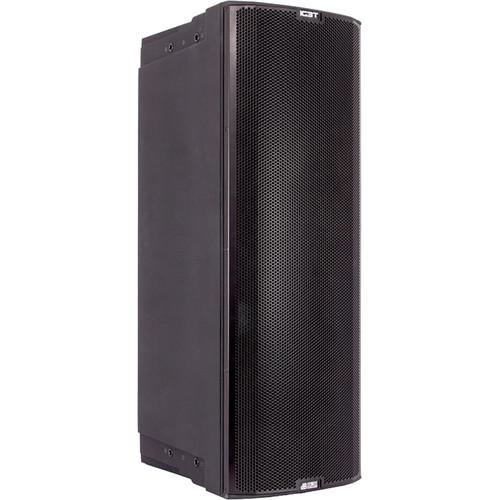

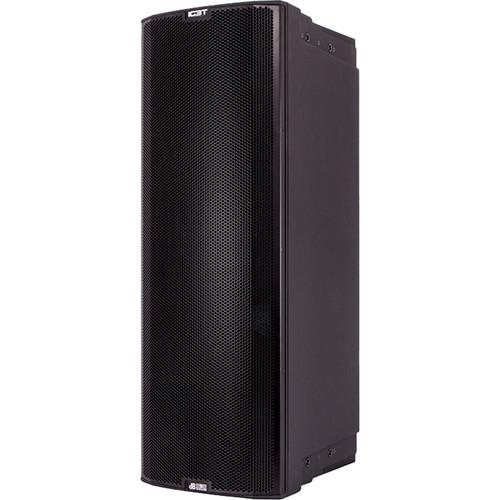

Product description The INGENIA IG3T 2-Way Active Speaker from dB Technologies features 2 x 10" woofers, a 1.4" compression driver, and is equipped with a 900W RMS Digipro G3 digital amplifier. It combines high power, lightweight design, and SMPS technology with PSU auto-range. It is equipped with an infrared system in the two handles on top and bottom sides. The horn of the INGENIA IG3T is horizontally symmetric and vertically asymmetric (narrower in the upper part and wider in the lower). The DSP doesn't act only on the compression driver, but also on woofers, ensuring maximum intelligibility and transparency in the whole frequency range. - General Features
-
- 2-way active speaker
- 2 x 10” woofer, 1.4” compression driver
- 900W RMS class-D Digipro G3 amplifier
- Asymmetrical vertical coverage
- Digital steering coverage
- Element position detection
- Speakers with neodymium magnet
- User-friendly interface (OLED-encoder)
- Unique speaker lock system
- Delay on board
- Microphone HPF and notch filter (variable frequency)
- Applications
-
- Compact live sound reinforcement system
- Permanent installation in theatres, houses of worship, convention centers
- Portable PA, retail, clubs, ballrooms, houses of worship, corporate AV, live theatre
In the Box dB Technologies INGENIA IG3T 2-Way Active Speakers (2 x 10" / 1.4", 900W RMS) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies INGENIA IG3T 2-Way Active Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies IG3T Specs | | | Speaker Type | 2-way active speaker | | | | Frequency Response | -10 dB: 53 to 20000 Hz
-6 dB: 57 to 19200 Hz | | Maximum SPL | 132 dB | | High Frequency Drivers | Size: 1.4" (3.5 cm), 3" (3.6 cm) voice coil
Directivity (H x V): 110 x 90° (20 /-70°)
Type: Neodymium compression driver | | Horn | Vertical asymmetric | | Crossover Frequency | 1100 Hz | | Low Frequency Drivers | Size: 2 x 10.0" (25.4 cm), 2.5" (5.1 cm) voice coil

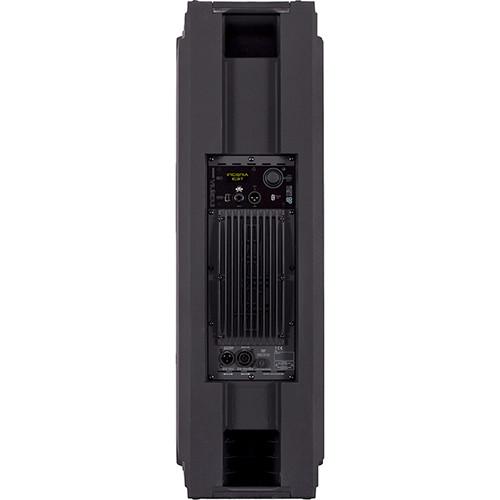

Type: Neodymium | | | | Technology | Digipro G3 | | Class | Class D | | RMS Power | 900 W | | Peak Power | 1800 W | | | | Controller | DSP 56-bit | | Converter | AD / DA: 24-bit / 48 kHz | | Limiter | Dual active peak, RMS, thermal | | | | Signal Input | 1 x Combo IN (XLR + Jack 6.3 mm) | | User Interface | OLED display and rotative knob with switch | | Signal Output | 1 x XLR link out | | Service Port | Mini USB | | Connector | Mains: New Neutrik NAC3PX | | | | Positioning | Self-rotating display
Accelerometer
Infrared communication and display mirroring
10 / 5 / 0 / -5 / -10° digital steering | | Equalizer | Acoustic correction (Low / high shelving, mid attenuation)
Microphone HPF and notch filter (variable frequency) | | Delay | On Board:
Stage Alignment: 49.2' (15.0 m)
System Delay: 143.4' (43.7 m) | | | | Housing | Polypropylene PP reinforced | | Grille | Full / invisible screws; flyable | | Handles | 1 x Top
1 x Bottom | | Pole Mount | Standard D36 mm | | Dimensions (W × H × D) | 11.02 x 31.73 x 15.47" (27.99 x 80.59 x 39.29 cm) | | Weight | 49.0 lb (22.2 kg) | | | | Package Weight | 54.0 lb | | Box Dimensions (LxWxH) | 35.75 x 18.75 x 13.75" |
