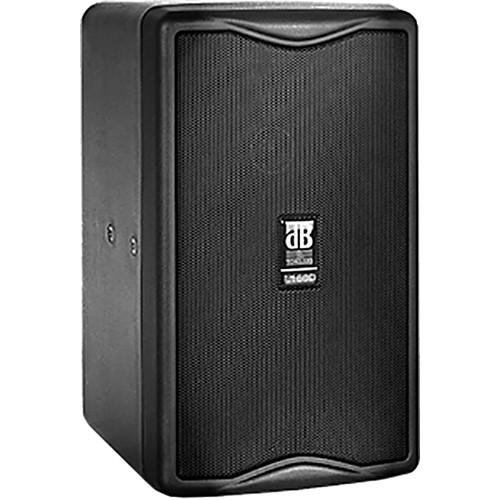

User Manual for dB Technologies L 160 D 2-Way Active Speaker Click to enlarge the picture
Contents of the user manual for the dB Technologies L 160 D 2-Way
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies L 160 D 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

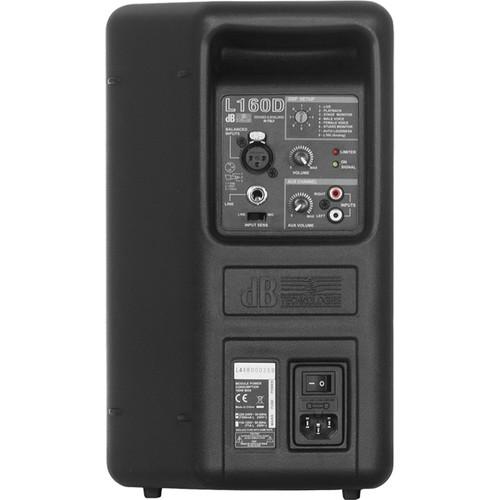

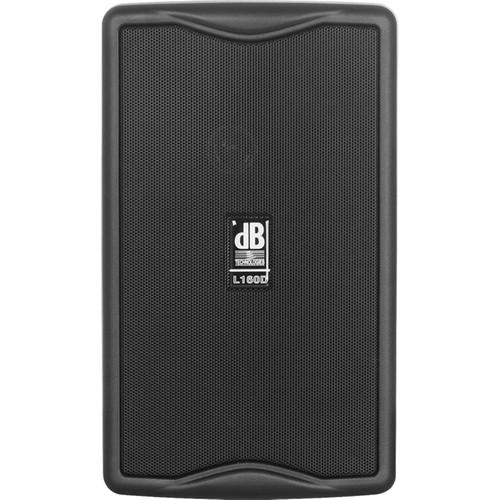

Product description The L 160 D 2-Way Active Speaker from dB Technologies offers a variety of connection options to provide convenient sound reinforcement for multimedia applications. Paired with a DSP, the two 5" phase-corrected loudspeakers deliver high sound-pressure levels for their size and an amazingly transparent and articulate sonic image. The multifunctional housing offers wall-mount fixing points for permanent installation and a pole mount for portable use. In the Box dB Technologies L 160 D 2-Way Active Speaker (160W) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies L 160 D 2-Way Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies L 160 D Specs | | | Speaker Type | 2-way active speaker | | | | Frequency Response | -10 dB: 70 Hz to 20 kHz | | Max SPL Level | 116 dB | | HF Amplifier | 1.0" (2.5 cm) | | Directivity | 85 x 75° | | LF Amplifier | 2 x 5.0" (12.7 cm) | | | | Technology | digipro | | Class | D | | Power | 160 W | | Cooling | Convection | | | | Controller | DSP 24-bit/48 kHz | | Presets | 8 | | Limiter | Dual active peak, RMS, thermal | | | | Signal Inputs | 1x XLR line-in/mic 1 x 6.3 mm phone jack
1x RCA cinch AUX with volume control | | Microphone Input | Supported | | Signal Output | 1 x 6.3 mm phone jack | | Accessory Power Socket | VDE | | Voltage Range | 110 to 120 to 220 to 240 V | | | | Angle | Angle Up: Monitor use 60° | | Rigging Points | 2 x M5 on side
2 x M5 on bottom for accessories | | Housing | Polypropylene PP | | Dimensions (W x H x D) | 7.87 x 13.19 x 8.66" (20.00 x 3.35 x 2.20 cm) | | Weight | 11.46 lb (5.19 kg) | | | | Package Weight | 14.6 lb | | Box Dimensions (LxWxH) | 16.2 x 10.9 x 10.2" |
