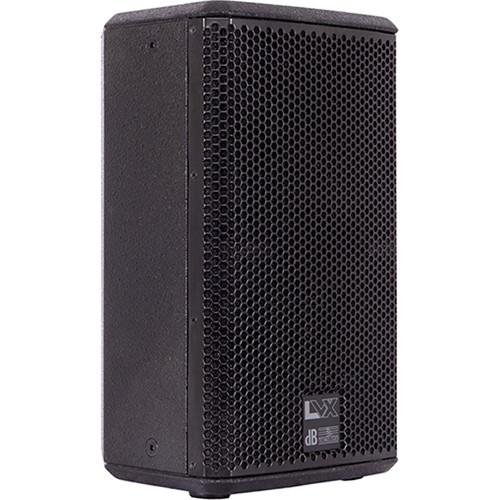

User Manual for dB Technologies LVX 8W 8" 2-Way Active Speaker Click to enlarge the picture
Contents of the user manual for the dB Technologies LVX 8W 8" 2-Way
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies LVX 8W 8" 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|
Product description The white LVX 8 8" 2-Way Active Speaker from dB Technologies is equipped with a DIGIPRO amplifier delivering 400W (Power PRG). The active two-way speaker features an 8" woofer (voice coil 1.5"), and a 1" driver (voice coil 1") on a 90 x 70° horn. The speaker's horizontal directivity is 90° by default factory setting. The speaker is made of 12mm birch plywood. The 1 top handle and the 10 M8 threads located on the sides and the back of the speaker enable easy transport and installation. In the Box dB Technologies LVX 8W 8" 2-Way Active Speaker (400W, White) Pole-Mount Cup Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies LVX 8W 8" 2-Way Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies LVX 8W Specs | System | Active 2 A | | Amplifier Type | Digital - Class D DIGIPRO G2 technology | | Power | PRG: 400 W | | Peak Power | 800 W | | Frequency Response | -6 dB: 80 Hz to 19 kHz
-10 dB: 65 Hz to 20 kHz | | Crossover | LF to HF: 2050 Hz 24 db/octave | | Range | Cover: 90 x 70° (rotate) | | Sound Pressure | 121 dB maximum | | Cooling | Convection, fan-free | | Processor | Audio Conversion: 24-bit/48 kHz
Volume Control: Digital | | Limiter | Peak, RMS, thermal, limiters | | Component Parts | 8.0" (20.3 cm) Woofer: 1.5" (3.8 cm) VC
Driver: 1.0" (2.5 cm) VC | | Input Sensitivity | Nominal: -3 dBu max | | Impendance | Input: 2.2 Kohm / 20 Kohm | | Power Supply | 100 to 120 VAC, 50 to 60Hz
220 to 240 VAC, 50 to 60Hz | | Inrush Current | 2.1 A | | Current Consumption | 100 to 120 VAC, 50 to 60 Hz: 1.5 A
220 to 240 VAC, 50 to 60 Hz: 0.75 A | | Housing | Trapezoidal | | Material | Steel | | Support | Flying: 10 x M8 | | Handle | 1 housing (top side) | | Mount | Pole-mount cup: D36 mm (aluminum) | | Grille | Frontal: Performed sheet 1.2 mm with internal foam | | Dimensions | 10.24 x 16.54 x 10.24" (26.00 x 42.00 x 26.00 cm) | | Weight | 22.2 lb (10.1 kg) |
