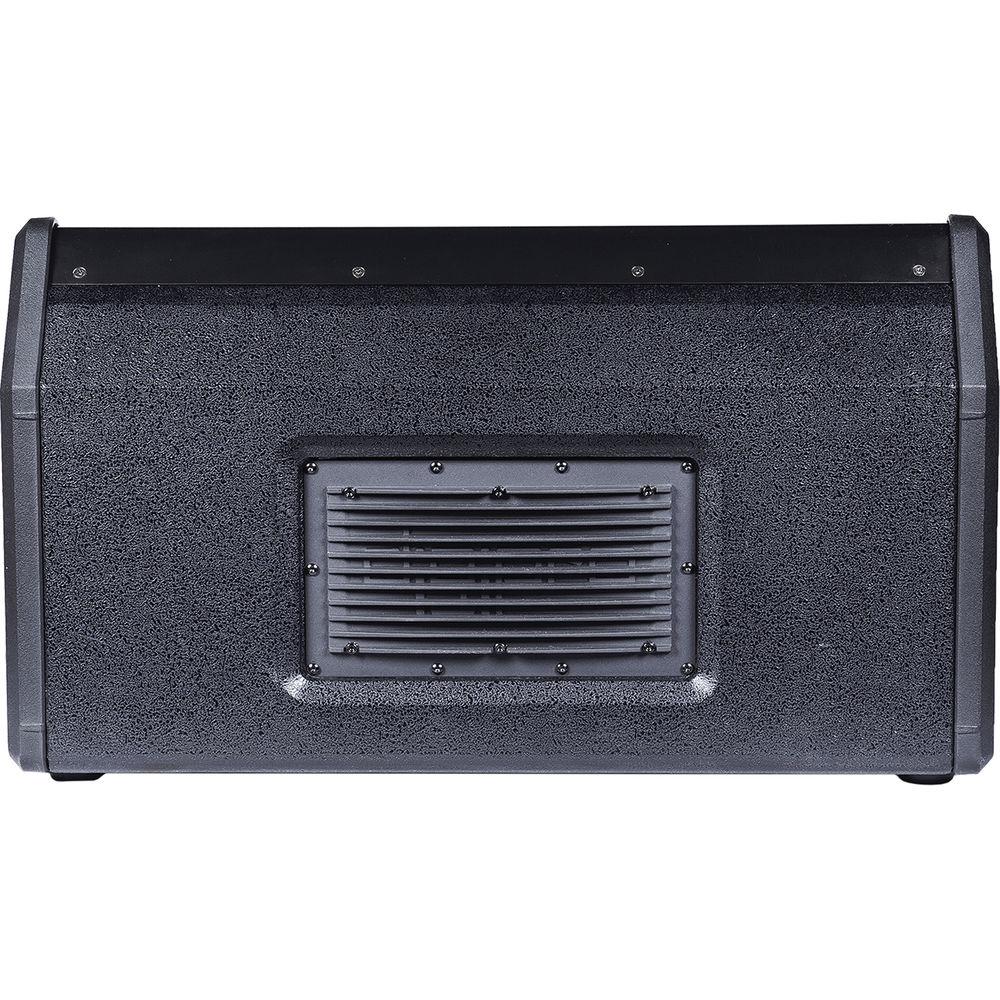

User Manual for dB Technologies LVX XM 15" Professional Stage Monitor Click to enlarge the picture
Contents of the user manual for the dB Technologies LVX XM 15" Professional
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies LVX XM 15" Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

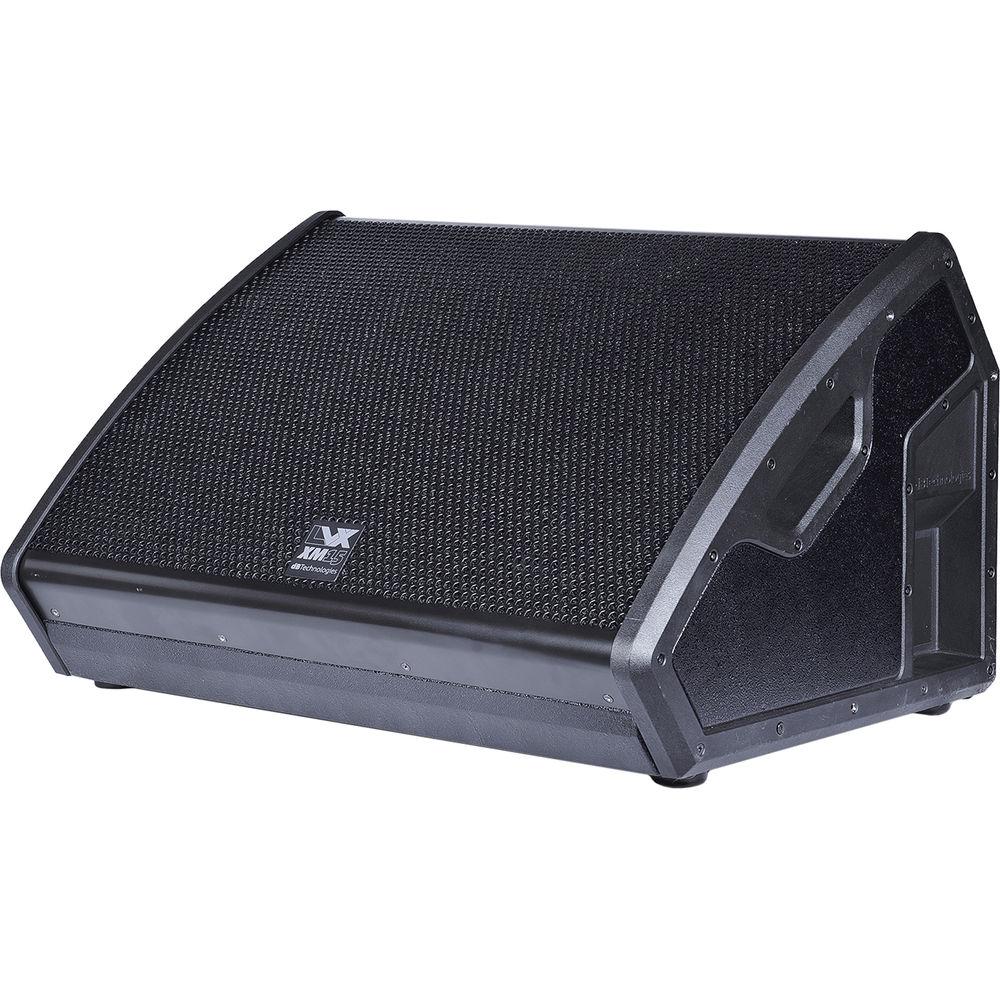

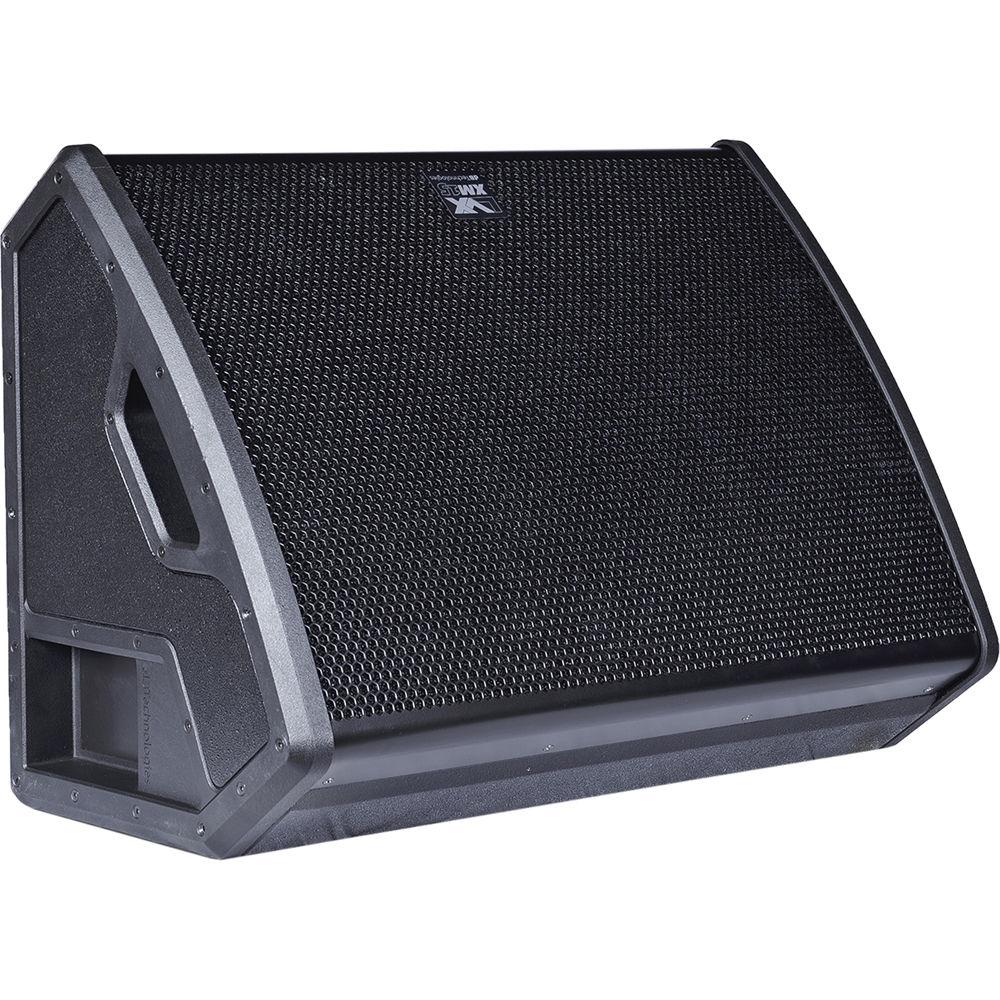

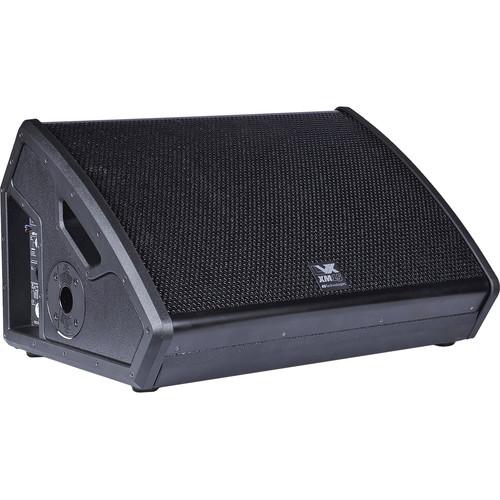

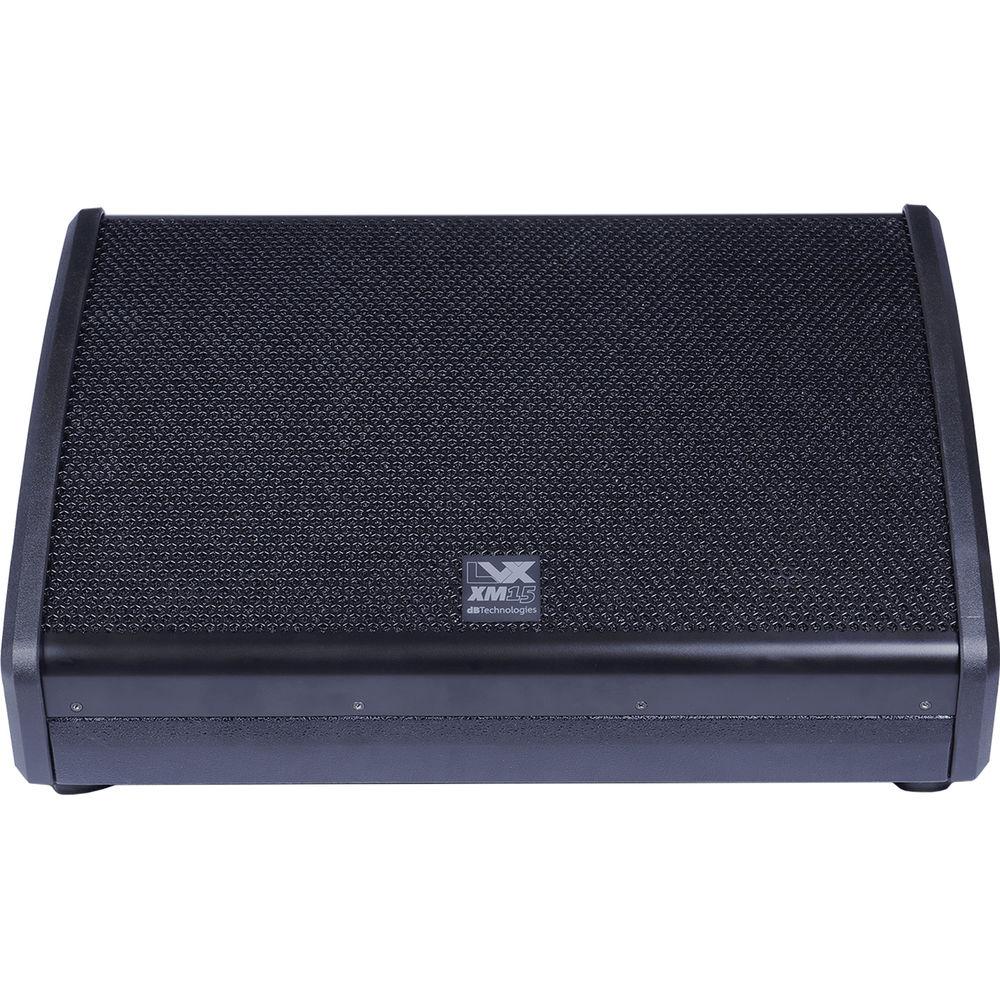

Product description The LVX XM 15” Professional Stage Monitor from dB Technologies meet all live music and touring requirements where sound reinforcement systems must be lightweight, portable, impact-resistant and easily adaptable to different stage necessities. -
- Design enhances the benefits of coaxial horn wedges concept

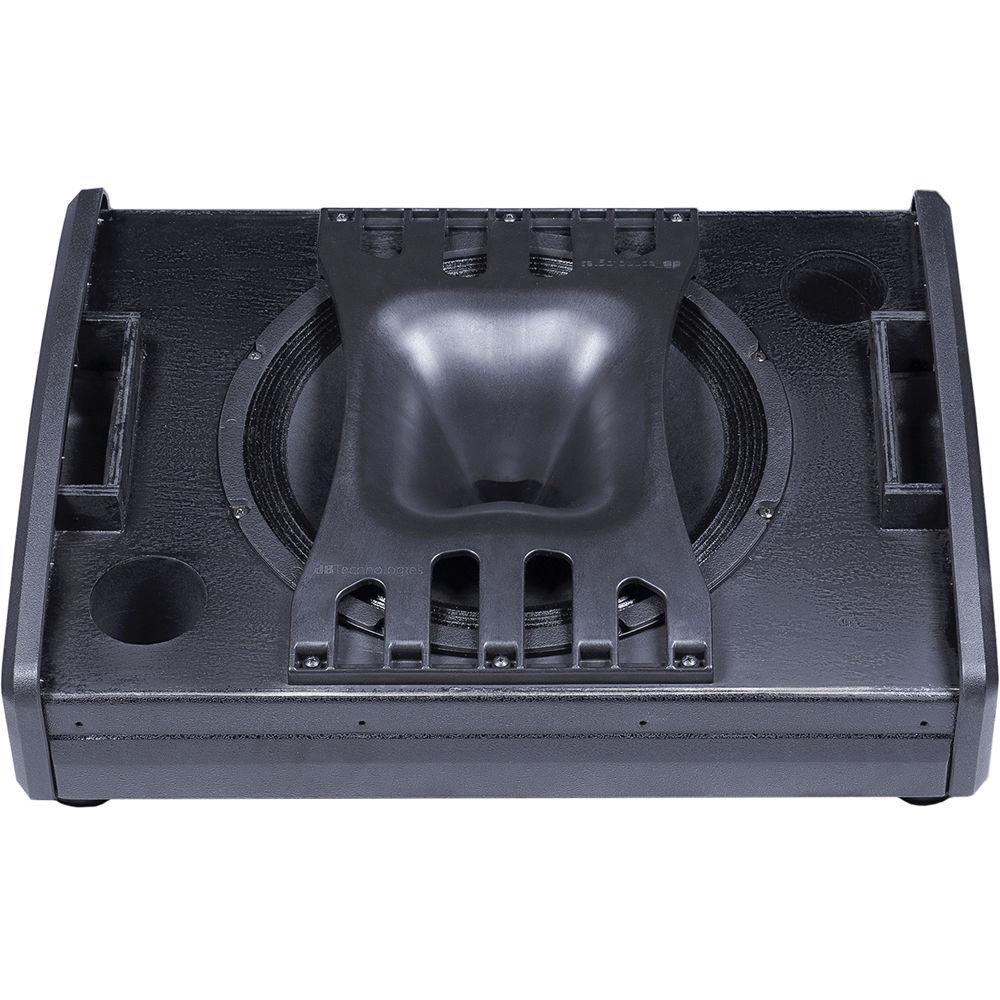

- Horn not only shapes high frequencies’ directivity but also acts as a phase plug for the woofer, boosting and lighting up the vocal band, thanks also to the advanced DSP featuring FIR filters processing
- Horn contributes to deliver a bright audio performance with a uniform throw pattern, and contributes to reduce the overall dimensions of the system and protect the internal components, reinforcing the cabinet structure
- Features an advanced DSP offering eight variable presets in order to easily adapt to different stage requirements and to the varying demands of vocalists, instrumentalists as well as audio playback applications

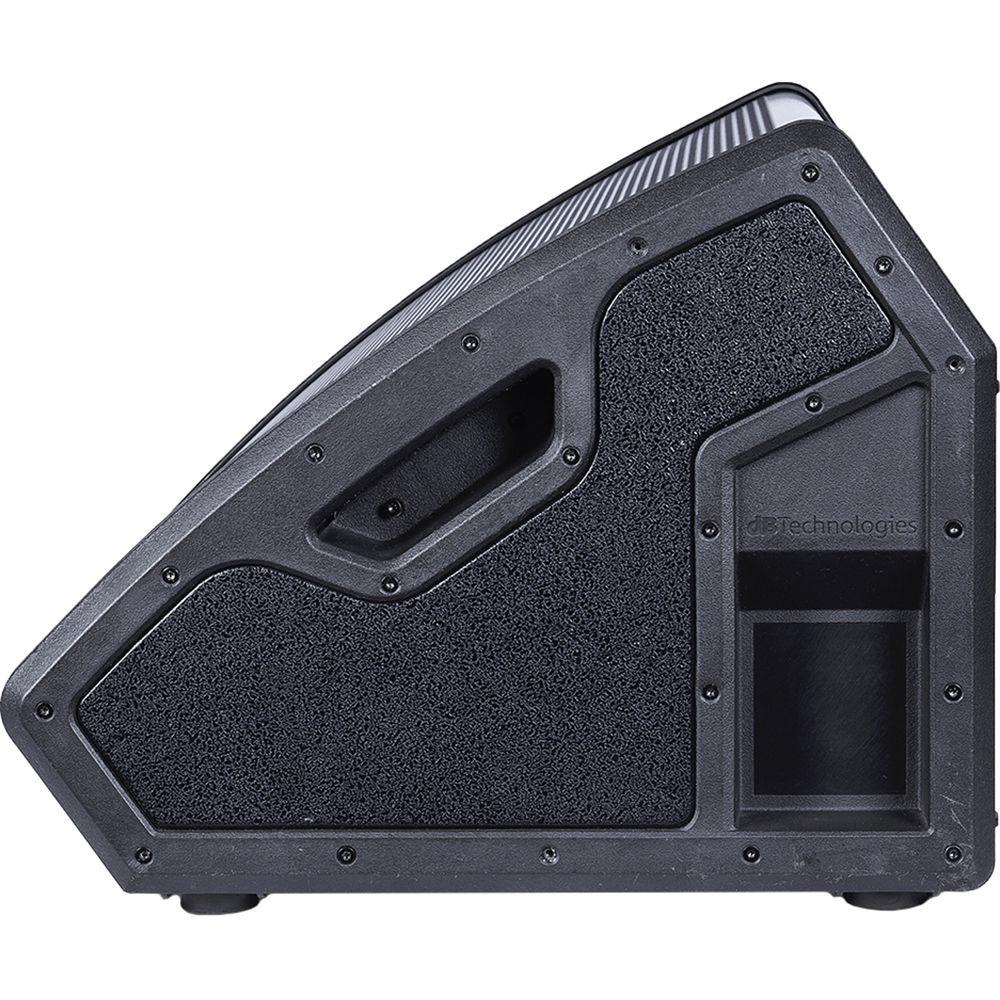

- Cabinet is constructed in sturdy plywood and comes with 2 integrated side handles to allow easy transport and stage setup operations

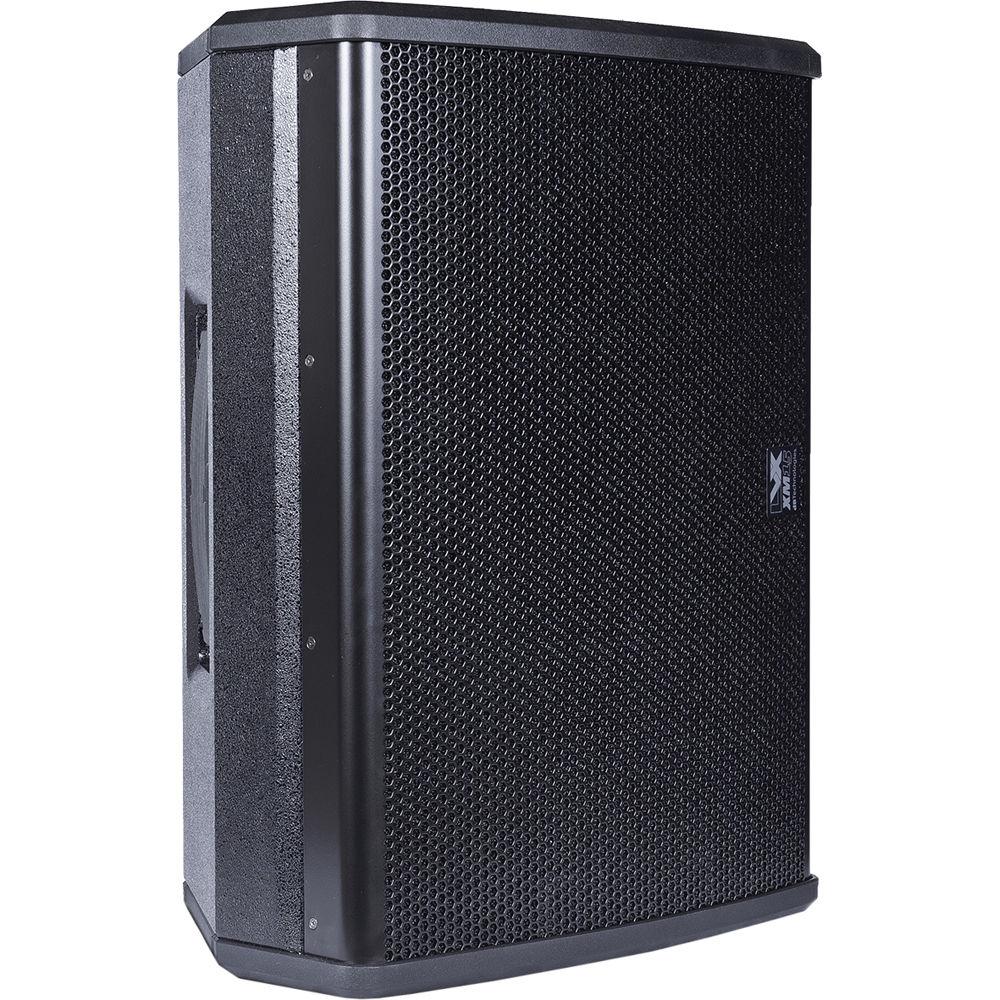

- Pole mount cup on one side allows to mount the system on a pole for vertical use
In the Box dB Technologies LVX XM 15" Professional Stage Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies LVX XM 15" Professional Stage Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies LVX XM15 Specs | Active or Passive | Active | | Speaker Type | 2-way coaxial stage monitor | | Amplifier Technology | Digipro G3 | | Frequency Response | 58 to 17,800 Hz (-6 dB) | | Power Capacity | Power RMS: 600 W
Peak Power: 1200 W | | Maximum Sound Pressure Level (SPL) | 128 dB | | Nominal Sensitivity | Not Specified by Manufacturer | | Impedance | Not Specified by Manufacturer | | Crossover | Not Specified by Manufacturer | | Directivity | 90° x 70° | | Low Frequency Driver | 15" (38 cm), 2.5" (6.3 cm) voice coil | | High Frequency Driver | 1.0" (2.5 cm) exit, 1.4" (3.5 cm) voice coil | | Enclosure Material | Plywood with PVC cover

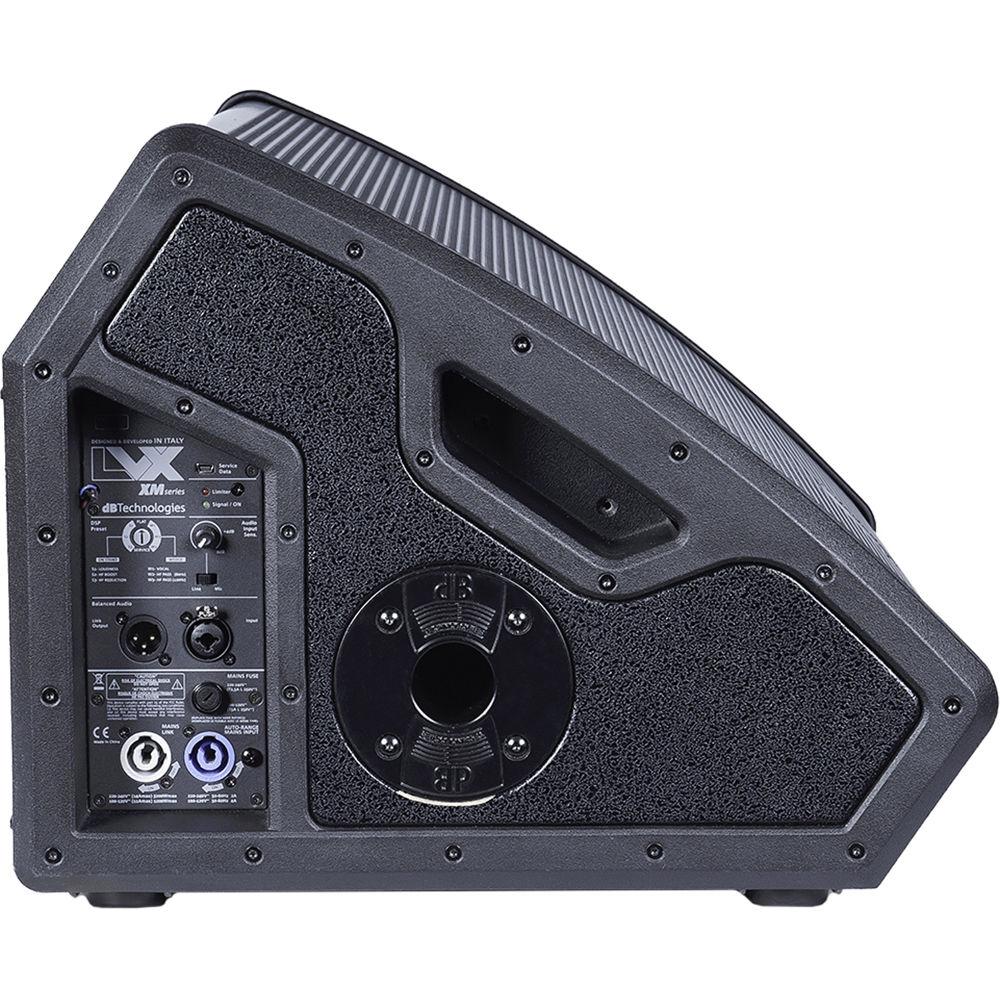

Metal grille | | Input Connections | Mains Connections: PowerCON in/link
Signal Input: 1 x Combo In (XLR/Jack)
Signal Output: 1 x XLR link Out
USB connector Mini USB B-type (service only) | | Power Supply | SMPS with PSU Auto-range | | Power Connection Type | PowerCon In/Link | | Cooling | Convection | | Processor | Controller: DSP 56-bit
Converter AD/DA: 24-bit/48 kHz
System Presets: 8
Limiter: Peak, RMS, Thermal
Processing (filters): FIR linear phase
Controls: Rotary 8 positions, MIC/LINE switch | | Handles | 2, chassis integrated | | Pole Mount | D36 mm | | Dimensions | 25 x 18 x 15" (64 x 46 x 37 cm) | | Weight | 49.2 lb (22.3 kg) | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 29.0 x 21.5 x 17.5" |
