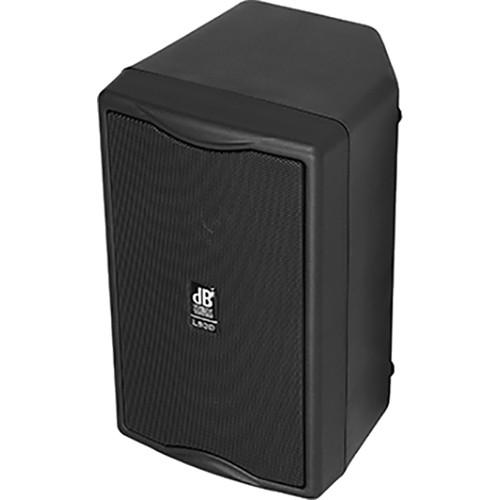

User Manual for dB Technologies MINIBOX L80D 2-Way Active Speaker Click to enlarge the picture
Contents of the user manual for the dB Technologies MINIBOX L80D 2-Way Active
- Product category: Installed Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies Installed Speakers
 |
User manual for the dB Technologies MINIBOX L80D 2-Way Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

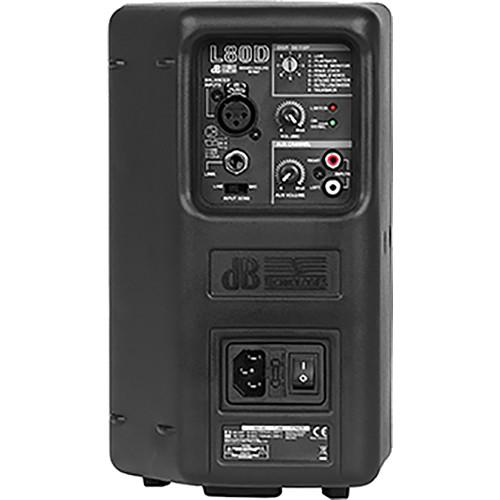

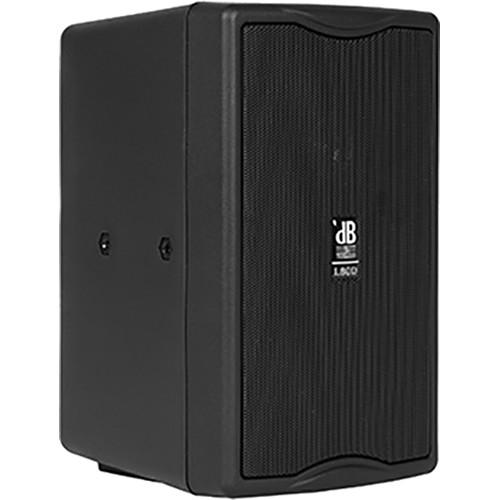

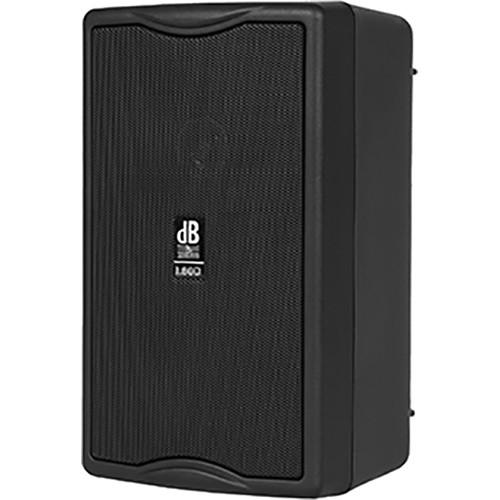

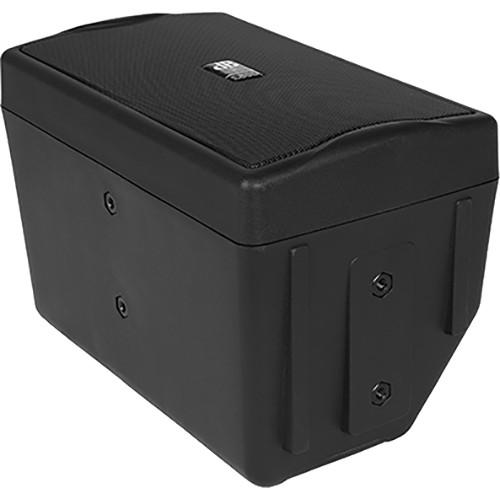

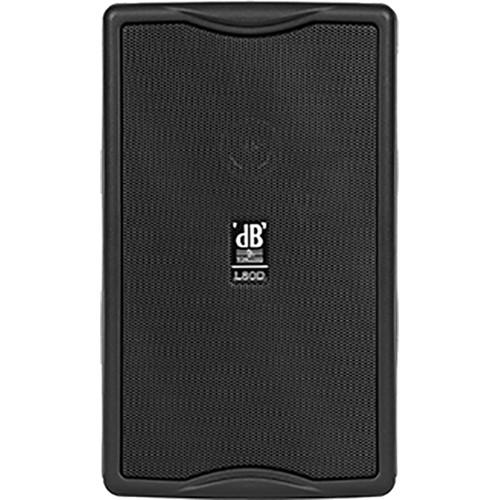

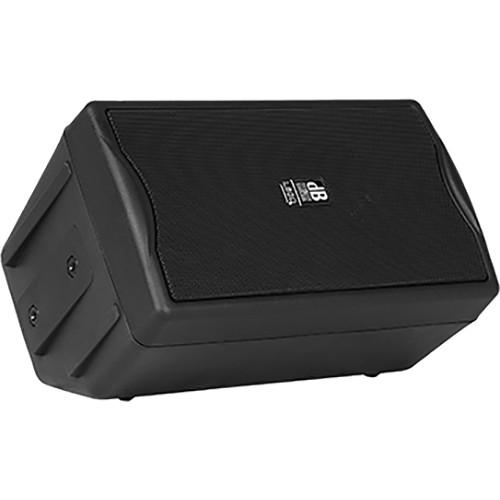

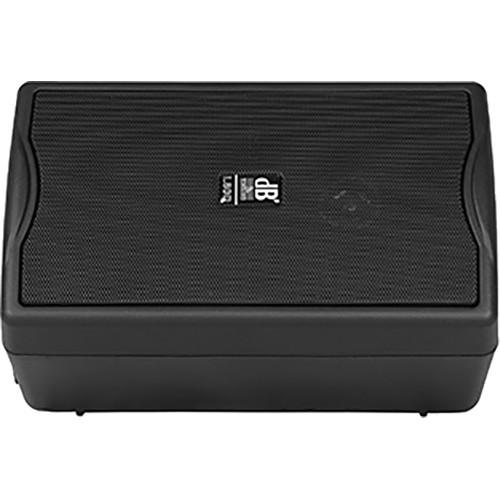

Product description The MINIBOX L80D 2-Way Active Speaker from dB Technologies is a compact, high-performance speaker featuring two 4" phase-corrected woofers - one of them with a coaxial dome tweeter - and an 80W amplifier. The L80D is recommended for musical and multimedia applications in which a small-format yet powerful speaker is needed. Threaded holes on the side and the bottom allow mounting the speaker to a bracket. Alternatively, the L80D can be used in a 45° rest position as a monitor. In the Box dB Technologies MINIBOX L80D 2-Way Active Speaker (80W) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies MINIBOX L80D 2-Way Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies L 80D Specs | Power | 80 W | | Peak Power | 160 W | | Input Impedance | Balanced, Line/Mic: 30 kOhms /600 Ohms
Unbalanced, Line/Mic:15 kOhms / 300 Ohms | | Frequency Response | 104 Hz - 20 kHz @ -6 dB
90 Hz - 20 kHz @ -10 dB | | SPL | 112 dB | | Directivity | 85 x 75 ° | | Driver | HF: 1" Dome tweeter, coaxial

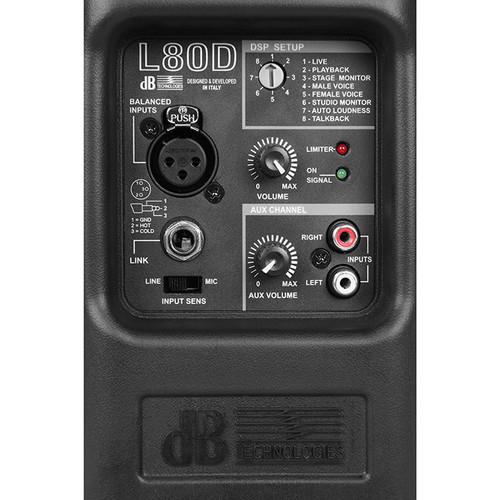

LF: 2 x 4" Woofer | | Amplifier Class | Class-D | | Cooling | Convection | | DSP | 24-bit/48 kHz | | Connectors | XLR, line/microphone input
6.3 mm phone jack, input
6.3 mm phone jack, output
RCA, AUX input
VDE socket, power input | | Power Supply | 110-120 VAC, 220-240 VAC, 600 mA | | Material | Housing: Polypropylene PP | | Dimensions | 6.1 x 10.4 x 9.1" (15.2 x 26.4 x 23.1 cm) | | Weight | 8.3 lb (3.62 kg) | | | | Package Weight | 10.9 lb | | Box Dimensions (LxWxH) | 13.3 x 9.7 x 8.8" |
