User Manual for dB Technologies RDNet CONTROL 8 Master Control Unit for DVA Network Software Click to enlarge the picture
Contents of the user manual for the dB Technologies RDNet CONTROL 8 Master
- Product category: System Processors dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies System Processors
|
User manual for the dB Technologies RDNet CONTROL 8 Master contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

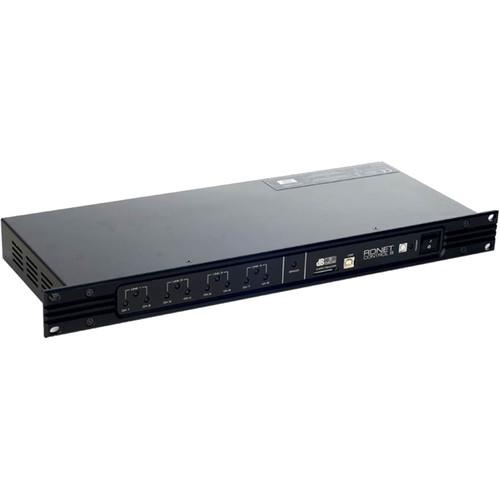

Product description The RDNet CONTROL 8 Master Control Unit for DVA Network Software from dB Technologies is a hardware interface designed for connecting devices compatible with dB Technologies RDNet System to a personal computer through an Ethernet or USB connection. The RDNet System uses a proprietary serial protocol especially developed to create a data network, which can remotely manage up to 256 compatible devices.The CONTROL 8 Unit can manage up to 8 subnets. Each subnet handles up to 32 devices, so it is possible to control a maximum of 256 devices managed by this protocol connected with RJ45-RJ45 cables or XLR-XLR balanced audio cables. The addressing of each device is automatically handled by the CONTROL 8 Interface during the power-on procedure of the network. The operation of the network is managed by DVA NETWORK application (for Windows operating systems) and allows you to check the operating of each device connected to the network and edit its parameters, output level, mute, equalization, delay, and more.The configuration of the entire network and each device can be saved as a single file in the PC or in an SD card and later recalled. The RDNet is a real-time system, meaning that all information related to the functioning of each device is acquired in real-time, a function to constantly monitor all components of the sound system during performance. The rear panel includes 8 pairs of RJ45 / XLR connectors (one pair for each subnet), an Ethernet port for connecting to the PC, and a Powercon mains socket.On the front panel there is an SD card reader through which the user can store and recall any configuration file. A USB port directly connects to PC for short distance, while for long distance you can use the Ethernet port provided on the rear panel. - General
-
- Hardware interface for RDNet devices with standard EIA RS-485
- Up to 8 subnets managed with maximum 32 devices for each subnet (256 total devices)
- Network connections through RJ45-RJ45
- Cat5 cables or XLR-XLR balanced audio cables (as alternative to RJ-45)
- PC connection through Ethernet (remote) or USB (local) sockets
- DVA NETWORK software manages real-time parameters like output level, mute, equalization, delay, and many more
- Applications
-
- Live sound for rental applications
- Portable PA, ballrooms, live theatres
- Fixed installations in clubs, theaters, houses of worship, and corporate A/V applications
In the Box dB Technologies RDNet CONTROL 8 Master Control Unit for DVA Network Software Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies RDNet CONTROL 8 Master Control Unit for DVA Network Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies RDNET CONTROL 8 Specs | Network | Standard EIA RS-485
Up to 8 managed subnet
Maximum 32 devices connected to each subnet | | Protocol | 8x RJ45 connectors (EtherCon) for Cat5 cable
8x XLR socket (as alternative to RJ45) | | PC Connection | Local: USB (B-type socket)
Remote: Ethernet (RJ45), alternative to USB | | Power Supply | operating Voltage: 100 to 240 VAC (full range), 50 to 60 Hz (automatic selection) | | Consumption | < 15 W | | Mains | Powercon (blue) | | Chassis Material | Pre-galvanized steel and painted | | Dimensions (W x H x D) | 19 x 1.7 x 7" (48 x 4.4 x 18 cm) 1 RU | | Weight | 4.4 lb (2.0 kg) | | | | Package Weight | 8.45 lb | | Box Dimensions (LxWxH) | 21.0 x 10.7 x 4.8" |
