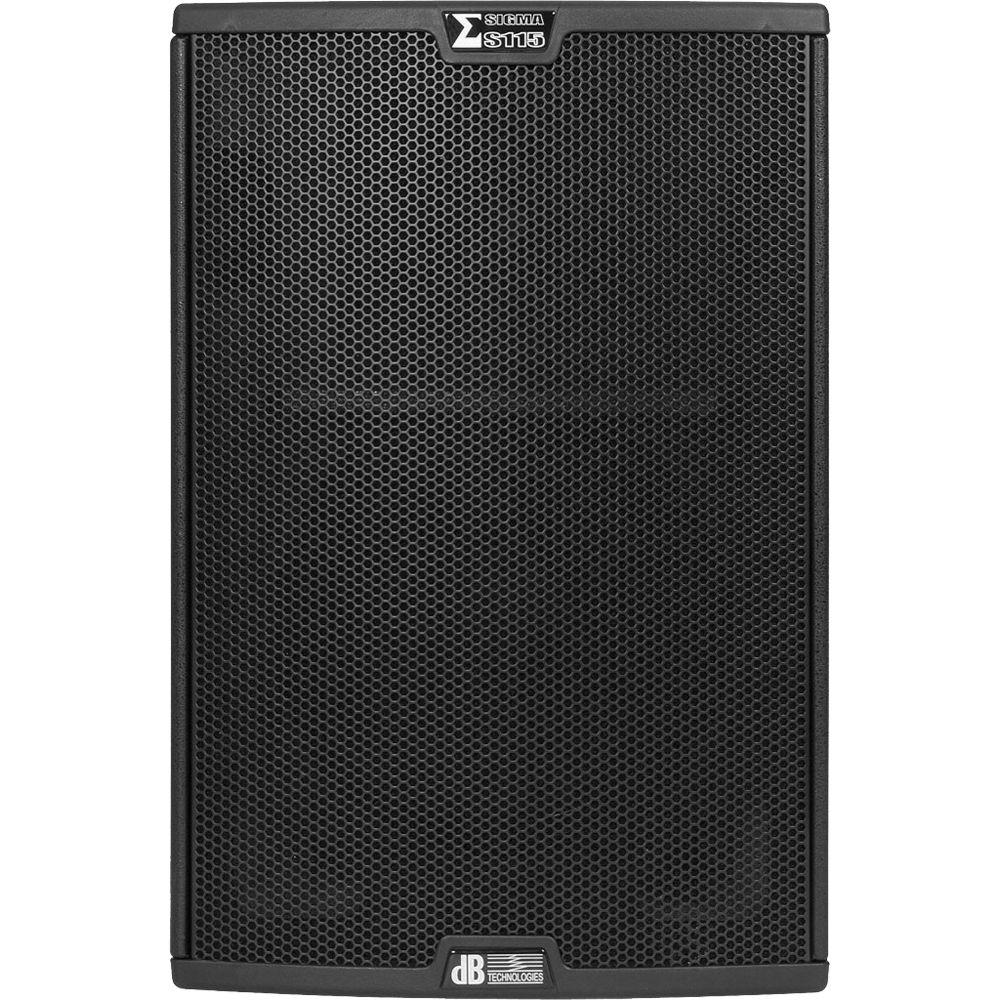

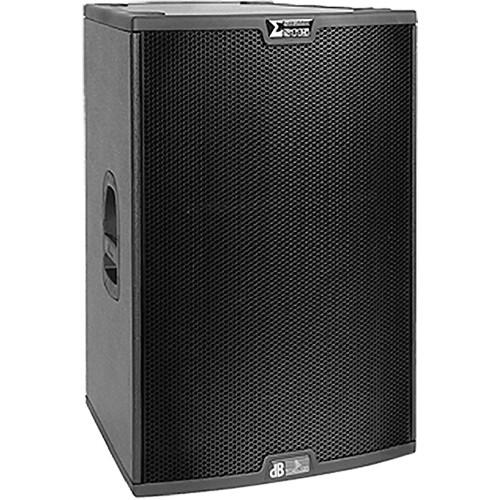

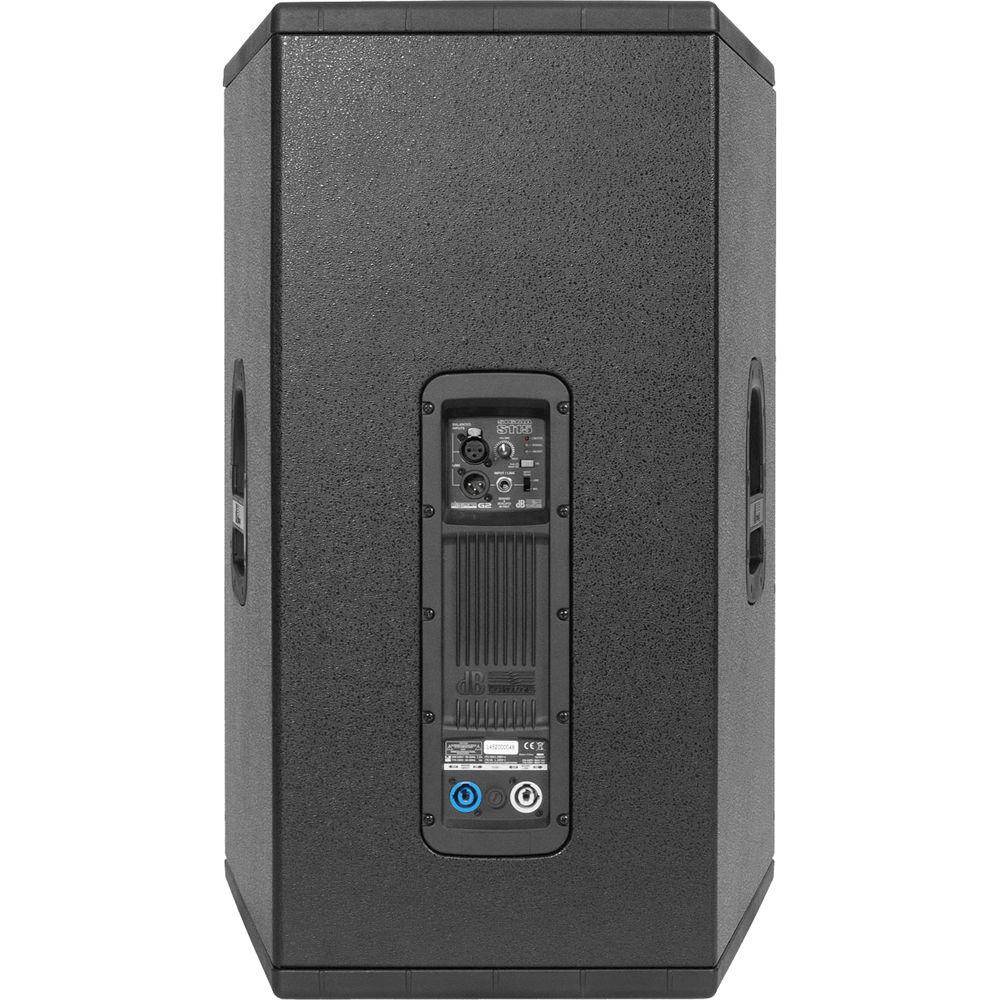

User Manual for dB Technologies SIGMA S115 1000W 15" 1.4" Active Speaker Click to enlarge the picture
Contents of the user manual for the dB Technologies SIGMA S115 1000W 15"
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies SIGMA S115 1000W 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|
Product description The dB Technologies SIGMA S115 is a 1000 watt 15" / 1.4" active two-way system that is designed to be used as a full-range FOH speaker. The S115 has been engineered to achieve an assertive midrange, prominent top end, and constant directivity at high sound pressure levels.
The integrated digital sound processor allows the final touches to be made to your sound, rounding it out to a warm, natural tone with powerful bass and accurate high frequencies. A variety of signal processing presets are designed to allow you to dial in your sound with minimal fuss. In the Box dB Technologies SIGMA S115 1000W 15" / 1.4" Active Speaker Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies SIGMA S115 1000W 15" 1.4" Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies SIGMA S115 Specs | Speaker Type | 2-way active speaker | | Frequency Response | 46 - 20,000 Hz | | Maximum SPL | 133 dB | | Drivers | HF: 1.4"
Type HF: titanium compression driver
Voice Coil HF: 2.8"
Directivity: 60 x 40°
Horn: CD horn
Rotatable Horn: YES
LF: 15"
Voice Coil LF: 3" | | Amplifier | Amp Technology: Digipro G2
Amp Class: Class D
Power PRG: 1000 W
Peak Power: 2000 W | | Processor | Controller: DSP 24-bit/48 kHz
System Presets: Flat, boost
Limiter: Dual active peak, RMS, thermal
Crossover Frequency MF - HF: 1100 Hz
Slope MF - HF: 24 dB/octave | | Housing | Multiplex with H.E.T coating, reinforced | | Dimensions | 20.36 x 30.60 x 21.32" (509 x 765 x 533 mm) | | Weight | 72.75 lb (33 kg) | | | | Package Weight | 75.0 lb | | Box Dimensions (LxWxH) | 33.5 x 24.0 x 23.0" |
