User Manual for dB Technologies Sigma S218 2700W Active Dual 18" Subwoofer Click to enlarge the picture
Contents of the user manual for the dB Technologies Sigma S218 2700W Active
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies Sigma S218 2700W Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

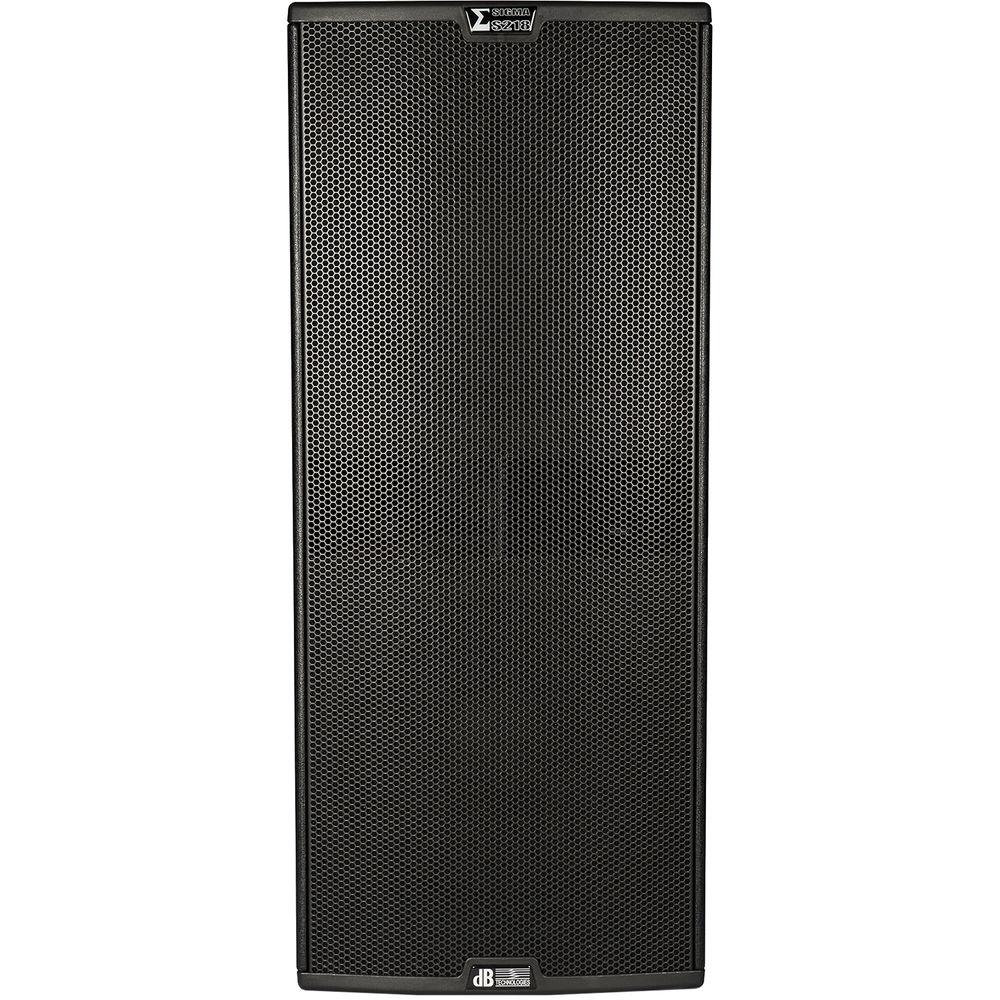

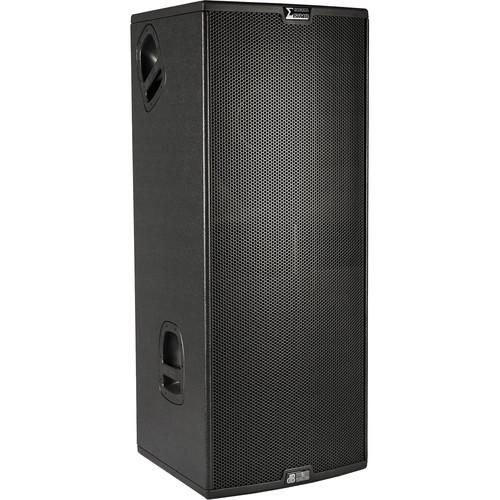

Product description The Sigma S218 2700W Active Dual 18" Subwoofer by dB Technologies is equipped with 2 x 18" woofers and a Class-D 2700W peak power amplifier. It is designed with a bass reflex enclosure to reinforce the overall bass output for live and installation applications.

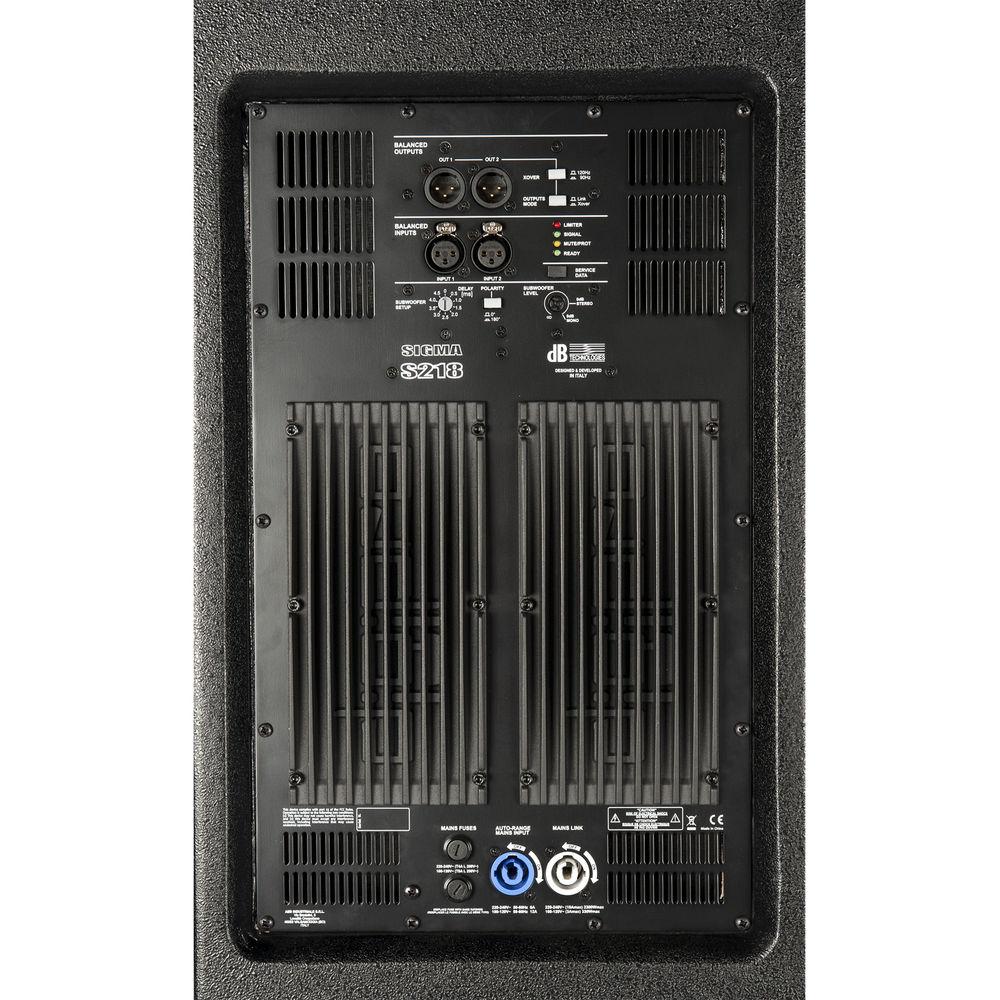

The Sigma S218 features dual XLR inputs and outputs that allow for mono or stereo configurations. The subwoofer also provides on-board phase and delay controls as well as dedicated DSP controls that allow you to configure the system to make the most of your subwoofer.
LED indicators provide you with visuals for a power protection circuit and audio presence through the speaker. You can create speaker stacks with this sub using a dB Technologies base accessory (sold separately). In the Box dB Technologies Sigma S218 2700W Active Dual 18" Subwoofer powerCON Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies Sigma S218 2700W Active Dual 18" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies SIGMA S218 Specs | Speaker Type | Active Bass Reflex Subwoofer | | | | Frequency Response | 42 to 120 Hz | | Max SPL | 138 dB | | Directivity | Omnidirectional | | Low Frequency Driver | 2 x 18" / 45.7 cm | | Voice Coil Diameter | 4" / 101.6 mm | | | | Amplifier Technology | Digipro G3 | | Amplifier Class | Class-D | | Peak Power | 3600 W | | RMS Power | 1800 W | | | | Controller | Analog / Digital | | Limiter | Peak, RMS, Thermal | | Crossover Frequency | 90 to 100 Hz Switchable (24 dB/Oct.) | | Crossover Slope | 24 dB / Octave | | User Interface Control | Subwoofer Level, Subwoofer Setup (Delay, Polarity), Xover, Outputs Mode | | | | Input | 2 x Balanced XLR Female
1 x powerCON | | Outputs | 2 x Balanced XLR Male LINK
1 x powerCON | | | | Housing | Plywood | | Handles | 2 x Each Side | | Power Specifications | 110 - 120 VAC, 4 A | | Dimensions (W x H x D) | 20.4 x 47.8 x 20.9" / 509 x 1215 x 533 mm | | Weight | 131.8 lb / 59.8 kg |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
