User Manual for dB Technologies SUB 18H Semi Horn-Loaded Active Class-D Subwoofer Click to enlarge the picture
Contents of the user manual for the dB Technologies SUB 18H Semi Horn-Loaded
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies SUB 18H Semi Horn-Loaded contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

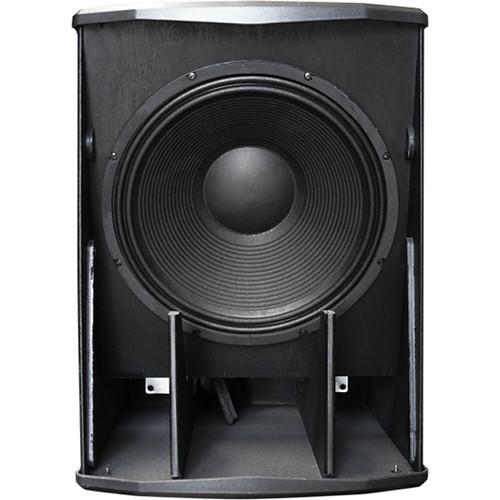

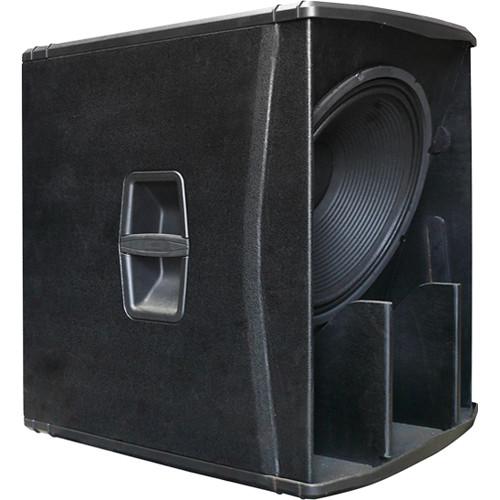

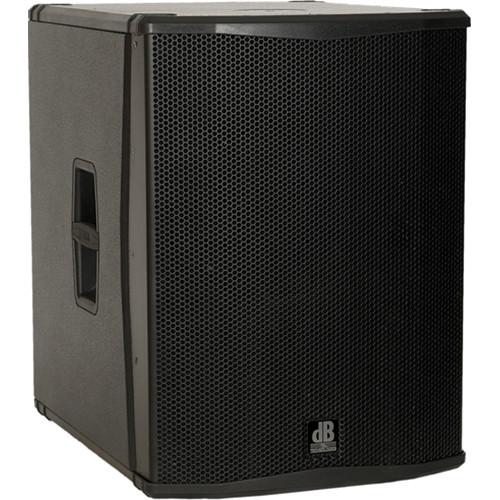

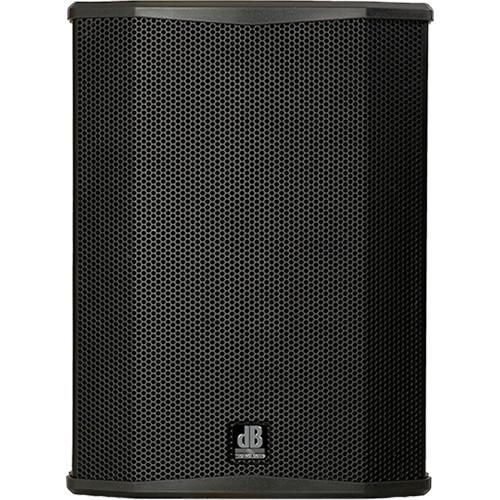

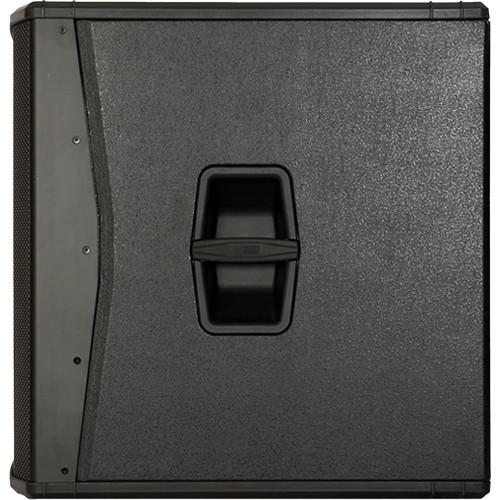

Product description The black SUB 18H Semi Horn-Loaded Active Class-D Subwoofer from dBTechnologies features a 18" woofer with a 4" voice coil, driven by a high-efficiency Digipro G3 Class-D digital amplifier with 1500W program and 2000W peak power. Thanks to the hybrid horn-loading configuration, the woofer can be tuned to the lowest frequencies, improving system efficiency and providing a deep, enveloping sound—even at close listening distance—which makes it suitable for small venues. The SUB 18H Subwoofer offers stereo inputs with selectable link or crossover outputs, a crossover frequency switch at 90 or 120 Hz, a phase-inversion switch, and built-in delay up to 4.5 ms, which is adjustable in 0.5 ms steps. It features delay control that allows sound-alignment between the subwoofer and speaker. It also feature a mini USB Type-B port to update system firmware and retrieve a telemetry log file that provides information on abnormal events, usage time, and amplifier status. The unit uses SMPS technology auto-ranging digital power supply that allows operation on 110 or 220 VAC. The 28-/56-bit DSP with 24-bit/48 kHz A/D conversion allows you to control the audio crossover of the acoustic components, frequency response, limiter, and phase alignment. The unit's Hybrid Enclosure Technology housing features a birch plywood cabinet coated with PVC, aluminum heavy-duty handles for easy transportation, and polypropylene edges that protect it from scratching or impacts during transport. The subwoofer can be pole mounted using the M20 threaded mount plate on the top of the cabinet. Main Highlights - Active semi horn-loaded subwoofer
- 1000W Digipro G3 Class-D digital amplifier
- 28-/56-bit DSP with 24-bit/48 kHz A/D conversion
- Crossover frequency of 90 or 120 Hz, 24 dB/Octave
- SMPS with auto-ranging power supply unit for 110 or 220 VAC operation
- Delay switch up to 4.5 ms (step of 0.5 ms)
- PVC-coated birch plywood cabinet
- Standard M20 pole-mount plate on the top of the cabinet
Applications - Suitable for music playback and sound reinforcement for small and mid-sized venues like clubs, ballrooms, live theater, houses of worship, retail, restaurants/bars, corporate events
- Used with portable PA systems
- Used with the audio-visual systems in small-sized venues
In the Box dB Technologies SUB 18H Semi Horn-Loaded Active Class-D Subwoofer (18", Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies SUB 18H Semi Horn-Loaded Active Class-D Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies SUB-18H Specs | Type | Semi horn-loaded active subwoofer | | Frequency Response | 35 to 120 Hz (-6 dB)
28 to 150 Hz (-10 dB) | | Maximum Sound Pressure Level (SPL) | 134 | | Directivity | Omnidirectional | | Driver | 18" (46 cm) woofer with 4" (10.1 cm) voice coil | | Amplifier | Amp Technology: Digipro G3
Amp Class: Class-D
Power PRG: 1500 W
Peak Power: 2000 W
Power Supply: 1000 W SMPS with PSU auto-range (110 and 220 V) | | Controller | 28-/56-bit DSP | | AD/DA Conversion | 24-bit / 48 kHz | | Limiter | Dual Active, RMS / Peak, Thermal | | Crossover Frequency | 90, 120 Hz | | Crossover Slope | 24 dB/Octave | | Controls | Crossover frequency selection
Delay switch up to 4.5 ms
Phase inversion switch
Outputs mode switch (Link/Crossover)

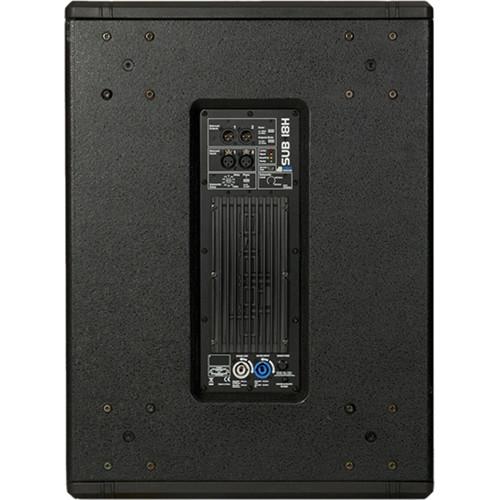

Mini-USB type-B port (service data) | | Connectors | Signal Input: 2 x XLR
Signal Output: 2 x XLR Crossover out / Link out | | Housing | Birch plywood, black PVC cover | | Dimensions (W x H x D) | 20.6 x 28.0 x 27.4" (52.4 x 71.1 x 69.5 cm) | | Weight | 91.3 lb (41.4 kg) | | | | Package Weight | 108.25 lb | | Box Dimensions (LxWxH) | 31.5 x 31.0 x 24.0" |
