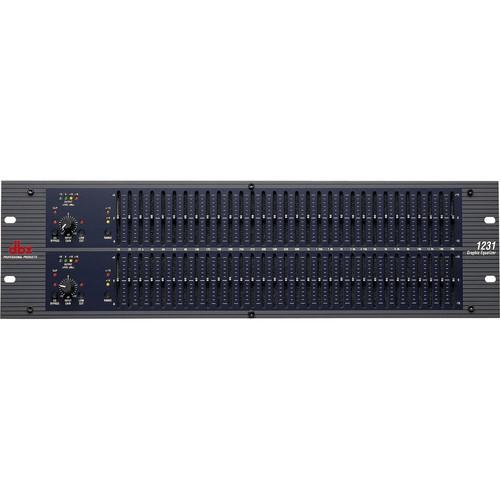

User Manual for dbx 1231 - Dual Channel 31-Band Graphic Equalizer with 6 or 15 dB Switchable Boost Cut and RF Filtered I O's Click to enlarge the picture
Contents of the user manual for the dbx 1231 - Dual Channel 31-Band
- Product category: Equalizers dbx
- Brand: dbx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dbx Equalizers
|
User manual for the dbx 1231 - Dual Channel 31-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dbx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dbx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dbx product will considerably shorten its lifespan!
|
Product description The 1231 is dual channel, 31 band 1/3 octave graphic equalizer. It was designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The sliders of the 1231 are 45mm center detent, with two selectable boost/cut ranges for precise gain adjustments. The unit features high pass filters with bypass, active balanced input and output connections, chassis/signal ground lift capabilities for quick hum isolation and an internal power supply. Multiple input and output configurations are provided for ease of use. The XLR and 1/4" TRS connectors use active balanced, low noise circuitry, with the addition of barrier strips. The 1231 was precision engineered to provide years of maintenance-free operation in any application. The magnetically isolated transformer, RF-filtered inputs and outputs, and power-off hard-wire relay bypass with two second power up delay, ensures compatibility with all types of installations. - Dual channel 31 band 1/3 octave graphic equalizer
- Switchable Boost/Cut range between +/-6dB and +/-15dB
- 45mm center detent sliders
- Variable input level controls
- Active balanced input and output connections
- RF filtered inputs and outputs
- Chassis/signal ground lift capability
UPC: 691991400049 In the Box dbx 1231 - Dual Channel 31-Band Graphic Equalizer with 6 or 15 dB Switchable Boost/Cut and RF Filtered I/O's Power Cable Two Year Warranty User Manual PDF 1.5mbyfexwbwffwdcdxybxu Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx 1231 - Dual Channel 31-Band Graphic Equalizer with 6 or 15 dB Switchable Boost Cut and RF Filtered I O's in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx 1231 Specs | Filter Type | Graphic | | Number of Channels | 2 | | Inputs | 2 x XLR, 2 x 1/4" TRS phone, barrier strip | | Output | 2 x XLR, 2 x 1/4" TRS phone, barrier strip | | Maximum Input Level | +21dBu | | Frequency Bands | 31 x 2, ISO spacing | | Bandwidth | 1/3 octave | | Range (Boost/Cut) | +/-6dB or +/-15dB selectable | | Maximum Output Level | +21dBu | | Frequency Response | 10Hz to 50kHz | | Dynamic Range | 115dB | | Noise | -97dBu | | Dimensions | 3U rack, 7 15/16" deep | | Specialties | Power-off hardwire relay bypass with 2-second power-up delay | | | | Package Weight | 13.84 lb | | Box Dimensions (LxWxH) | 22.5 x 11.5 x 7.6" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
