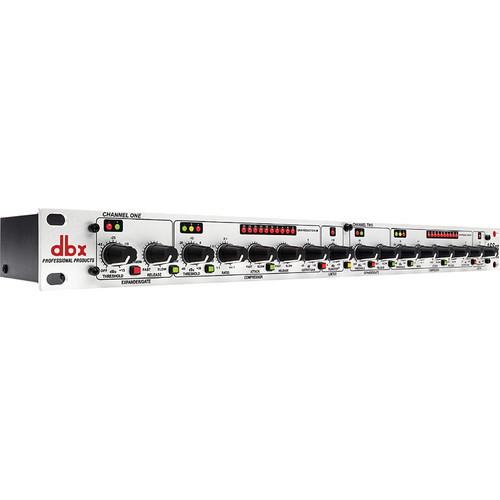

Product description The 166xs from dbx is a dual-channel compressor/gate/limiter that when added to a live sound rig or studio, will deliver more polished, professional sound. The unit can function either as a stereo processor or in dual mono mode and features all the usual controls required for this kind of processor.The unit provides the ability to smooth out uneven levels, add sustain to guitars and fatten up drums. It also makes it easy to bring vocals to the front of a mix. The PeakStop limiter helps protect expensive amplifiers and speakers by providing an absolute ceiling for peak excursions or large transients that could damage the equipment.For simplified operation the 166xs features Overeasy compression technology for smooth and musical performance, while the exclusive AutoDynamic attack and release controls puts great sound within easy reach. The processor has true RMS power summing and features quality input and output connectors. Comprehensive visual feedback is provided by gain reduction metering and backlit switches. - Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums, or tighten up mixes
- New gate timing algorithms ensure the smoothest release characteristics
- Program-adaptive expander/gates
- PeakStop limiter provides an absolute ceiling for peak excursions or large transients for protecting downstream equipment
- Great sounding dynamics control for any type of program material

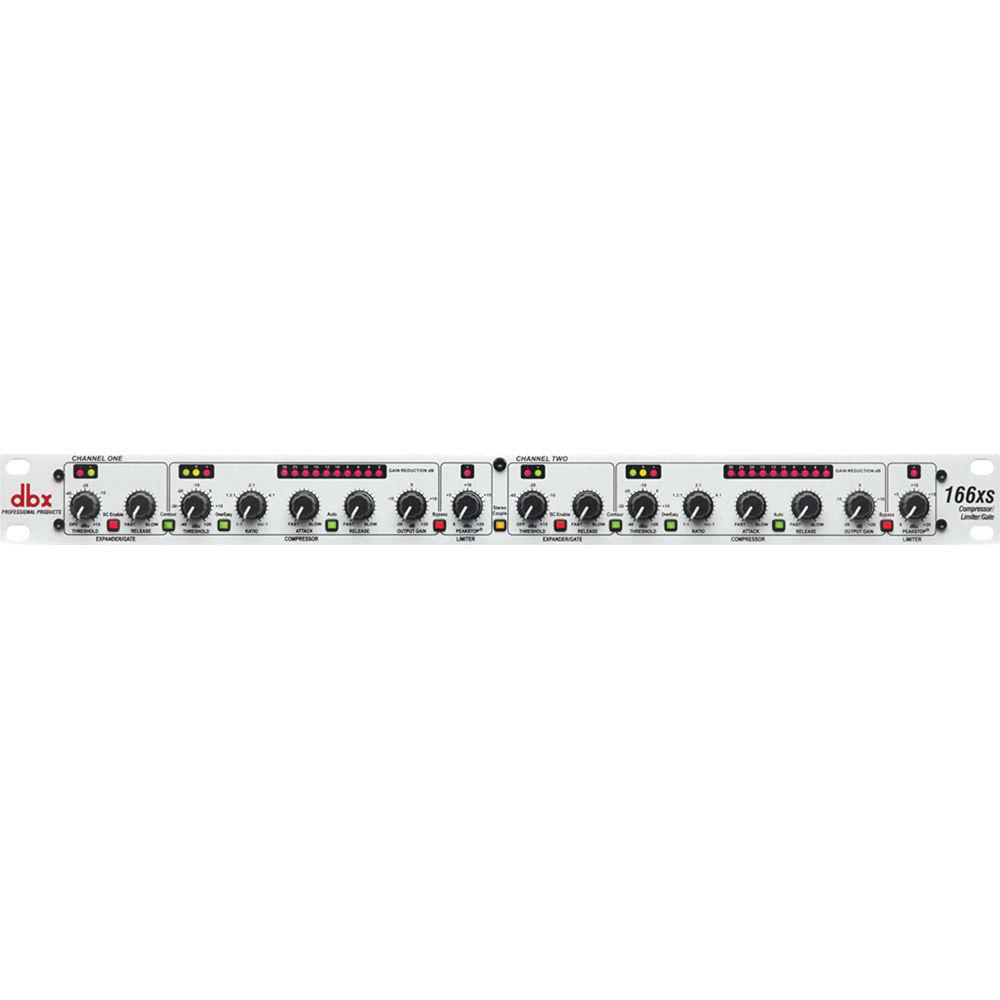

- Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
- Stereo or dual-mono operation
- Balanced inputs and outputs on 1/4" TRS and XLR connectors
UPC: 691991401268 In the Box dbx 166xs - Compressor/Limiter/Gate AC Power Cable Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx 166xs - Compressor Limiter Gate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx DBX166XSV Specs | Function | Compressor/limiter/gate | | Number of Channels | 2 | | Inputs | 2 x XLR (pin 2 hot)

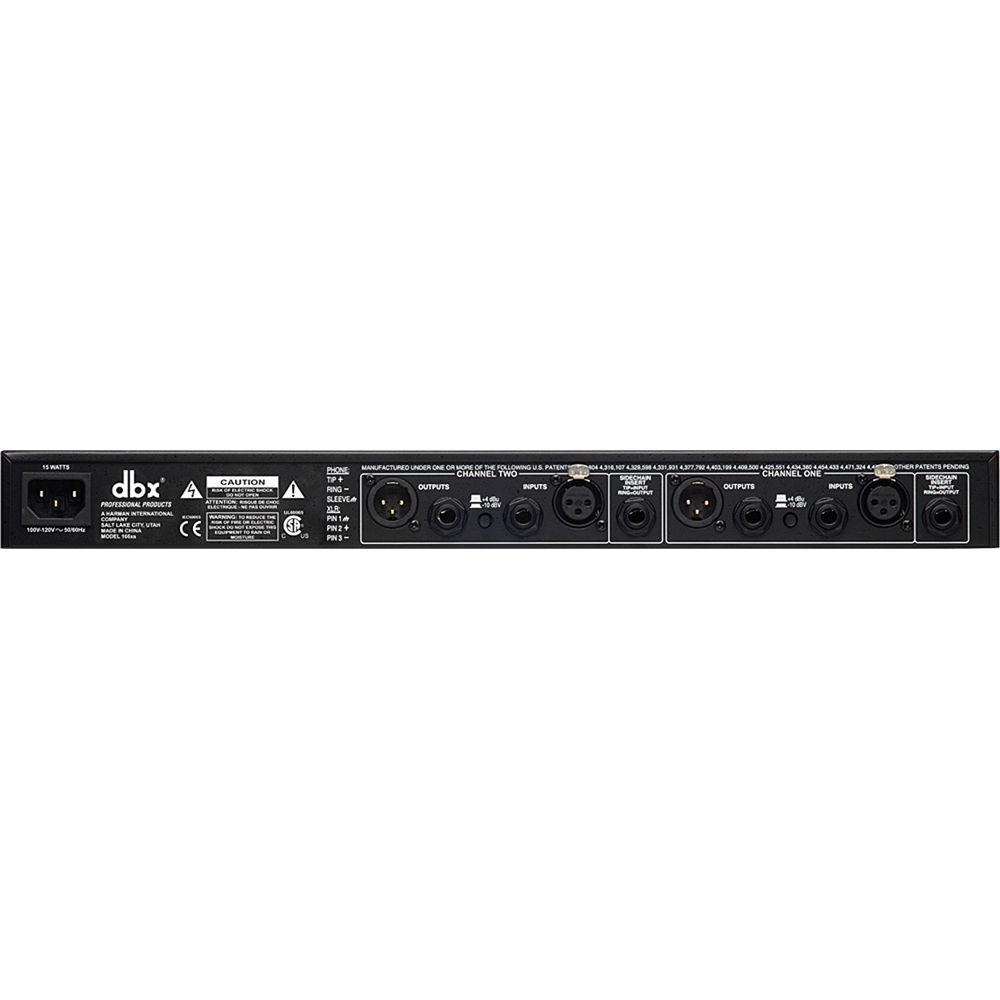

2 x 1/4" TRS phone Electronically balanced/unbalanced, RF filtered | | Input Impedance | >50kΩ balanced, >25kΩ unbalanced | | Maximum Input Level | >+24dBu, balanced or unbalanced | | Outputs | 2 x XLR(pin 2 hot)
2 x 1/4" TRS phone Electronically balanced/unbalanced, RF filtered | | Output Impedance | 120Ω balanced, 60Ω unbalanced | | Maximum Output Level | >+21dBu balanced/unbalanced into 2kΩ or greater
>+18dBm balanced/unbalanced into 600Ω | | Other Connectors | Side Chain
Type: 1/4" TRS phone, Normalled: Ring = Output (send); Tip = Input (return)
Impedance: Tip = >10kΩ (input), Ring = 2kΩ (output)
Maximum Levels: >+20dBu (tip/input and ring/output) | | Compression Threshold | -40dBu to +20dBu | | Compression Ratio | 1:1 to infinity:1, variable (60dB maximum compression) | | Attack Time | Variable program-dependent; 3mS to 340mS for 15dB gain reduction | | Release Time | Variable program-dependent; 200dB/Sec to 3dB/Sec | | Slope | OverEasy or hard knee, selectable | | Gate Threshold | OFF to +15dBu | | Ratio | 10:1 expansion | | Maximum Depth | >60dB | | Gate Rate | Attack: <500µSec (from maximum depth)
Release: 30mS to 3Sec adjustable, (to 30dB attenuation) | | Limiter Threshold Range | 0dBu to +20dBu | | Make-up Gain | -20dB to +20dB | | Frequency Response | 20Hz to 20kHz, +0/-0.5dB (typical 3dB points are 0.35Hz and 110kHz, unity gain) | | Dynamic Range | >115 dB, unweighted | | Noise | <-90dBu, 22Hz to 22kHz, no weighting, unity gain | | THD + N | <0.04% typical on any amount of compression up to 40dB @ 1kHz | | Crosstalk | <-80dB, 20Hz to 20kHz | | CMRR | >40dB, typical, >55dB @ 1kHz | | Operating Temperature | 32°F to 113°F (0°C to 45°C) | | Power Requirements | 100~120VAC 50/60Hz
15W maximum power consumption | | Dimensions (WxDxH) | 19 x 6.75 x 1.75" (483 x 172 x 45mm) | | Weight | 5.05 lb (2.29kg) | | Specialties | SMPTE IMD: <0.08% typical @ +10dBu (15dB gain reduction) | | | | Package Weight | 7.05 lb | | Box Dimensions (LxWxH) | 21.8 x 11.3 x 2.5" |
