dbx 2231 - Dual Channel 31-Band

Search your instruction manual in PDF to download

User Manual for dbx 2231 - Dual Channel 31-Band Graphic Equalizer Limiter with Type III Noise Reduction

Click to enlarge the picture
dbx 2231 - Dual Channel 31-Band Graphic Equalizer Limiter with Type III Noise Reduction Contents of the user manual for the dbx 2231 - Dual Channel 31-Band
  • Product category: Equalizers dbx
  • Brand: dbx
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for dbx Equalizers

User manual for the dbx 2231 - Dual Channel 31-Band contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any dbx product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official dbx user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a dbx product will considerably shorten its lifespan!



Product description

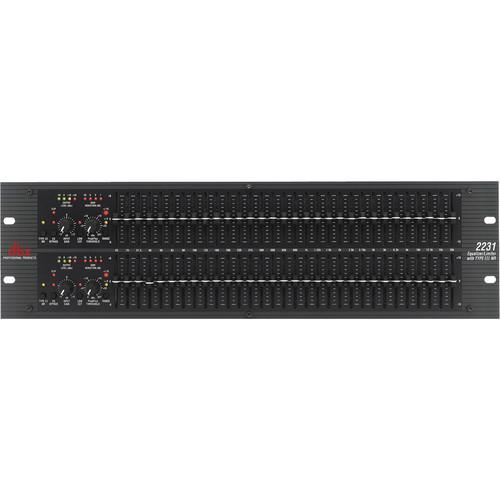

The 2231 is a dual channel, 31 band 1/3 octave graphic equalizer with a difference. In addition to the usual features such as 45mm center detented sliders with selectable boost/cut range, high pass filters, active balanced input and output connections, variable input level controls, clip level indicators, and internal power supply, the unit provides both built-in noise reduction, and peak limiting. The noise reduction is dbx's Type III, which can increases the signal to noise ratio of the 2231 by up to 20dB at the push of a button. For further enhancement, a PeakPlus limiter is included. Front panel 41-detent rotary controls vary the threshold of the limiter, while four-LED gain reduction bar graphs display the resulting effect of the process. Additionally, the unit has EQ bypass switches with LED indicator for each channel, is housed in an all-steel constructed 3U chassis, and is intended for installation in standard 19" equipment racks. The XLR and 1/4" TRS connectors use balanced, low noise circuitry, and barrier strips are provided for added convenience. The 2231 is designed to work with a variety of input signal levels and may be used in applications such as live sound, recording studios, instrument racks, as well as any conventional fixed installation environment.
  • Dual channel 31 band 1/3 octave graphic equalizer
    Type III Noise Reduction
  • Instantly encodes/decodes at the push of a button
    PeakPlus Limiter
  • With threshold range from 0dBu to +24dBu can transparently process the wildest hits or the subtlest nuances of any signal
  • High-pass filters
  • Selectable boost/cut range of 6dB or 15dB
  • Variable input level controls
  • Clip level indicators
  • Balanced and unbalanced input and output connections
UPC: 691991400117 In the Box dbx 2231 - Dual Channel 31-Band Graphic Equalizer/Limiter with Type III Noise Reduction
  • Power Cable
  • Two Year Warranty
  • User Manual PDF 1.7mb Table of Contents




    Upload User Manual

    Have you got an user manual for the dbx 2231 - Dual Channel 31-Band Graphic Equalizer Limiter with Type III Noise Reduction in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    dbx 2231 Specs

    Filter Type Graphic
    Number of Channels 2
    Inputs 2 x XLR, 2 x 1/4" TRS phone, barrier strip
    Output 2 x XLR, 2 x 1/4" TRS phone, barrier strip
    Maximum Input Level +21dBm
    Frequency Bands 31 x 2, 20Hz to 20kHz ISO spacing
    Bandwidth 1/3 octave
    Range (Boost/Cut) +/-6dB or +/-15dB selectable
    Maximum Output Level +21dBm
    Frequency Response 10Hz to 50kHz
    Dynamic Range >120dB unweighted, noise reduction in
    >112dB unweighted, noise reduction out (+/-6dB range)
    >108dB unweighted, noise reduction out (+/-15dB range)
    Noise >102dB unweighted, noise reduction in
    >94dB unweighted, noise reduction out (+/-6dB range)
    >90dB unweighted, noise reduction out (+/-15dB range)
    Dimensions 3U rack, 7 15/16" deep
    Specialties Graphic equalizer/limiter with Type III noise reduction
    Package Weight 13.95 lb
    Box Dimensions (LxWxH) 22.0 x 11.6 x 7.6"
