User Manual for dbx 223xs - Crossover Click to enlarge the picture
Contents of the user manual for the dbx 223xs - Crossover
- Product category: Crossovers dbx
- Brand: dbx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dbx Crossovers
 |
User manual for the dbx 223xs - Crossover contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dbx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dbx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dbx product will considerably shorten its lifespan!
|

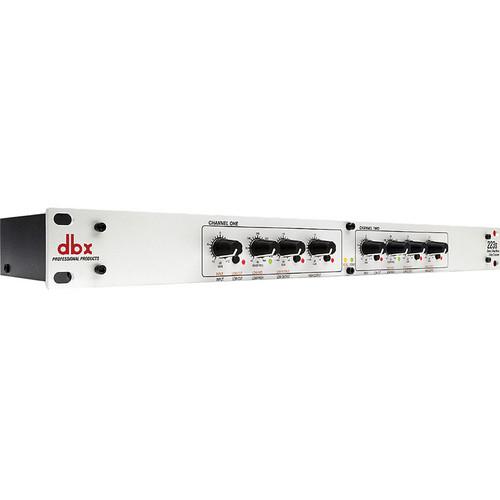

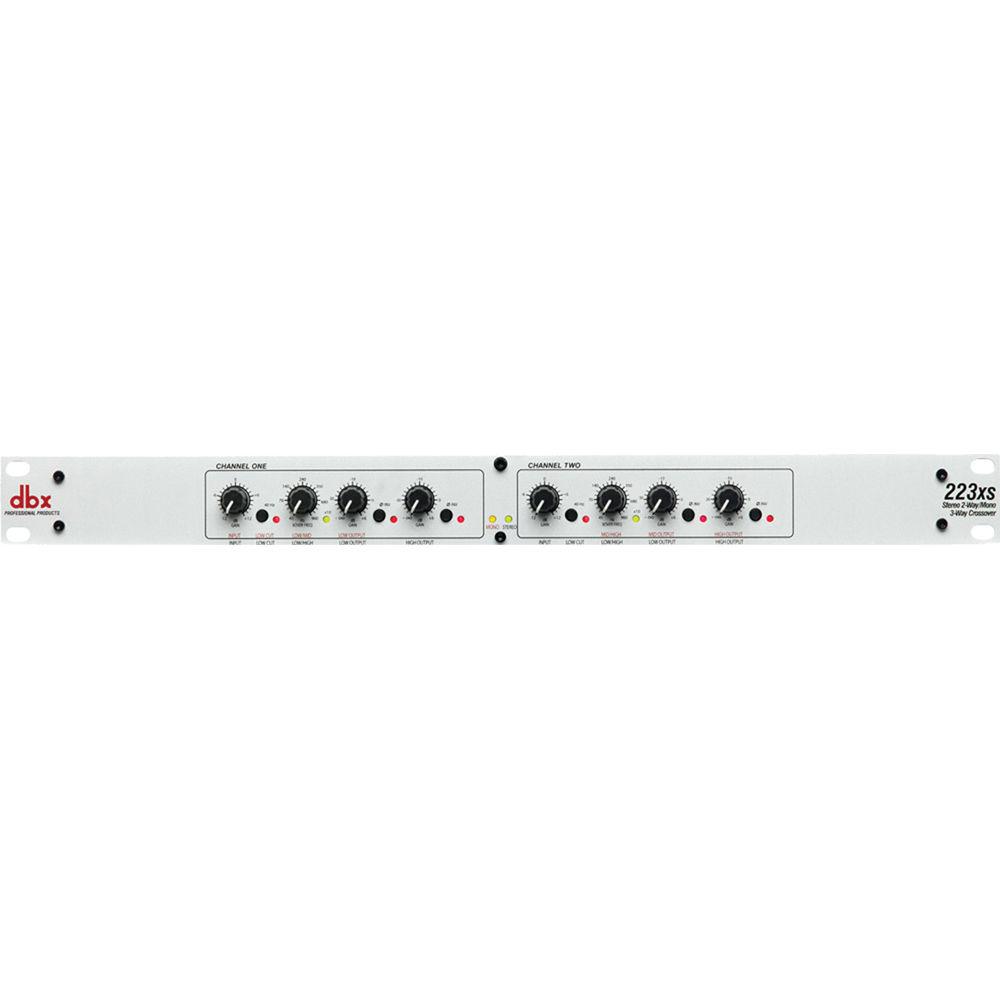

Product description The 223s from dbx is a dual channel, stereo 2-way or mono 3-way crossover. A crossover is essential for efficient PA operation because it filters the full band input signal into specific frequencies that match a speaker's optimum frequency-reproduction range. This leaves the amplifier free to use its full power on the usable signal, eliminating distortion and delivering clear sound. The unit features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Quality components and meticulous attention to detail offers exceptional sound and rugged reliability, while exuding great precision from the solid "click" controls to the high quality XLR inputs and outputs. - Stereo 2-way, mono 3-way crossover
- Mode switch for stereo 2-way or mono 3-way operation
- 24dB per octave Linkwitz-Riley filters
- Low frequency summed (subwoofer) output
- Range switch on both channels (x10)
- 40Hz high-pass (low-cut) filter on both channels
- Phase reverse switch on all outputs
- Individual level controls on all outputs
- Stereo/Mono status LEDs indicate the selected mode
- XLR balanced ins and outs
- CSA NRTL/C approved and CE compliant
UPC: 691991401275 In the Box dbx 223xs - Crossover (XLR) AC Power Cable Two (2) Year Warranty User Manual PDF 2.3mbdwqcvsbcwbywte Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx 223xs - Crossover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx 223xs Specs | Filter Type | Linkwitz-Riley, 24 dB/octave, state-variable | | Operating Modes | Stereo 2-way, switchable to mono 3-way | | Crossover Frequencies | Stereo Mode - Low/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Mono Mode - Low/Mid: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Mono Mode - Mid/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting) | | Inputs | 2 x XLR (pin 2 hot) Electronically balanced/unbalanced, RF filtered | | Input Impedance | 50kΩ balanced, 25kΩ unbalanced | | Maximum Input Level | >+22dBu balanced or unbalanced | | Outputs | 4 x XLR (pin 2 hot) Electronically balanced/unbalanced, RF filtered | | Output Impedance | 60Ω balanced, 30Ω unbalanced | | Maximum Output Level | >+20dBu balanced/unbalanced into 600Ω or greater | | Frequency Response | FR: <3hz to>90kHz, +0/-3.0dB
Bandwidth: 20Hz to 20kHz, +0/-0.5dB | | Dynamic Range | >106dB unweighted, any output | | Noise | SNR ref: +4dBu, 22kHz measurement bandwidth
Stereo Mode:
>94dB (low output)
>91dB (high output)
Mono Mode:
>94dB (low output)
>93dB (mid output)
>91dB (high output) | | THD + N | <0.004% @ +4dBu, 1kHz
<0.04% @ +20dBu, 1kHz | | Crosstalk | <-80dB, 20Hz to 20kHz | | CMRR | >40dB, typically >55dB @ 1kHz | | Switches | Low Cut (front panel)
Phase Invert (front panel)
x10 (rear panel)
Mode
LF sum | | Indicators | Stereo Operation
Mono Operation
Low Cut
x10
Phase Invert | | Operating Temperature | 32°F to 113°F (0°C to 45°C) | | Power Requirements | 100VAC~50/60Hz, 120VAC~60Hz
15W power consumption | | Dimensions (WxHxD) | 19 x 6.9 x 1.75" (483 x 175 x 45mm) | | Weight | 3.7 lb (1.7kg) | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 21.9 x 11.3 x 2.6" |
