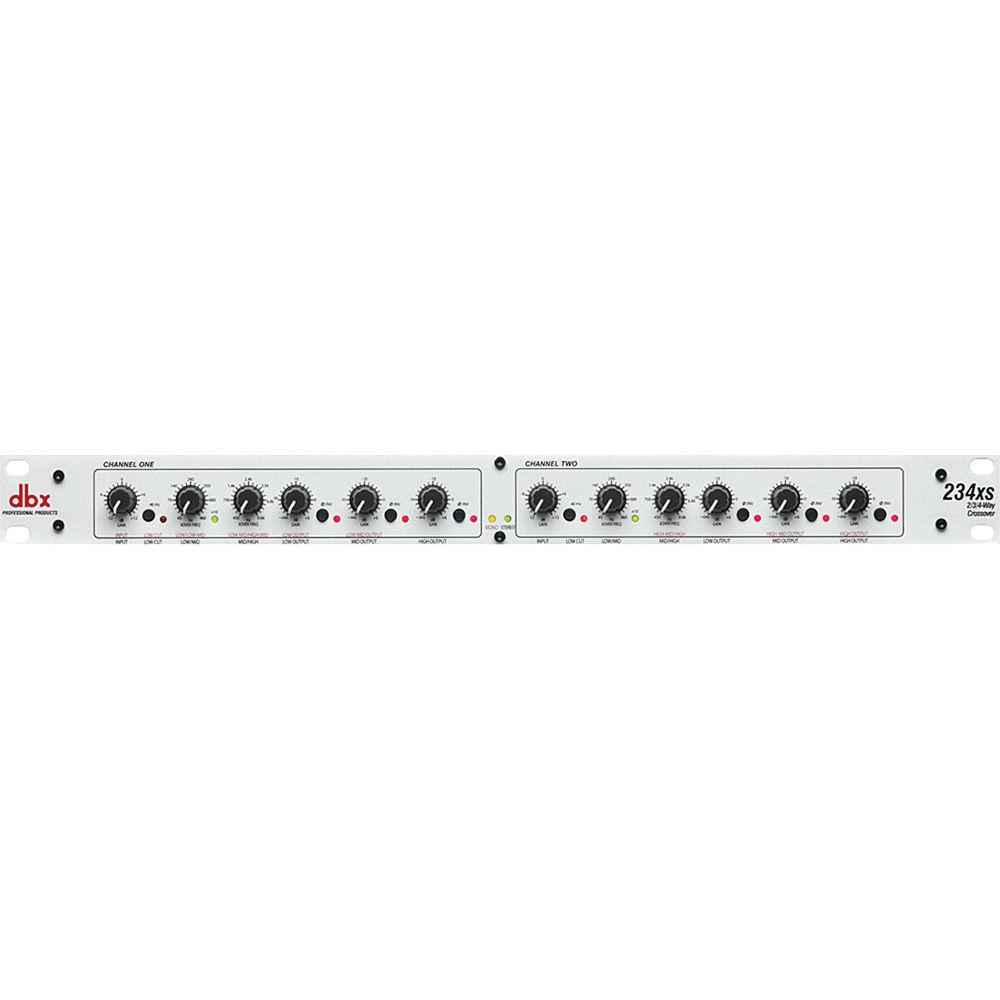

Product description The 234xs from dbx is a dual channel, stereo 2/3-way or mono 4-way crossover. A crossover is essential for efficient PA operation because it filters the full band input signal into specific frequencies that match a speaker's optimum frequency-reproduction range. This leaves the amplifier free to use its full power on the usable signal, eliminating distortion and delivering clear sound. The unit features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Quality components and meticulous attention to detail offers exceptional sound and rugged reliability, while exuding great precision from the solid "click" controls to the high quality XLR inputs and outputs. - Stereo 2/3-way, mono 4-way crossover
- Mode switch for stereo 2/3-way or mono 4-way operation
- 24dB per octave Linkwitz-Riley filters
- Low frequency summed (subwoofer) output
- Range switch on both channels (x10)
- 40Hz high-pass (low-cut) filter on both channels
- Phase reverse switch on all outputs
- Individual level controls on all outputs
- Stereo/Mono status LEDs indicate the selected mode
- XLR balanced ins and outs
- CSA NRTL/C approved and CE compliant
UPC: 691991401299 In the Box dbx 234xs - Crossover (XLR) AC Power Cable Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx 234xs - Crossover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx 234xs Specs | Filter Type | Linkwitz-Riley, 24 dB/octave, state-variable | | Operating Modes | Stereo 2/3-way, switchable to mono 4-way | | Crossover Frequencies | Stereo Mode - Low/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Stereo Mode - Low/Mid: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Stereo Mode - Mid/High: 450Hz to 9.6kHz
Mono Mode - Low/Mid: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Mono Mode - Mid/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting)
Mono Mode - High-Mid/High: 450Hz to 9.6kHz | | Inputs | 2 x XLR (pin 2 hot) Electronically balanced/unbalanced, RF filtered | | Input Impedance | 50kΩ balanced, 25kΩ unbalanced | | Maximum Input Level | >+21dBu balanced or unbalanced | | Outputs | 6 x XLR (pin 2 hot) Electronically balanced/unbalanced, RF filtered | | Output Impedance | 60Ω balanced, 30Ω unbalanced | | Maximum Output Level | >+20dBu balanced/unbalanced into 600Ω or greater | | Frequency Response | FR: <3hz to>90kHz, +0/-3.0dB
Bandwidth: 20Hz to 20kHz, +0/-0.5dB | | Dynamic Range | >106dB unweighted, any output | | Noise | SNR ref: +4dBu, 22kHz measurement bandwidth
Stereo Mode:
>94dB (low output)
>93dB (mid output)
>90dB (high output)
Mono Mode:
>94dB (low output)
>94dB (low/mid output)
>92dB (high/mid output)
>88dB (high output) | | THD + N | <0.004% @ +4dBu, 1kHz
<0.04% @ +20dBu, 1kHz | | Crosstalk | <-80dB, 20Hz to 20kHz | | CMRR | >40dB, typically >55dB @ 1kHz | | Switches | Low Cut (front panel)
Phase Invert (front panel)

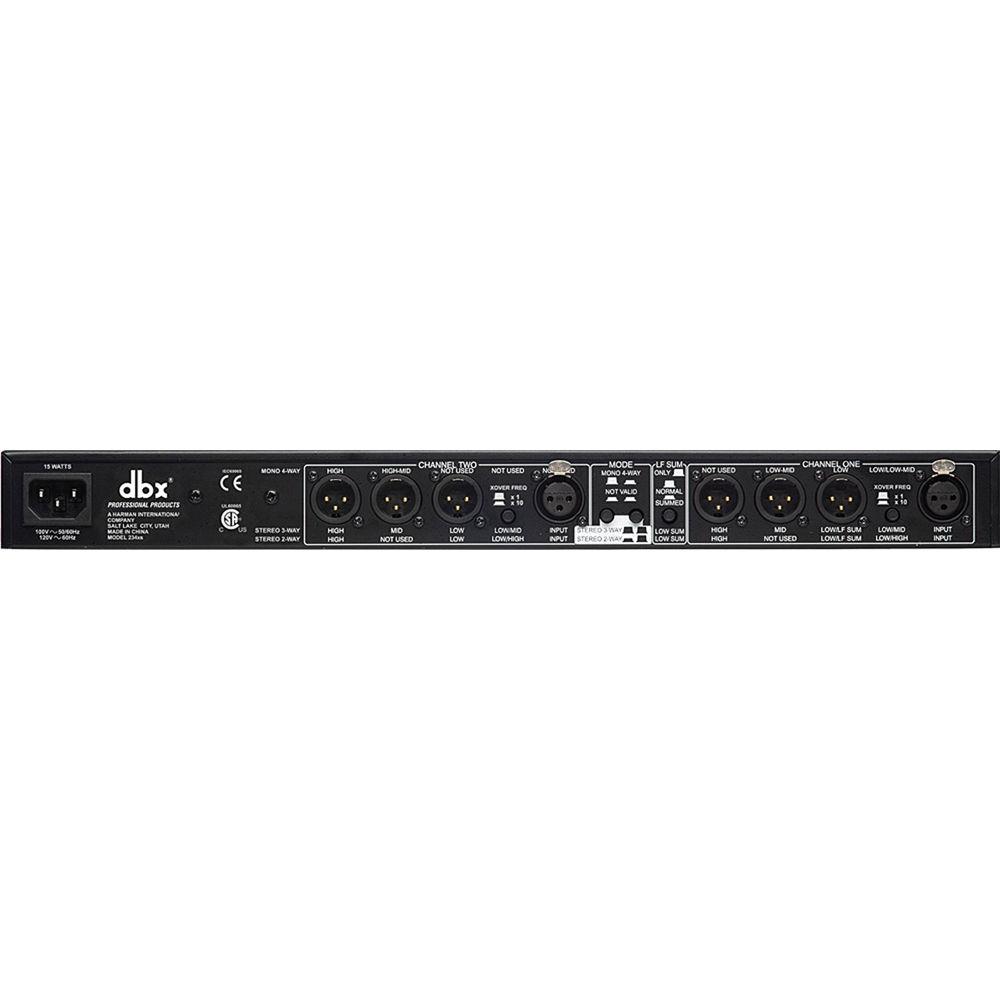

x10 (rear panel)
Mode (rear panel)
LF sum (rear panel) | | Indicators | Stereo Operation
Mono Operation
Low Cut
x10
Phase Invert | | Operating Temperature | 32°F to 113°F (0°C to 45°C) | | Power Requirements | 100VAC~50/60Hz, 120VAC~60Hz
15W power consumption | | Dimensions (WxHxD) | 19 x 6.9 x 1.75" (483 x 175 x 45mm) | | Weight | 4.0 lb (1.8kg) | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 22.0 x 11.3 x 2.6" |
