User Manual for dbx 266xs - Compressor Gate Click to enlarge the picture
Contents of the user manual for the dbx 266xs - Compressor Gate
- Product category: Dynamics Processors dbx
- Brand: dbx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dbx Dynamics Processors
 |
User manual for the dbx 266xs - Compressor Gate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dbx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dbx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dbx product will considerably shorten its lifespan!
|

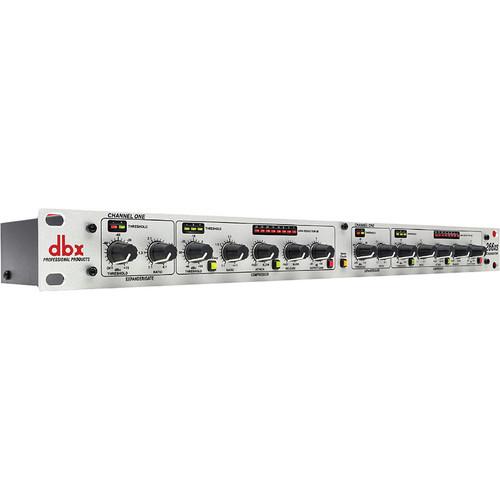

Product description The 266xs from dbx is a dual channel compressor/gate that when added to a live sound rig or studio, will deliver more polished, professional sound. The unit can function either as a stereo processor or in dual mono mode and features all the usual controls required for this kind of processor. The unit provides the ability to smooth out uneven levels, add sustain to guitars and fatten up drums. It also makes it easy to bring vocals to the front of a mix. For simplified operation the Overeasy compression technology returns smooth and musical performance, while the exclusive AutoDynamic attack and release controls puts great sound within easy reach. The processor has true RMS power summing and features quality input and output connectors. Comprehensive visual feedback is provided by gain reduction metering and backlit switches. - Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
- New gate timing algorithms ensure the smoothest release characteristics
- Program-adaptive expander/gates
- Great sounding dynamics control for any type of program material

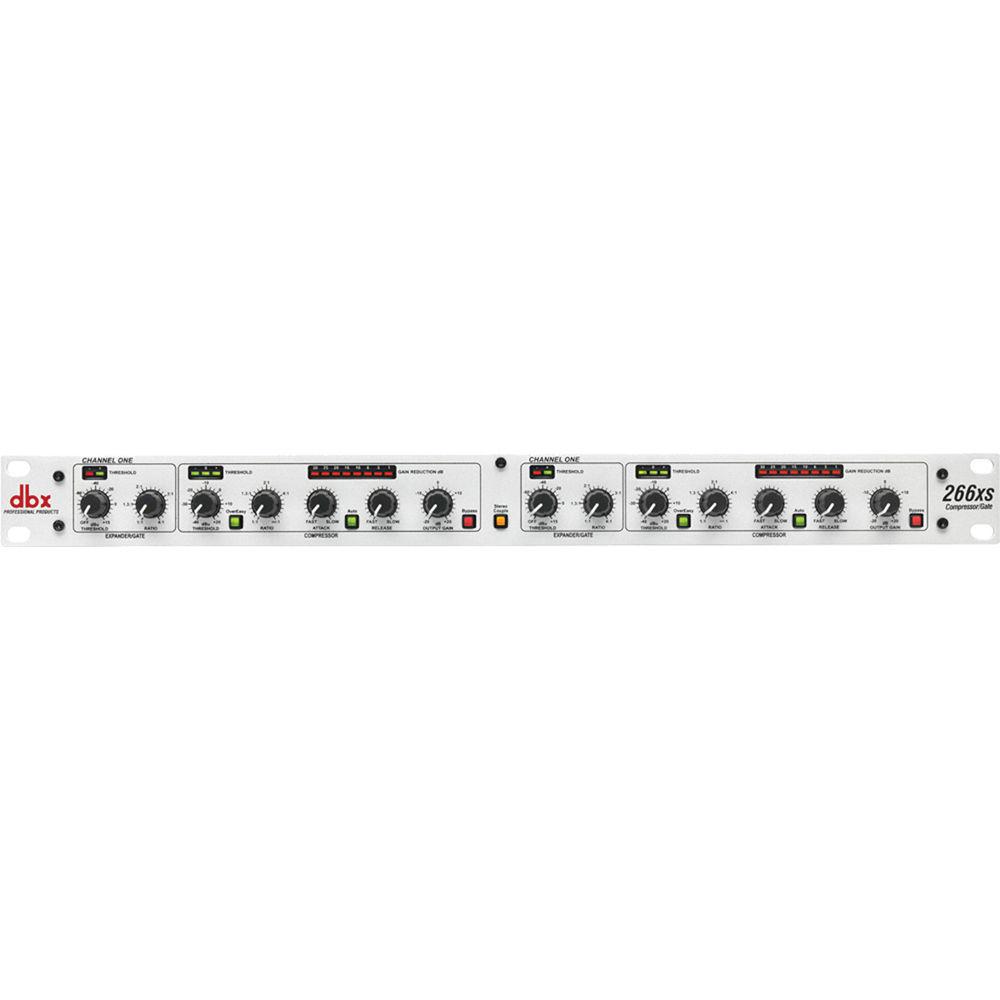

- Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
- Stereo or dual-mono operation

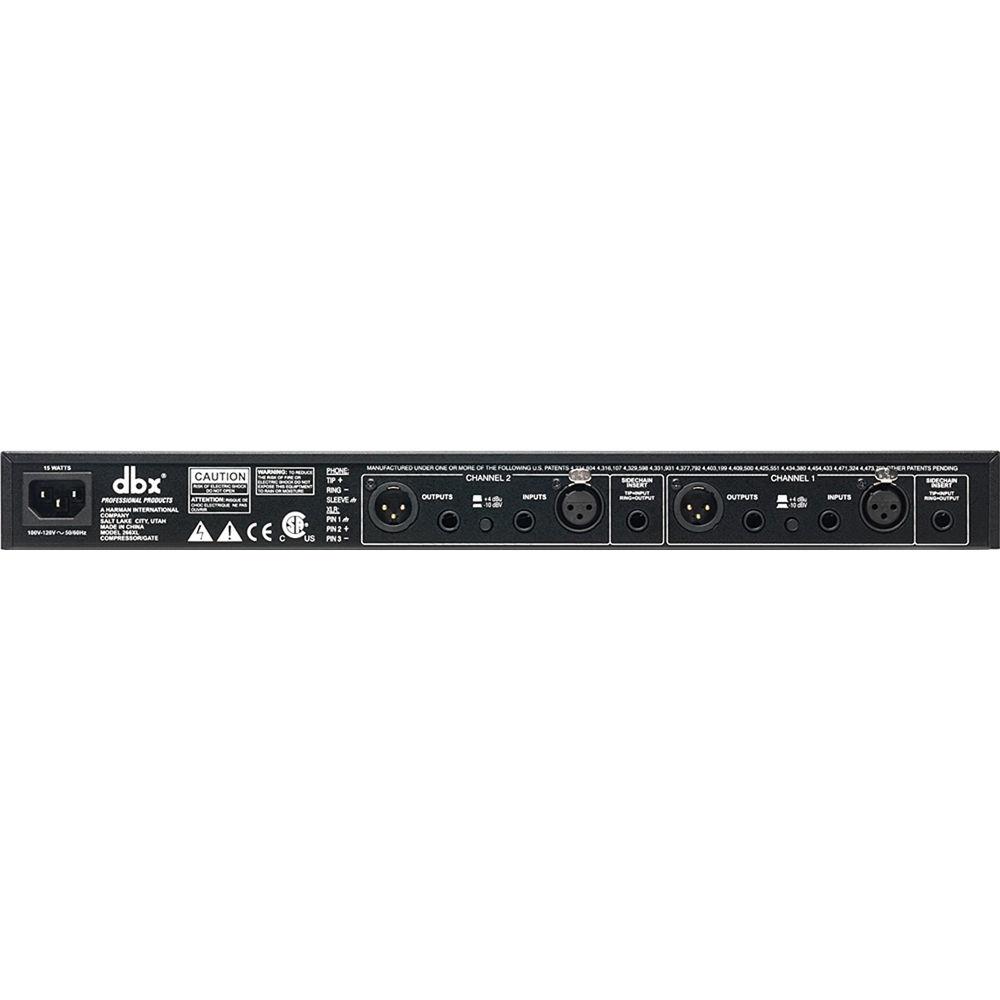

- Balanced inputs and outputs on 1/4" TRS and XLR connectors
UPC: 691991401244 In the Box dbx 266xs - Compressor/Gate AC Power Cable Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx 266xs - Compressor Gate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx DBX266XSV Specs | Function | Compressor/gate | | Number of Channels | 2 | | Inputs | 2 x XLR (pin 2 hot)
2 x 1/4" TRS phone Electronically balanced/unbalanced, RF filtered | | Input Impedance | >40kΩ balanced, >20kΩ unbalanced | | Maximum Input Level | >+22dBu, balanced or unbalanced | | Outputs | 2 x XLR(pin 2 hot)
2 x 1/4" TRS phone Electronically balanced/unbalanced, RF filtered | | Output Impedance | @ +4dBu: 100Ω balanced, 50Ω unbalanced
@ -10dB: 1kΩ balanced, 500Ω unbalanced | | Maximum Output Level | >+21dBu balanced/unbalanced into 2kΩ or greater
>+18dBm balanced/unbalanced into 600Ω | | Other Connectors | Side Chain
Type: 1/4" TRS phone, Normalled: Ring = Output (send); Tip = Input (return)
Impedance: Tip = >10kΩ (input), Ring = 2kΩ (output)
Maximum Levels: >+22dBu (tip/input), >+20dBU (ring/output) | | Compression Threshold | -40dBu to +20dBu | | Compression Ratio | 1:1 to infinity:1, variable | | Attack Time | Scalable program-dependent AutoDynamic | | Release Time | Scalable program-dependent AutoDynamic | | Slope | OverEasy or hard knee, selectable | | Make-up Gain | -20dB to +20dB | | Gate Threshold | -60dBu to +15dBu | | Ratio | 1:1 to 4:1 expansion | | Gate Rate | Attack: <100µSec (from maximum depth)
Release: Program dependent | | Frequency Response | FR: 20Hz to 20kHz, +0/-0.5dB
Bandwidth: 0.35Hz to 9okHz, +0/-3.0dB | | Dynamic Range | >114dB, unweighted | | Noise | <-93dBu, unweighted (22kHz measured bandwidth) | | THD + N | <0.02% typical on any amount of compression @ 1kHz | | Crosstalk | <-95dB, 20Hz to 20kHz | | CMRR | >40dB, typical, >55dB @ 1kHz | | Operating Temperature | 32°F to 113°F (0°C to 45°C) | | Power Requirements | 100~120VAC 50/60Hz
15W maximum power consumption | | Dimensions (WxDxH) | 19 x 5.75 x 1.75" (483 x 146 x 45mm) | | Weight | 4.84 lb (2.19kg) | | Specialties | SMPTE IMD: <0.2% | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 21.9 x 11.3 x 2.6" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
