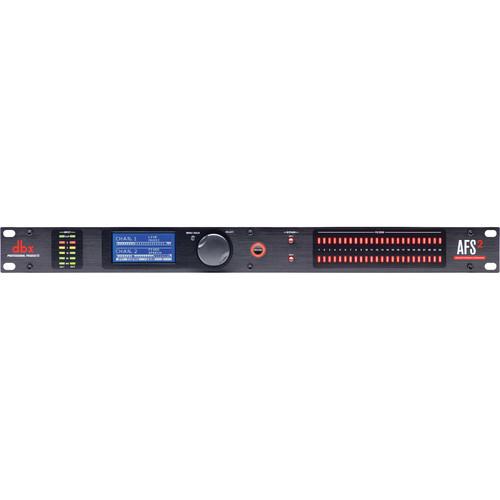

User Manual for dbx AFS2 Dual-Channel Advanced Feedback Suppression Processor Click to enlarge the picture
Contents of the user manual for the dbx AFS2 Dual-Channel Advanced Feedback Suppression
- Product category: Feedback Controllers dbx
- Brand: dbx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dbx Feedback Controllers
|
User manual for the dbx AFS2 Dual-Channel Advanced Feedback Suppression contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dbx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dbx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dbx product will considerably shorten its lifespan!
|
Product description The AFS2 Dual-Channel Advanced Feedback Suppression Processor from DBX protects your ears and audio equipment from annoying and potentially damaging audio feedback without altering your sound. The AFS2 features application-specific filter types for speech, music low, music medium, and music high. The 24 fixed or live narrow-band notch filters are capable of removing frequencies at 1/80 of an octave, ensuring an optimal frequency response without the possibility of feedback. The front panel features the wizard function to take the guesswork out of setting up any room by incorporating an advanced feedback suppression module and providing a full LCD display for system settings and menus. Additionally, the AFS2 offers a five-segment LED for accurately monitoring input levels for each channel, while the notch filter indicator allows you to monitor the number of filters applied. Dedicated bypass buttons are included to help isolate problem channels. The rear panel offers XLR and 1/4" inputs and outputs, both switchable between +4 and -10 dB operations. A USB port has been provided for firmware updates. The AFS2 ships with a standard IEC power cable. UPC: 691991401510 In the Box dbx AFS2 Dual-Channel Advanced Feedback Suppression Processor Standard IEC Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx AFS2 Dual-Channel Advanced Feedback Suppression Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx DBXAFS2-V Specs Number of Channels | 2 | Inputs | Connectors: Female XLR and 1/4" TRS Type: Electronically balanced and unbalanced, RF filtered Impedance: Balanced 50 kohm, unbalanced 25 kohm Max Line Level: +20 dBu | Input CMRR | >40 dB, typically >55dB @ 1 kHz | Outputs | Connectors: Male XLR and 1/4" TRS Type: Electronically balanced and unbalanced, RF filtered Impedance: Balanced >120 ohms, unbalanced >60 ohms Max Level: +20 dBu | A/D/A Converter | A/D Converter: DBX type IV conversion system A/D Dynamic Range: >113 dB A-weighted, >110 dB, unweighted, 22 kHz BW Type IV Dynamic Range: >119 dB, A-weighted, 22 kHz BW; >117 dB, unweighted, 22 kHz BW A/D Conversion: 24-bit Sample Rate: 48 kHz D/A Dynamic Range: 112 dB A-weighted, 109 dB unweighted D/A Conversion: 24-bit | Dynamic Range | 109 dB A-weighted, 106 dB unweighted, 22 kHz BW | THD + Noise | 0.003% typical at +4 dBu, 1 kHz | Frequency Response | 20 Hz to 20 kHz, ±0.5dB | Crosstalk | Interchannel Crosstalk: >80 dB typical Crosstalk Input to Output: >80 dB | Power | US: 100 to 120 VAC 60 Hz EU: 220 to 240 VAC 50 Hz 9 W | Dimensions (HxDxW) | 1.8 x 5.8 x 19.0" / 4.4 x 14.6 x 48.3 cm | Weight | 4.5 lb / 2.0 kg | | Package Weight | 6.25 lb | Box Dimensions (LxWxH) | 22.1 x 12.3 x 3.6" |
