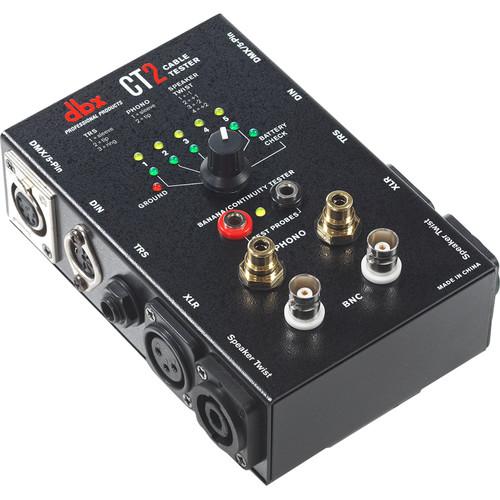

User Manual for dbx CT-2 Cable Tester Click to enlarge the picture
Contents of the user manual for the dbx CT-2 Cable Tester
- Product category: Cable Testers & Tone Generators dbx
- Brand: dbx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dbx Cable Testers & Tone Generators
 |
User manual for the dbx CT-2 Cable Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dbx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dbx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dbx product will considerably shorten its lifespan!
|

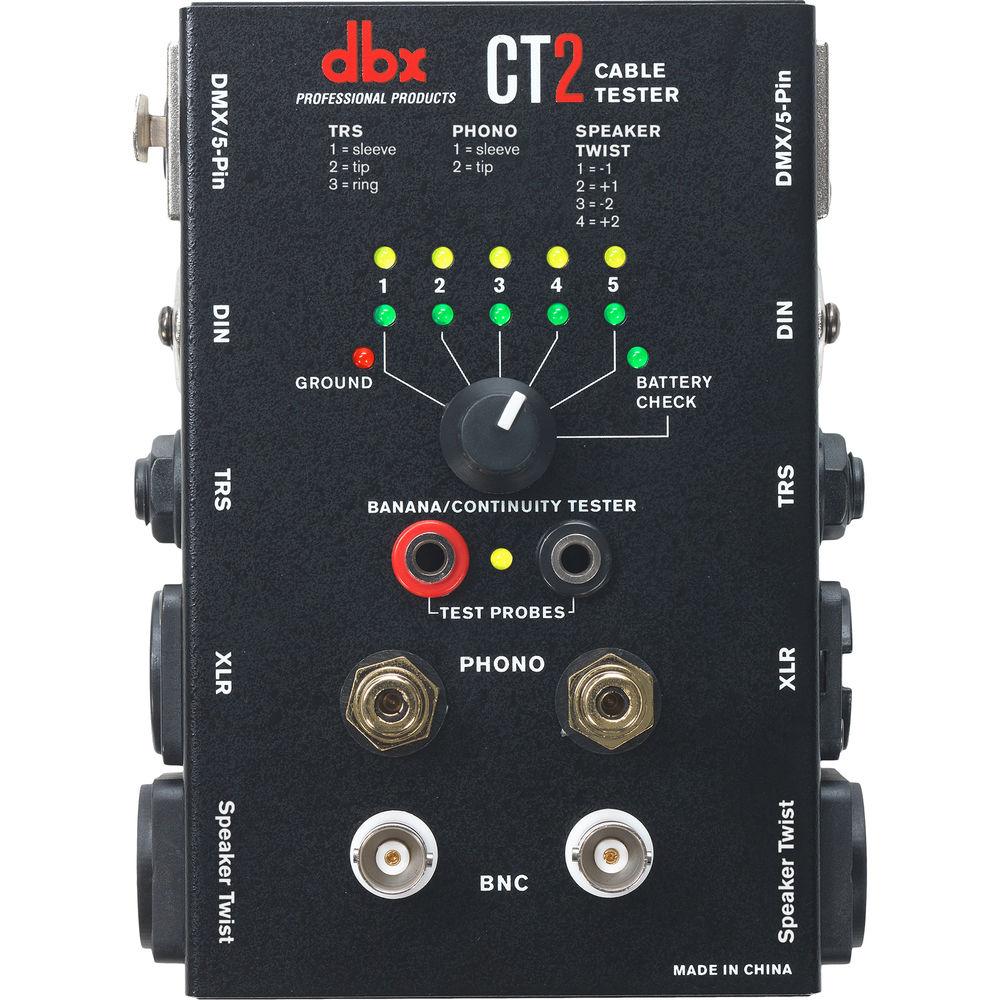

Product description Test a variety of cables with the CT-2 Cable Tester from dbx. The CT-2 can test many common connectors such as speaker twist/Speakon, XLR, phono, BNC, MIDI/5-pin DIN, TS/TRS, DMX, and banana connectors. A six-position rotary selector with individual LEDs lets you test up to five pins in a cable. The rotary also allows you to check the internal battery life.
This cable tester also allows you to test cables with different connectors at each end. For example, you can test a TRS to XLR cable by plugging in each end to its appropriate port. With illuminated LED indicators and a simple rotary dial, you can quickly establish whether a cable is wired and functioning correctly, or if it is dead and needs to be replaced or repaired. A single 9V battery is required for operation (available separately). - Rugged construction for durability
- Six-position rotary selector with individual LEDs for checking up to five pins and internal battery life
- Banana connector continuity tester with beeper and LED indicator
- Tests speaker twist, XLR, phono, BNC, MIDI, TS/TRS, DMX, and banana connectors
UPC: 691991001864 In the Box dbx CT-2 Cable Tester Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx CT-2 Cable Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

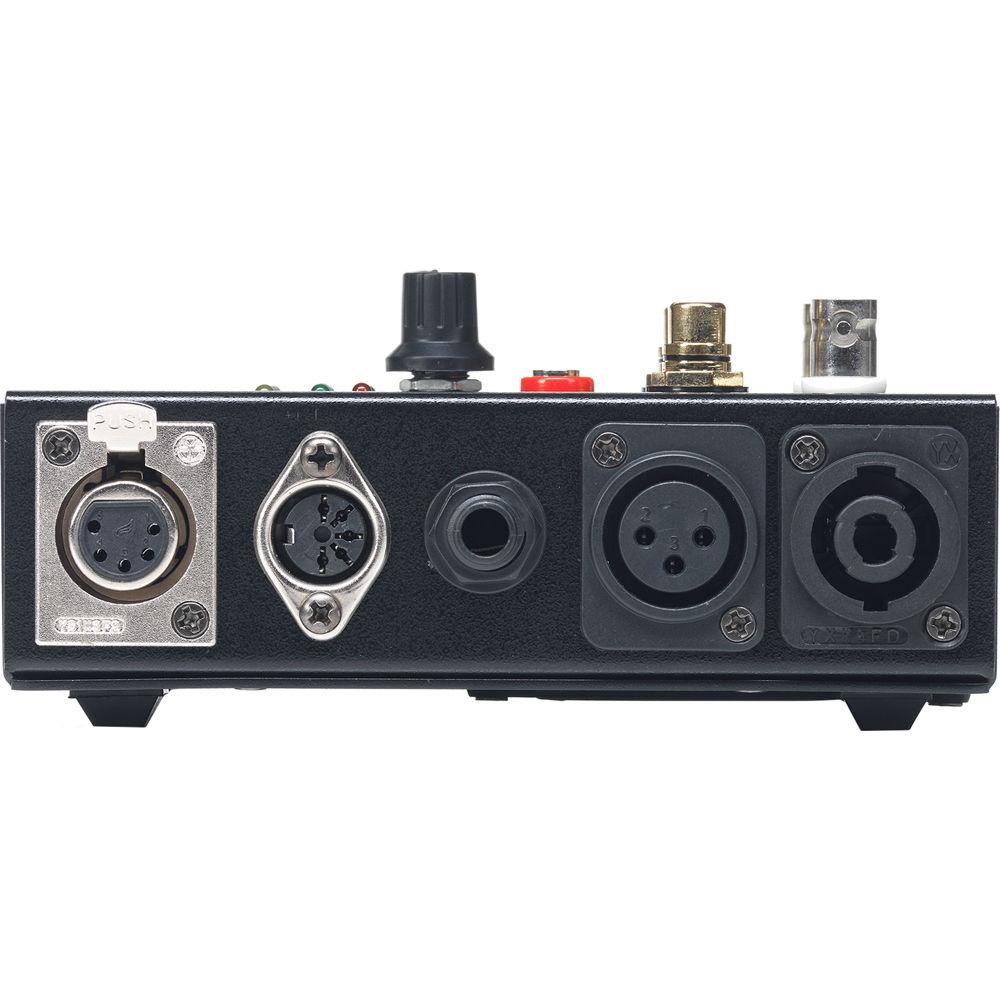

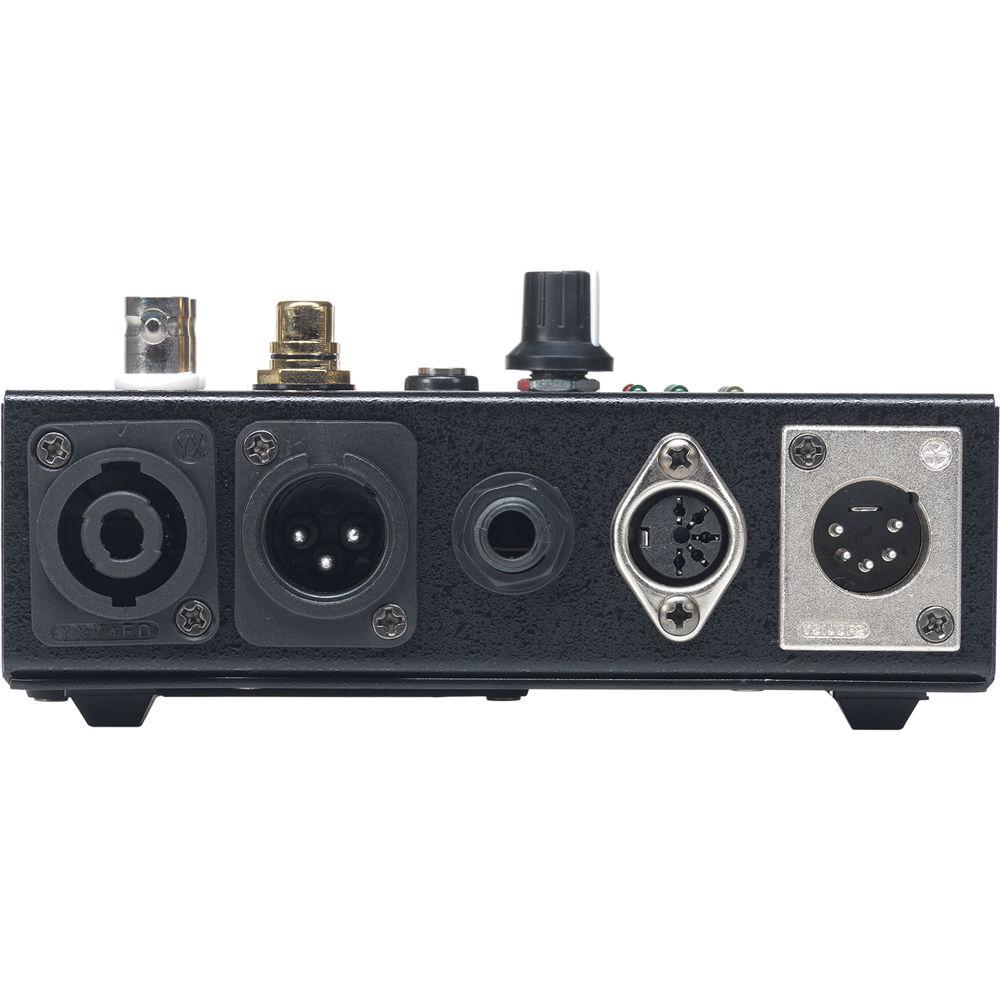

Technical parametersdbx CT2 Specs | Connectors | 2 x 4-pin speaker twist
2 x 3-pin XLR (1 x male, 1 x female)
2 x 2-pin RCA phono
2 x 2-pin BNC
2 x 5-pin DIN (MIDI)
2 x 5-pin DMX
2 x 3-pin 1/4" TS/TRS
2 x 1-pin banana | | Power Requirements | 9V battery (available separately) | | Dimensions | 3.5 x 5.5 x 1.5" (8.9 x 14 x 3.7 cm) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 5.8 x 4.9 x 2.9" |
