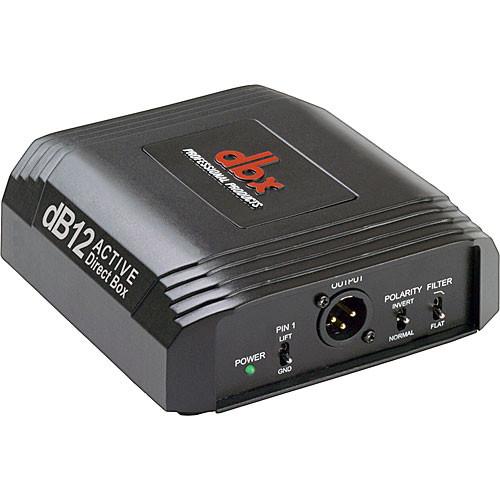

User Manual for dbx DB12 - Direct Box Click to enlarge the picture
Contents of the user manual for the dbx DB12 - Direct Box
- Product category: Direct Boxes dbx
- Brand: dbx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dbx Direct Boxes
|
User manual for the dbx DB12 - Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dbx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dbx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dbx product will considerably shorten its lifespan!
|
Product description The BD12 from dbx is a high performance, active direct box housed in a industrial strength enclosure, and includes custom dbx mu-metal-shielded audio transformers, high-quality Neutrik connectors, and low-noise circuitry. The box includes a pad switch to accommodate instrument, line and even speaker level signals. A polarity invert switch can alter the phase relationship between the direct and mic'd sound, while a ground lift switch helps tame any ground hum or buzz. While providing a clean signal free from interference, the solid, stable footprint of the enclosure prevents the box from being dragged around the stage, and the unique contoured underside allows secure stacking of multiple units. - Premium performance direct box housed within a rugged design
- Low-noise active circuitry
- Stackable chassis with durable rubber foot
- Gold-plated Neutrik XLR connector
- Premium chrome toggle switches
- Premium shielded custom dbx transformer
- Three-way 0,20,40dB pad switch
- Swithcable high-cut filter
- Output polarity invert switch
- Phantom powered with green LED phantom power indicator
UPC: 691991401022 In the Box dbx DB12 - Direct Box Four (4) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx DB12 - Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx DBXDB12V Specs | Type | Active | | Input Connections | 1 x 1/4" TS phone | | Output Connectors | 1 x XLRm
1 x 1/4" TS phone | | Input Level | +10dBu (0dB pad)
+30dBu (20dB pad)
+50dBu (40dB pad) | | Output Level | +8dBu into 600Ω | | Controls | 1 x Input Selector Switch
1 x Polarity Switch
1 x Low-Pass Filter Switch
1 x Ground Lift Switch | | Frequency Response | 20Hz to 20kHz, +/-3dB
30Hz to 20kHz, +0/-1dB | | Noise | <-105dBu unweighted, 22kHz bandwidth | | Power | +20 to +48 volts DC phantom power (<8mA current drain) | | Dimensions (WxDxH) | 5.44 x 5.82 x 2.20" (138 x 148 x 56mm) | | Weight | 1.4 lbs (0.65 kg) | | Specialties | Premium shielded custom dbx transformer | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.3 x 7.7 x 2.5" |
