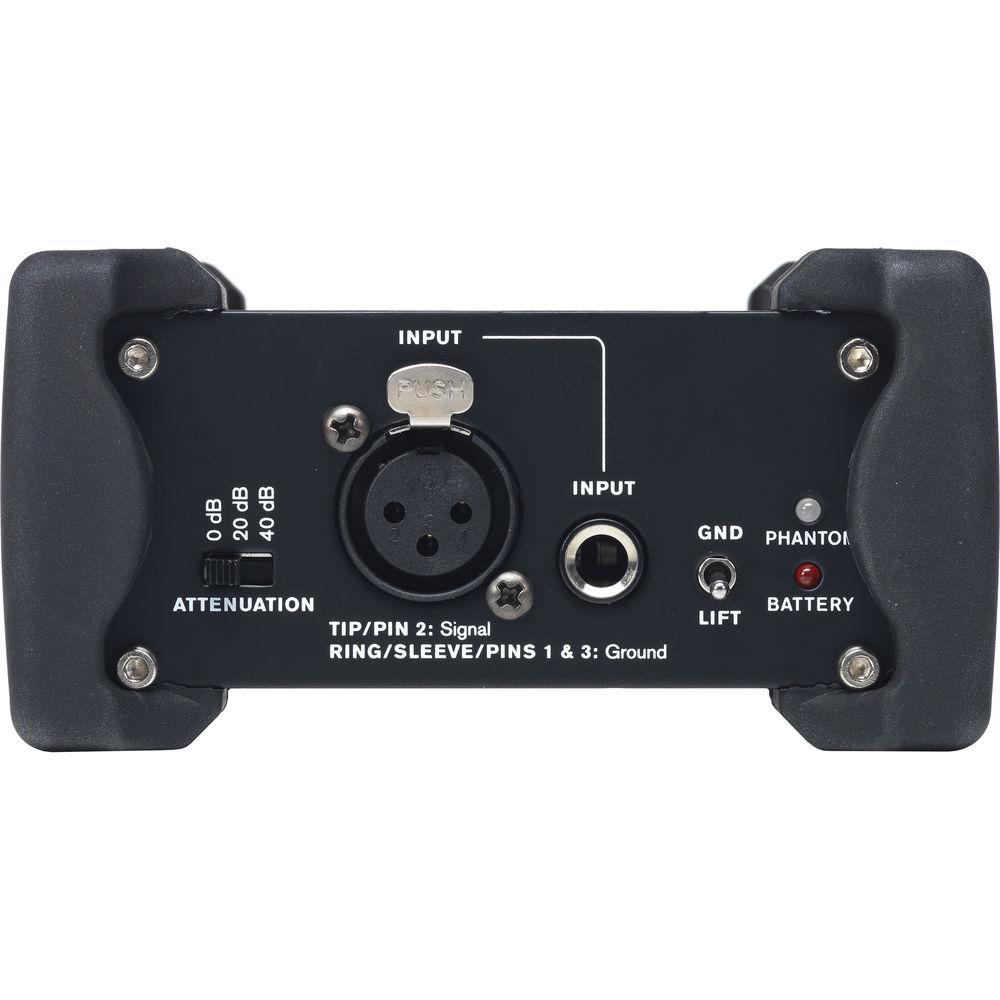

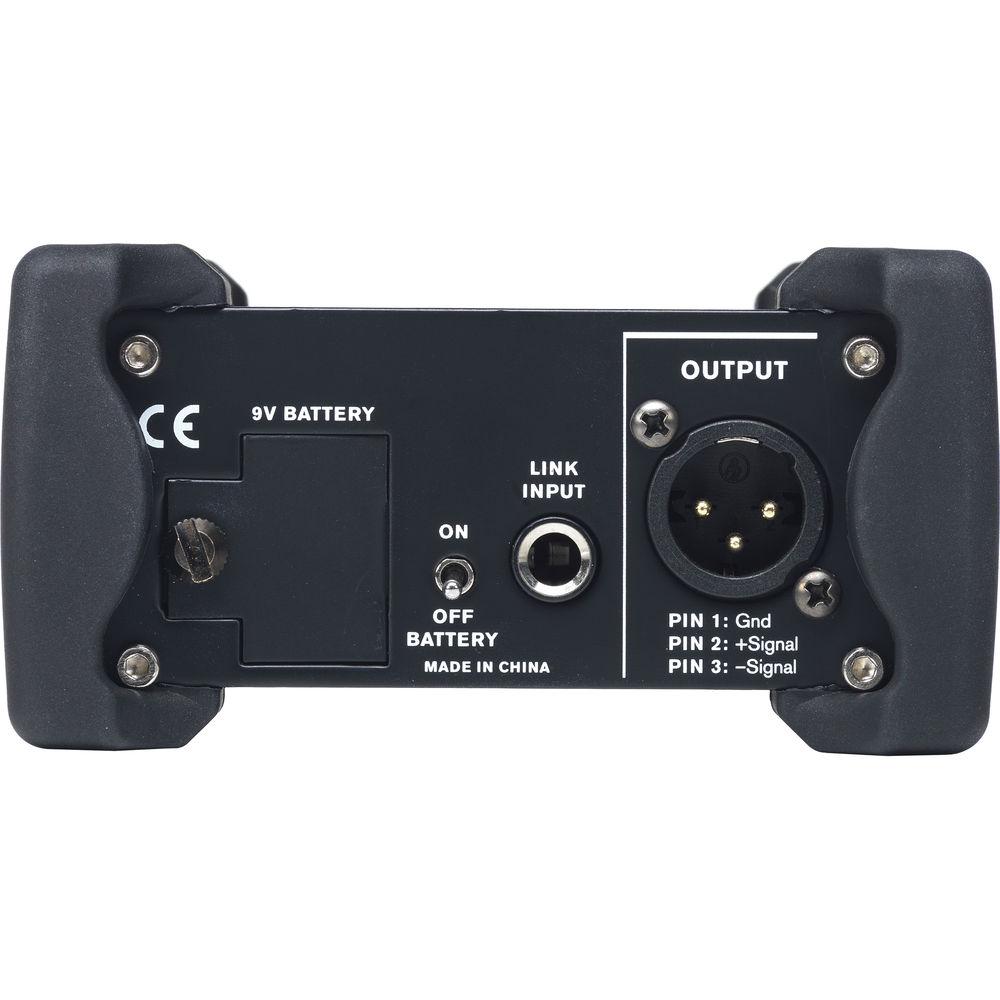

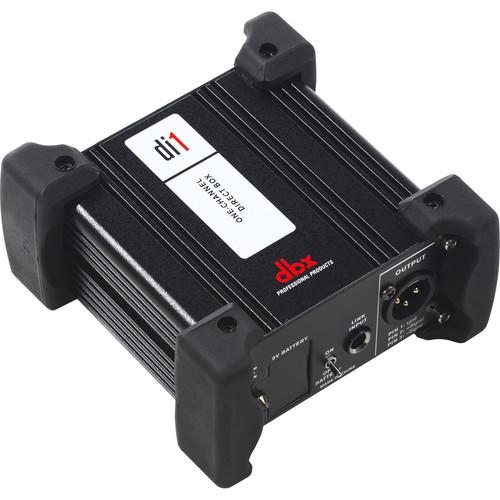

User Manual for dbx DI1 Active Direct Box Click to enlarge the picture
Contents of the user manual for the dbx DI1 Active Direct Box
- Product category: Direct Boxes dbx
- Brand: dbx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dbx Direct Boxes
 |
User manual for the dbx DI1 Active Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dbx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dbx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dbx product will considerably shorten its lifespan!
|
Product description Plug your high-impedance gear into low-impedance equipment with the dbx DI1 Active Direct Box. Using a 9V battery or phantom power from your mixing board or interface, the DI1 takes the high-impedance signal which comes from instruments and other unbalanced TS or XLR sources and transforms it into a low-impedance balanced XLR signal. Low-impedance balanced signals can drive long cables without picking up interference or losing high-end articulation. UPC: 091037927835 In the Box dbx DI1 Active Direct Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx DI1 Active Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx DI1 Specs | Type | Active | | Input Connections | 2 x parallel 1/4" unbalanced TS
1 x XLR unbalanced (pin 2 hot, pins 1 and 3 ground)
Impedance: >250 kOhms | | Output Connectors | 1 x XLR balanced
Impedance : >600 Ohms | | Input Level | Max: +12 dB (at 0 dB), +32 dB (at -20 dB), +52 (at -40 dB) | | Frequency Response | 10 Hz to 70 kHz, +0/-3 dB | | Noise | <-100 dB (unweighted) | | Power | Phantom power: 18 to 48 VDC
9V battery | | Dimensions (WxDxH) | 5.9 x 4.9 x 2.7" / 150 x 124 x 69 mm | | Weight | 1 lb / 0.4 kg | | | | Package Weight | 1.195 lb | | Box Dimensions (LxWxH) | 5.95 x 4.95 x 2.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
