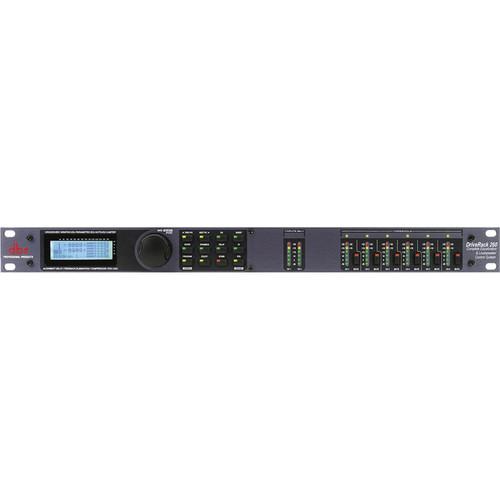

User Manual for dbx DriveRack 260 Loudspeaker Management System Click to enlarge the picture
Contents of the user manual for the dbx DriveRack 260 Loudspeaker Management System
- Product category: System Processors dbx
- Brand: dbx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dbx System Processors
|
User manual for the dbx DriveRack 260 Loudspeaker Management System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dbx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dbx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dbx product will considerably shorten its lifespan!
|
Product description The dbx DriveRack 260 Loudspeaker Management System is a processor designed for complete system control of equalization, dynamics, and routing possibilities in live or contractor sound applications. Its powerful processing includes both a linkable 28-band graphic and a 9-band parametric EQ, while system dynamics are controlled by the built-in compressor. Further component protection is provided by DBX's PeakStopPlus limiters, which help protect against too much power and sudden transient spikes.Before users adjust the EQ, they may want to utilize the internal pink noise generator and real time analyzer to get familiar with the room acoustics. In addition, an easy to assign, flexible alignment time delay and handy 15V phantom powered mic input are also provided for further room management and control.The goal of a high-quality control processor is to help "dial in" a room and contribute to the overall system performance without directly interfering with audio integrity. Custom templates are built-in for specific amplifier and speaker combinations with user setups easily adjusted using the Wizard setup system and complete DriveWare GUI control.An outstanding tool for maximizing audio quality in a number of environments, the DriveRack 260 is derived from an already proven series of processors and continues the tradition of providing flexible system control using simple, intuitive interfaces. - Graphic and parametric equalization
- Full bandpass, crossover, and routing configurations
- Built-in subharmonic synthesizer
- Pink noise generator and full-time RTA
- 2.7 seconds of alignment and zone delay
UPC: 691991400483 In the Box dbx DriveRack 260 Equalization and Loudspeaker Control System Power Cord Limited 2-Year Warranty User Manual PDF 8.1mbartaetdzfaebbtvwstcwxrbdaybbbubazy Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx DriveRack 260 Loudspeaker Management System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx 260 Specs | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 110 dB unweighted
>107 dB weighted | | Input Connections | 2 x XLR female
1 x XLR RTA Mic | | Output Connections | 6 x XLR male | | Input Impedance | >40 kOhms | | Output Impedance | 120 Ohms | | Maximum Input Level | 34 dBu with input jumpers in +30 position | | Maximum Output Level | 22 dBu | | Sample Rate | 48 kHz | | RTA Mic Phantom Voltage | 15 V | | Crosstalk (Main Outputs) | >100 dB | | THD & Noise | 0.002% typical at +4 dBu, 1 kHz, 0 dB input gain | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 22.2 x 11.5 x 4.3" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
