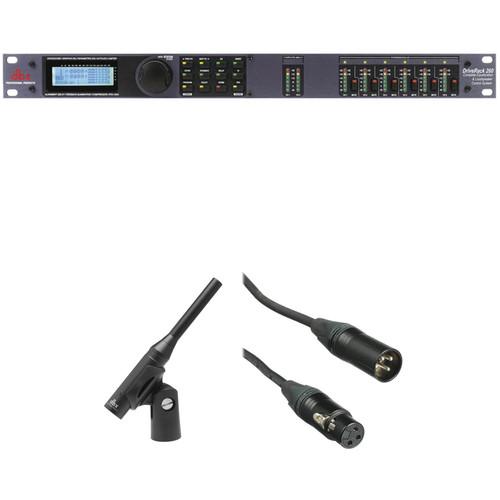

User Manual for dbx DriveRack 260 Loudspeaker Management System Kit with Measurement Mic and Cable Click to enlarge the picture
Contents of the user manual for the dbx DriveRack 260 Loudspeaker Management System
- Product category: System Processors dbx
- Brand: dbx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dbx System Processors
|
User manual for the dbx DriveRack 260 Loudspeaker Management System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dbx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dbx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dbx product will considerably shorten its lifespan!
|
Product description This B&H Kit combines the dbx DriveRack 260 Loudspeaker Management System with a measurement microphone and high-quality microphone cable to create a professional sound system calibration system, well suited for audio engineers, club installations, mobile DJs, and more. - dbx DriveRack 260 Loudspeaker Management System The dbx DriveRack 260 Loudspeaker Management System is a processor designed for complete system control of equalization, dynamics, and routing possibilities in live or contractor sound applications. Its powerful processing includes both a linkable 28-band graphic and a 9-band parametric EQ, while system dynamics are controlled by the built-in compressor. Further component protection is provided by DBX's PeakStopPlus limiters, which help protect against too much power and sudden transient spikes.Before users adjust the EQ, they may want to utilize the internal pink noise generator and real time analyzer to get familiar with the room acoustics. In addition, an easy to assign, flexible alignment time delay and handy 15V phantom powered mic input are also provided for further room management and control.The goal of a high-quality control processor is to help "dial in" a room and contribute to the overall system performance without directly interfering with audio integrity. Custom templates are built-in for specific amplifier and speaker combinations with user setups easily adjusted using the Wizard setup system and complete DriveWare GUI control.An outstanding tool for maximizing audio quality in a number of environments, the DriveRack 260 is derived from an already proven series of processors and continues the tradition of providing flexible system control using simple, intuitive interfaces.
- Graphic and parametric equalization
- Full bandpass, crossover, and routing configurations
- Built-in subharmonic synthesizer
- Pink noise generator and full-time RTA
- 2.7 seconds of alignment and zone delay
UPC: 691991400483 - dbx RTA-M Reference Microphone The RTA-M Reference Microphone from dbx is an omnidirectional mic designed for use with dbx DriveRack series real-time analyzers (sold separately) to provide an acoustic picture of a room. It can be used to capture audio and fine-tune your sound system performance to match the response characteristics of the room for live sound and recording applications. In addition, the RTA-M is built with a metal housing, requires phantom power (9 to 52 VDC), and includes a mic clip along with a hardcover case.
- Omnidirectional polar pattern
- Designed for the DriveRack series
- Accurate "pinking" / real-time analysis of your audio
- It runs on phantom power (supplied by the DriveRack units) and comes with a clip and case
UPC: 691991400421 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558267 In the Box - DriveRack 260 Equalization and Loudspeaker Control System ctaravcdtdscfvduusyywb
- Power Cord
- Limited 2-Year Warranty
- RTA-M Reference Microphone
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx DriveRack 260 Loudspeaker Management System Kit with Measurement Mic and Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - dbx DriveRack 260 Loudspeaker Management System
Frequency Response | 20 Hz to 20 kHz | Dynamic Range | 110 dB unweighted >107 dB weighted | Input Connections | 2 x XLR female 1 x XLR RTA Mic | Output Connections | 6 x XLR male | Input Impedance | >40 kOhms | Output Impedance | 120 Ohms | Maximum Input Level | 34 dBu with input jumpers in +30 position | Maximum Output Level | 22 dBu | Sample Rate | 48 kHz | RTA Mic Phantom Voltage | 15 V | Crosstalk (Main Outputs) | >100 dB | THD & Noise | 0.002% typical at +4 dBu, 1 kHz, 0 dB input gain | | Box Dimensions (LxWxH) | 22.2 x 11.5 x 4.3" | - dbx RTA-M Reference Microphone
