dbx DriveRack PA2 Loudspeaker Management Kit

User Manual for dbx DriveRack PA2 Loudspeaker Management Kit with RTA-M Microphone

• Product category: System Processors dbx
• Brand: dbx
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for dbx System Processors

Product description

• dbx DriveRack PA2 Complete Loudspeaker Management System The dbx DriveRack PA2 Complete Loudspeaker Management System is a loudspeaker management system that can be controlled via your Mac, PC, or mobile iOS or Android device. Using an optional microphone connected to its RTA input, its AutoEQ function can be employed to listen to your room and automatically EQ it for optimized speaker performance. The AFS (Advanced Feedback Suppression) feature is designed to eliminate feedback while preserving the sound of your system.

  In addition to automated functions, the DriveRack has integrated dbx compression and limiting as well as both a graphic and 8-band parametric EQ section. It also features driver-alignment delays and a crossover section that supports full-range, 2-way, and 3-way systems. You can control the DriveRack PA2 directly by connecting from your Mac or PC via the rear-panel USB port, or connect the PA2 to a wireless router via its Ethernet port for compatibility with iOS or Android devices.
  AutoEQ
  • The AutoEQ algorithm is designed to ensure an accurate, fast, and non-intrusive automatic EQ experience.
    With an optional mic connected to the RTA Mic input "listening" to your room, the DriveRack PA2 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds. This means room adjustments can now be made quickly, without subjecting the audience to annoying, lengthy broadcasts of pink noise
  AFS Feedback Elimination
  • The Advanced Feedback Suppression (AFS) algorithm allows for faster, more precise feedback elimination, without adversely affecting your system's tone.
    The DriveRack PA2 listens for and anticipates feedback and adjusts speaker output automatically before feedback can start, while never altering your sound
  Wizard Setup Functions
  • Wizards make initial set up easy, while ensuring speaker tunings and other settings are up-to-date.
    Wizard functions on the DriveRack PA2 to guide you through step-by-step processes to help you get the most from your loudspeaker system. It helps you configure level balancing, AutoEQ, Advanced Feedback Suppression, and provides access to built-in and constantly updating speaker tunings from most major speaker manufacturers
  Input Processing
  • • dbx Compression
    • AFS (Advanced Feedback Suppression)
    • Graphic EQ
    • 8-Band Parametric EQ (adjusted when using the AutoEQ)
    • Subharmonic Synthesis
  Output Processing
  • • Crossover (supports full range, 2-way, and 3-way systems)
    • 8-Band Parametric EQs (used for speaker tunings)
    • dbx Limiting
    • Driver Alignment Delays
  UPC: 691991401480

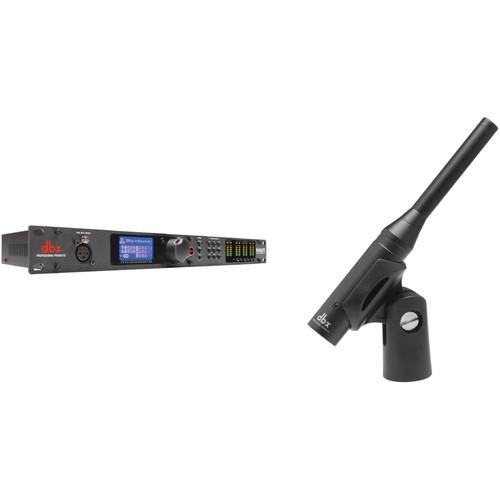

• dbx RTA-M Reference Microphone The RTA-M Reference Microphone from dbx is an omnidirectional mic designed for use with dbx DriveRack series real-time analyzers (sold separately) to provide an acoustic picture of a room. It can be used to capture audio and fine-tune your sound system performance to match the response characteristics of the room for live sound and recording applications. In addition, the RTA-M is built with a metal housing, requires phantom power (9 to 52 VDC), and includes a mic clip along with a hardcover case.
  • Flat frequency response
  • Omnidirectional polar pattern
  • Designed for the DriveRack series
  • Accurate "pinking" / real-time analysis of your audio
  • It runs on phantom power (supplied by the DriveRack units) and comes with a clip and case
  UPC: 691991400421

• DriveRack PA2 Complete Loudspeaker Management System vzeysvqaduwwwrxfvzvdcvytxydbwxcbxc
• Limited 2-Year Warranty

• RTA-M Reference Microphone

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• dbx DriveRack PA2 Complete Loudspeaker Management System

  Analog Inputs	Number of Inputs: 2 x line inputs, 1 x RTA mic input Connectors: 2 x female XLR line inputs, 1 x female XLR RTA mic input Type: Electronically balanced/RF filtered Impedance: > 50 kOhms Max Input Level (line inputs): > +20 dBu CMRR: > 45 dB RTA Mic Preamp Phantom Power: +15 VDC
  Analog Outputs	Number of Outputs: 6 x line outputs Connectors: Male XLR Type: Electronically balanced, RF filtered Impedance: 120 Ohms Max Output Level: +20 dBu Alignment Delay: Up to 10 ms per output channel pair
  A/D and D/A Conversion	A/D Performance A/D Converter: 24-bit with dbx Type IV Conversion System A/D Dynamic Range: 112 dB A-weighted, 110 dB unweighted Type IV Dynamic Range: 123 dB with transient material, A-weighted, 22 kHz BW 121 dB with transient material, unweighted, 22 kHz BW 115 dB typical with program material, A-weighted, 22 kHz BW D/A Performance D/A Converter: 24-bit D/A Dynamic Range: 112 dB A-weighted, 110 dB unweighted
  Internal Processing	32-bit floating point
  Sample Rate	48 kHz
  Dynamic Range	A-Weighted: 110 dB Unweighted: 107 dB
  THD + N	0.003% typical at +4 dBu, 1 kHz, 0 dB input gain
  Frequency Response	20 Hz to 20 kHz, (+0 /- 0.5 dB)
  Crosstalk	Interchannel Crosstalk: < -110 dB, -120 dB typical (input-to-output: < -100 dB)
  Latency	Input to output: 1.847 ms
  Power	Operating Voltage: 100 to 120 VAC 50/60 Hz or 220 to 240 VAC 50/60 Hz Power Consumption: 22 W
  Dimensions (H x D x W)	1.8 x 5.8 x 19.0" / 44.5 x 146.1 x 482.6 mm
  Weight	5.3 lb / 2.4 kg

  Box Dimensions (LxWxH)	22.3 x 11.5 x 3.8"

• dbx RTA-M Reference Microphone

  Element Type	Back-electret condenser
  Polar Pattern	Omnidirectional
  Frequency Response	20 Hz to 20 kHz
  Impedance	250 Ohms Rating 100% users recommend this product to others. And what about you? This product has already been rated by 70 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
