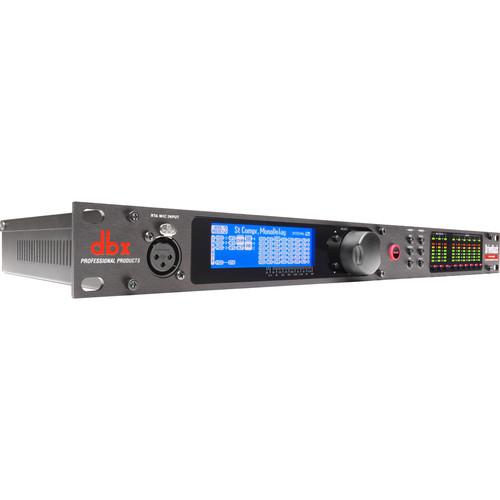

Product description The DriveRack VENU360 from dbx is a loudspeaker-management processor designed to protect and optimize front-of-the house, stage monitor, delay-fill, and zone loudspeaker systems in clubs, outdoor music events, or houses of worship. Connect the VENU360 between your mixer and amplifiers/powered speakers, and use it for precise feedback elimination, automatic speaker level and room equalization, crossover-frequency setting, dbx compression/limiting, driver alignment delay, and more. The unit provides a 5 x 6 routing/mixing matrix (using four AES signals and one analog signal) and a 3 x 6 signal processing chain. The 24-bit A/D and D/A converters with dbx Type IV conversion protect the incoming audio signal from accidental digital clipping at the A/D stage, while the 32-bit floating point, 48 / 96 kHz internal processing produces professional audio quality with high headroom and wide dynamic range. For easy operation, the Wizard functions guide you through simple, step-by-step processes to help you quickly configure the unit. For more control, you can use the manual mode which lets you customize each parameter separately. A large, bright, LCD display and nine 6-segment signal meters provide easy-to-read visual feedback. Additionally, the free DriveRack VENU360 control application offers network control via the built-in Ethernet port, and is available for iOS, Android, Mac, and Windows-compatible devices. - Provides a 5 x 6 routing/mixing matrix with a 3 x 6 signal processing chain
- 24-bit A/D & D/A converters with dbx Type IV conversion and 48 / 96 kHz, 32-bit floating-point processing – with sample rate conversion
- Setup Wizard for easy system configuration and Level Assist Wizard for system level balancing
- AutoEQ Wizard for fast & accurate room equalization using 10-band parametric EQ; further user adjustments can be made to bands 11 to 14
- AFS Wizard for easy & accurate feedback suppression
- Support for multi-mono, stereo, LCR, & aux-fed sub input configurations
- Selectable 31-Band graphic EQ or 12-band parametric EQ with narrow notch capabilities for speaker tuning
- Input Delay processing for aligning the sound system of the stage backline, and Fill Delay processing for balcony & tower delays – up to 3000 ms total cascaded delay time (3 x configurable delay modules at 1000 ms each)
- dbx compression with dbx PeakStopPlus output limiters
- Crossover with support for full range up to mono 6-way configurations – selectable crossover filter types & slope rates with adjustable polarity & variable phase control
- Noise Gate to remove unwanted low-level noise in sound system
- Subharmonic Synthesis for deep, punchy bass
- 3 x XLR inputs (selectable between 4 x AES or 3 x analog input channels), and 6 x analog outputs
- Front-panel RTA mic input with 48V phantom power
- Built-in signal generator & RTA for system fine-tuning & troubleshooting
- Large, bright, easy-to-read LCD display and 6-segment signal meters with input clip & output limiter indicators
- 25 x factory / 75 x user presets with various speaker & amplifier tunings included
- Network control via the free VENU360 Control Application for iOS, Android, Mac & Windows-compatible devices
UPC: 691991401497 In the Box dbx DriveRack VENU360 Loudspeaker Management System Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx DriveRack VENU360 Loudspeaker Management System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx DBXVENU360-V Specs | Inputs | Number of Inputs: 3 x analog line inputs / 2 x AES digital inputs (shared connectors), 1 x RTA mic input
Connectors: 3 x female XLRs (2 x selectable between analog / AES digital audio formats), 1 x female XLR RTA mic input
Type: Electronically balanced, RF filtered
Impedance: > 30 kOhms, balanced line to line
Max Input Level (Line Inputs): > +28 dBu, balanced, ≤ 1% THD
CMRR: > 50 dB at 1 kHz
RTA Mic Preamp Phantom Power: +48 VDC | | Analog Outputs | Number of Outputs: 6 x line outputs
Connectors: Male XLR
Type: Electronically balanced, RF filtered
Impedance: 120 Ohms, balanced line to line
Max Output Level: +22 dBu, balanced, ≤1% THD
Alignment Delay: Up to 1000 ms per output channel | | A/D Conversion | A/D Converter: 24-bit with dbx Type IV conversion system
A/D Dynamic Range: 117 dB A-weighted, 114 dB unweighted, 22 kHz BW
Type IV Dynamic Range (22 kHz BW): 129 dB with transient material / A-weighted, 126 dB with transient material / unweighted, 121 dB typical with program material / A-weighted | | D/A Conversion | D/A Converter: 24-bit
D/A Dynamic Range: 116 dB A-weighted, 113 dB unweighted, 22 kHz BW | | System Performance | Internal Processing Wordlength: 32-bit floating point
Supported Sample Rates: 48/96 kHz (32-192 kHz using sample rate conversion)
Dynamic Range: 114 dB A-weighted, 110 dB unweighted
THD+Noise: 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain
Frequency Response: 20 Hz - 20 kHz, +0 /- 0.5 dB
Interchannel Crosstalk: < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured
Latency: 2.57 ms at 48 kHz, 2.28 ms at 96 kHz (Analog input to output) / 2.31 ms at 48 kHz, 2.15 ms at 96 kHz (Digital AES input to output)
Operating Temperature: 32 to 104° F / 0 to 40° C | | Compatibility | N/A | | Power Supply | Operating Voltage: 100-240 VAC, 50/60 Hz
Power Consumption: 30 W | | Dimensions (H x W x D) | 1.75 x 19.00 x 8.00" / 4.45 x 48.26 x 20.32 cm | | Weight | 5.48 lb / 2.49 kg | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 22.2 x 11.4 x 3.7" |
