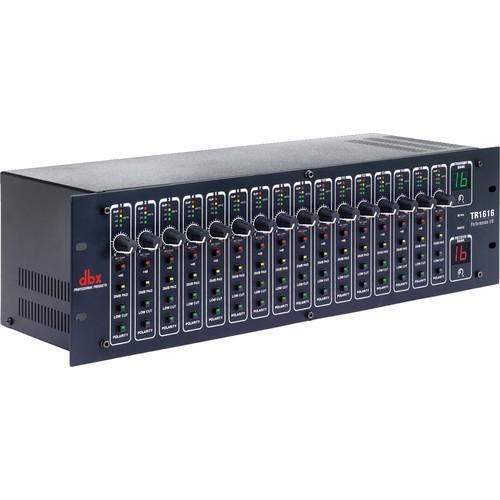

Product description The dbx TR1616 Performance I/O Interface is a 16-input, 16-output analog to BLU link and BLU link to analog audio interface. By providing a modular yet simple solution, the TR1616 is highly expandable and easy to configure. With 16 precision mic preamps and combo-style input jacks, the TR1616 accepts line level or mic level input signals. Configurable in banks of 16 channels, the modular design of the TR1616 allows you to create the digital snake or BLU link network that’s right for you. As your needs change, additional TR1616s can easily be added to the network, providing expansion of up to 256 channels at 48 kHz (or 128 channels at 96 kHz). And with its plug and play functionality, getting into networked digital audio no longer requires long hours of training and programming. Whether you require additional analog inputs or outputs in an existing BLU link compatible system, a digital snake solution for live sound, or a complete personal stage monitoring solution using the PMC16 personal monitor controllers (sold separately), the TR1616 provides a professional solution for transmitting high-resolution audio over CAT5e. - 16 channels of analog I/O
- Combo analog input jacks accept 1/4" or XLR connections
- BLU link high bandwidth, fault-tolerant digital audio bus
- Precision dbx mic preamps with variable gain control
- 48V phantom power per channel
- 80 Hz low cut filter per channel
- Polarity inversion per channel

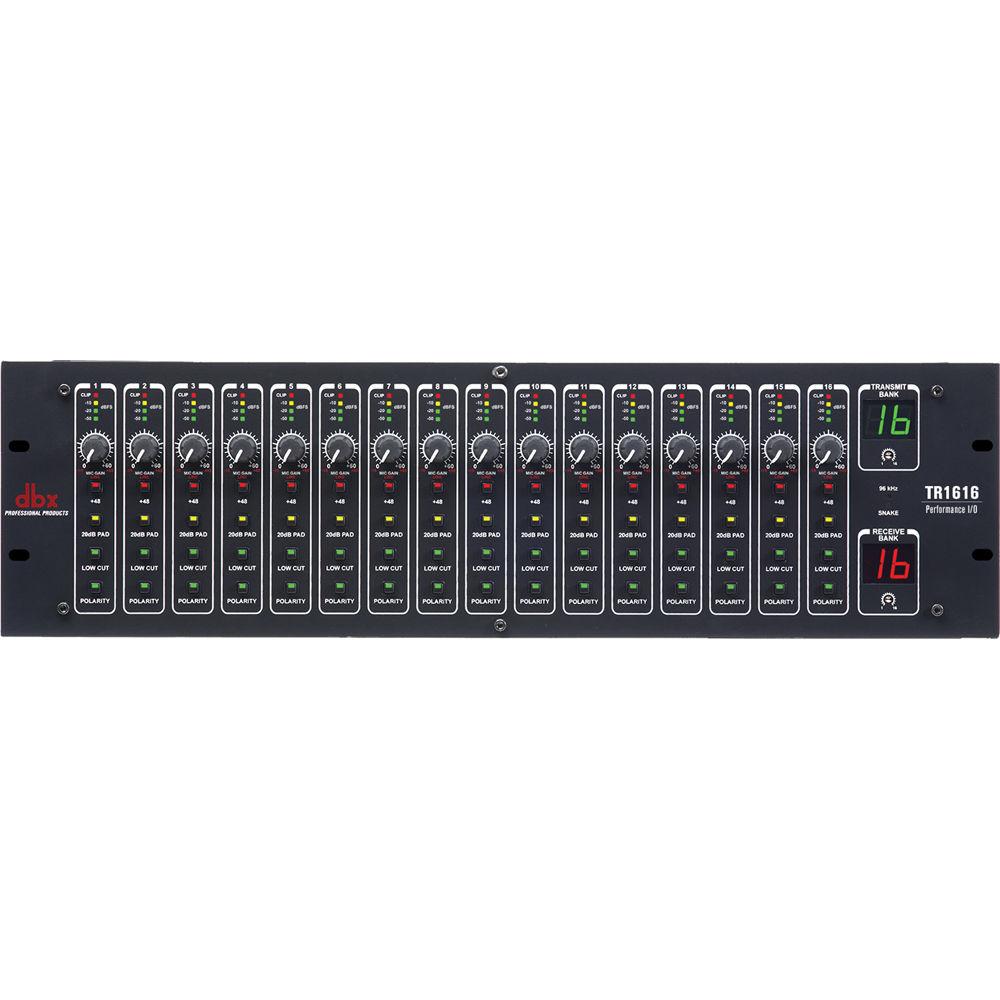

- 4-segment LED input level meter per channel
- Dual 7-segment BLU link channel bank indicators (receive/transmit)
- Supports 48 & 96 kHz sampling rates
- Expandable up to 256 channels @ 48 kHz (128 channels @ 96 kHz)
- Support for up to 16 TR1616s on a single BLU link ring
- USB port for firmware updates
In the Box dbx TR1616 Performance I/O Interface (16 Inputs & 16 Outputs) AC Cable Rack Mount Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dbx TR1616 Performance I O Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdbx TR1616 Specs | | | Number of Inputs | 16 | | Connectors | Combination Female XLR and 1/4" Jack | | Type | Electronically balanced, RF filtered | | Impedance | XLR input: 3 kΩ
1/4" input: 20 kΩ balanced, 10 kΩ unbalanced | | Maximum Input Level | XLR Input: 18 dBu at minimum gain
1/4" Input: 33 dBu at minimum gain | | Gain | XLR Input: 0 to 60 dB
1/4" Input: -15 to 45 dB | | EIN | -125 dBu, 22 Hz to 22 kHz, 150 Ω source impedance | | CMRR | > 40 dB, typically 55 dB, 22 Hz to 22 kHz | | Dynamic Range | 110 dB unweighted, 113 dB A-weighted | | Frequency Response | 10 Hz to 40 kHz, +/- 0.25 dB at 96 kHz
10 Hz to 20 kHz, +/- 0.25 dB at 48 kHz | | THD + N | Typically 0.002% at 1 kHz, 0 dBu XLR input, gain set to minimum | | Crosstalk | Interchannel: < 100 dB, 22 Hz to 22 kHz | | Latency | ADC: 37/Fs (0.77 ms at 48 kHz) | | Phantom Power | 48 VDC, applied to XLR pins 2 and 3 through 6.81 kΩ resistors | | Pad | 20 dB | | Low Cut Filters | 2-pole Butterworth filter at 80 Hz | | Polarity | Normal or reverse | | | | Number of Outputs | 16 | | Connectors | Male XLR | | Type | Cross-coupled electronically balanced, RF filtered | | Impedance | 40 Ω balanced, 20 Ω unbalanced | | Maximum Output Level | 20 dBu into 2 kΩ load or greater | | Dynamic Range | 112 dB unweighted, 115 dB A-weighted | | Frequency Response | 10 Hz to 40 kHz, +/- 0.25 dB at 96 kHz
10 Hz to 20 kHz, +/- 0.25 dB at 48 kHz | | THD + N | Typically 0.006% at 1 kHz, 0 dBu output | | Crosstalk | Interchannel: < -100 dB, 22 Hz to 22 kHz | | Latency | DAC: 29/Fs (0.60 ms at 48 kHz) | | Sample Rate | 48 or 96 kHz | | Word Length | Converter: 24 bits
DSP: 32-bit floating point | | | | Front Panel Indicators | LED Meter: Clip (-3 dBFS), -10 dBFS, -20 dBFS, -50 dBFS (dBFS = dB Full Scale)
96 kHz: Illuminated for 96 kHz, off for 48 kHz
Snake: Illuminated for Snake function | | Audio | BLU-link

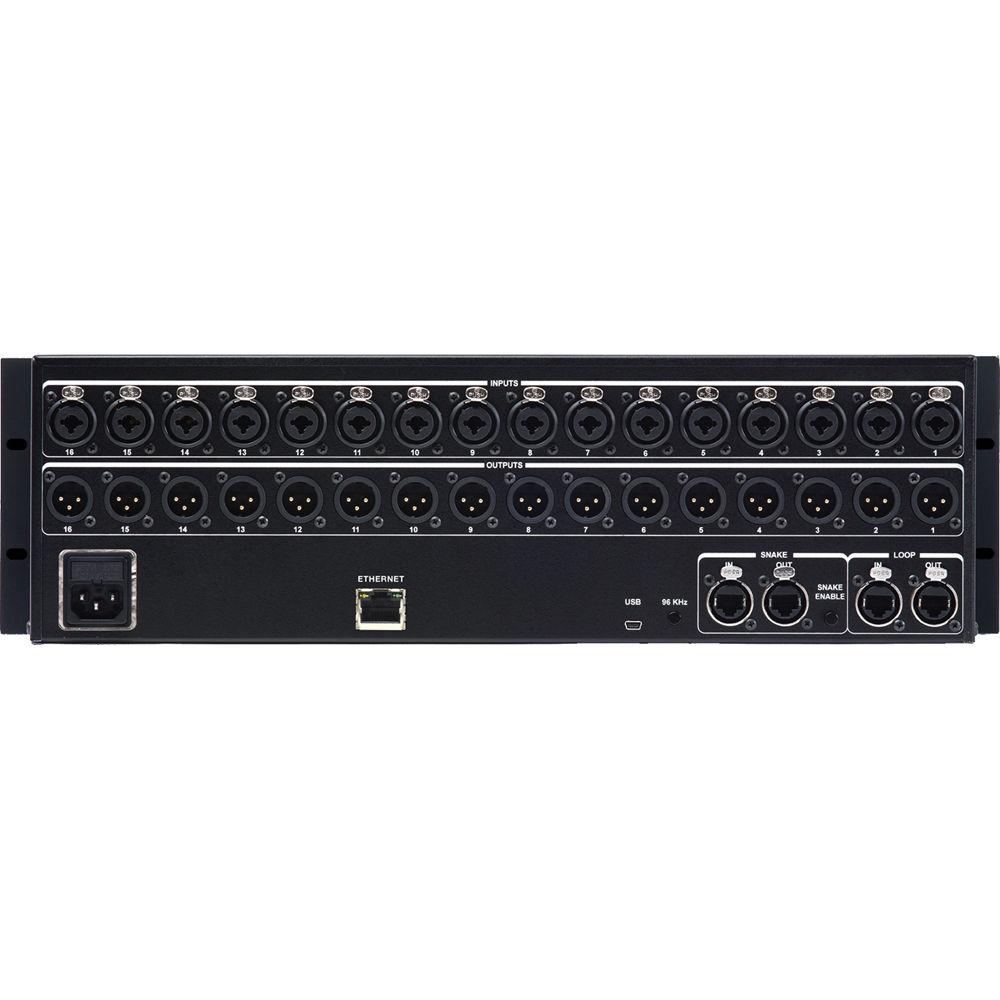

Connectors: 2 x Ethercon lockable RJ-45 Ethernet connectors
Maximum Cable Length: 328' (100 m) on Cat 5e cable between devices
Maximum Number of Nodes: 60
Maximum number of channels: 256 at 48 kHz, 128 at 96 kHz
Latency: 11/Fs (0.23 ms at 48 kHz)
Pass Through Latency: 4/Fs (0.08 ms at 48 kHz) | | USB Port | Mini-B connector | | Ethernet | Connector: RJ-45
Maximum Cable Length: 328' (100 m) on Category 5e cable between devices | | Power Requirements | 100 to 240 VAC, 50/60 Hz, 55 W | | Fuse | 1.6 A, 250 V Timelag Hi Brk | | Rack Unit Space | 3 U | | Dimensions (H x W x D) | 5.25 x 19.00 x 6.25" (133.40 x 482.60 x 158.80 mm) | | Weight | 9.6 lb (4.4 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 22.0 x 8.0 x 7.0" |
