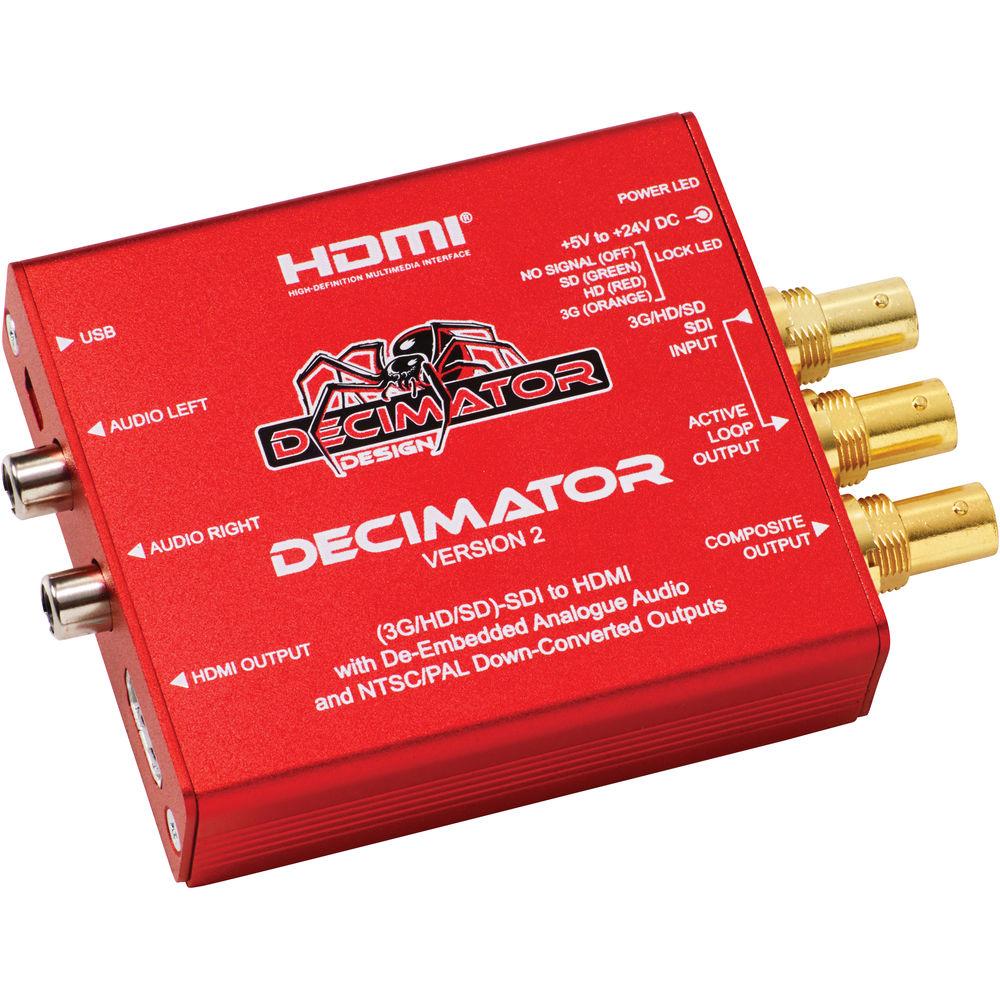

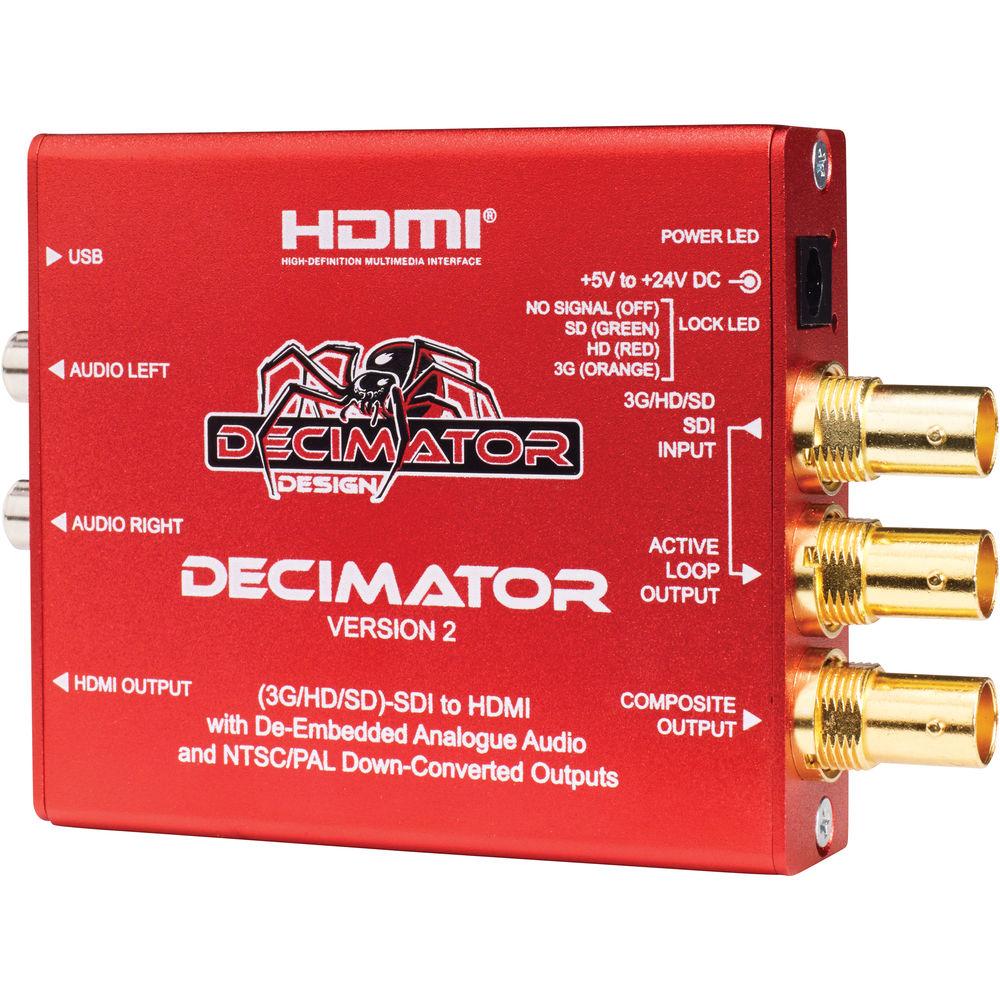

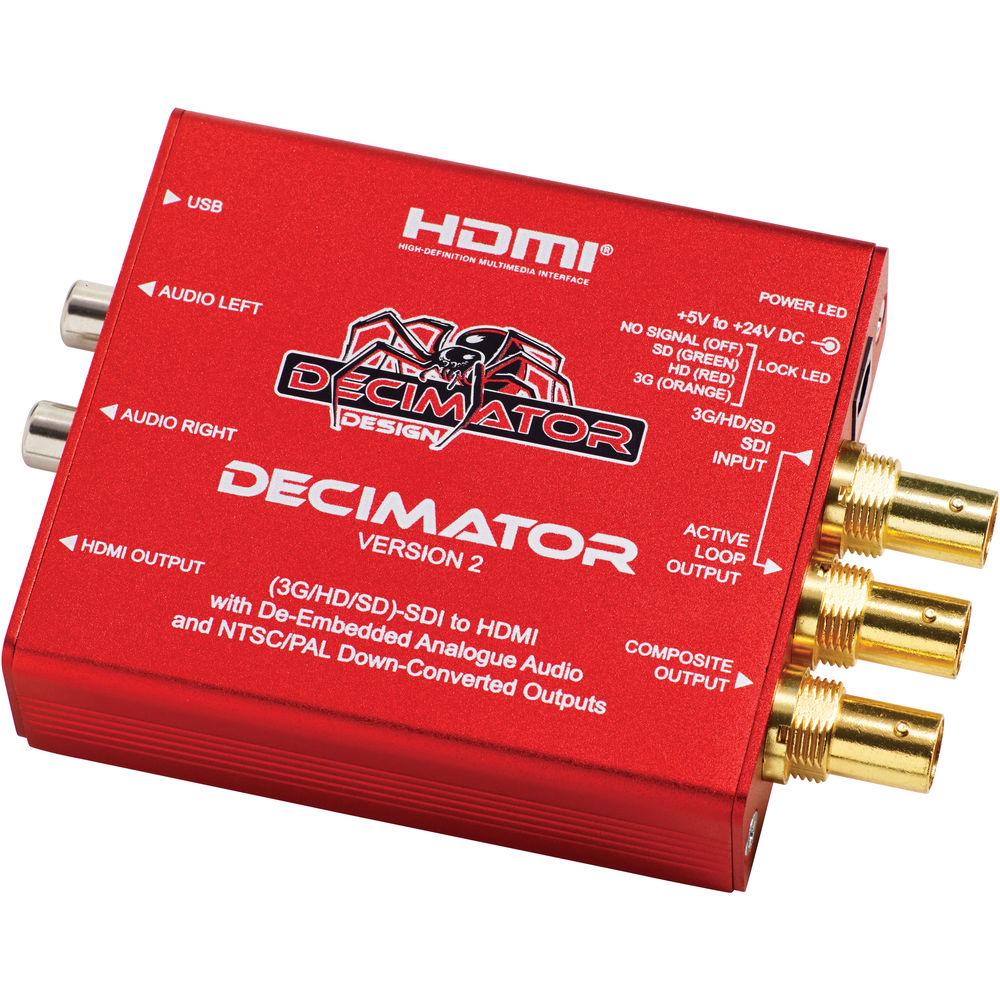

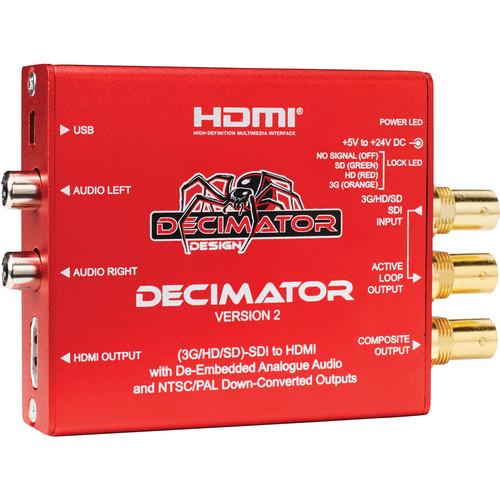

User Manual for DECIMATOR 2 3G HD SD-SDI to HDMI Converter with Built-In NTSC PAL Downscaler & Analog Audio Outputs Click to enlarge the picture
Contents of the user manual for the DECIMATOR 2 3G HD SD-SDI to
- Product category: Signal Converters Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Signal Converters
 |
User manual for the DECIMATOR 2 3G HD SD-SDI to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description Delivering more than just a basic SDI to HDMI converter, the DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter with Built-In NTSC/PAL Downscaler & Analog Audio Outputs from DECIMATOR provides you with a host of features in a small package suitable for location or a studio environment. The device auto detects the incoming signal, and handles signal switching based on the DIP switch settings you select. The converter maintains a 10-bit data path for your video signal, which minimizes scaling artifacts. It incorporates one SDI input that supports signals up to 3G-SDI, and features a loop through SDI output, HDMI output for the converted signal, and a composite out that automatically scales HD signals delivering either NTSC or PAL video.

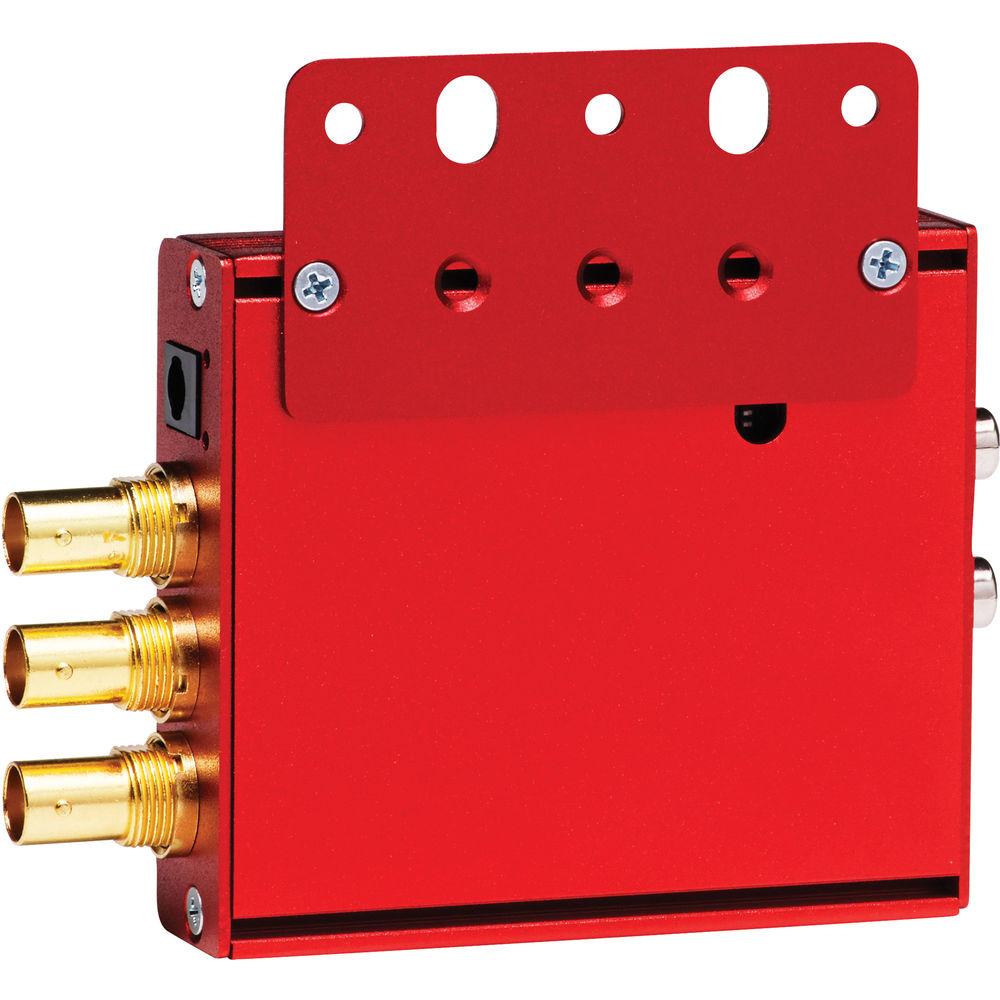

The unit passes closed captioning signals on the composite output, a useful feature for a broadcast facility. The HDMI output can display selectable frame markers or "Graticules" as well as up to 16 channels of audio meters. The unit also de-embeds the audio from the SDI stream, and makes it available as 2 channels of analog audio. External DIP switches allow you to select how the unit handles conversion to HDMI and SD video from SDI, and which stereo pair is available on the analog audio outputs. The converter features a locking DC power socket and a mounting bracket allowing you to attach it to a wall or possibly the back of a monitor. General - Simultaneously scales the signal on both the HDMI and composite outputs with no more than a 1 frame delay. SD-SDI signals are not scaled.
- USB port for control and firmware updates.
Composite Output - Composite output is selectable to either NTSC or PAL.
- The converter supports user selectable aspect ratio conversion of HD video to SD with:
- 16:9 to 16:9 Anamorphic
- 16:9 to 4:3 Letterbox
- 16:9 to 4:3 Center Extraction
- Passes EIA-708/608 Closed Captions to the composite output.
HDMI Output - Adjustable frame markers (Graticules) with:
- Separate enables for Safe Action, Safe title, and Center Cross
- Adjustable position for either Safe Action of Safe Title
- Adjustable colors for Safe Action, Safe Title, and Center Cross
- Text Overlays:
- Adjustable foreground and background colors
- Adjustable 16 character text field
- Input status display
- Displays 16 Channels of audio meters.
- Any four audio groups individually selectable.
- AES/EBU, VU, Extended VU, BBC, EBU, DIN, and Nordic Scales.
- Bar & Float, Bar only, or Float only
- Separate Bar and Float ballistics control
- Transparency and bar thickness adjustment
- Adjustable reference level and red, yellow, and green range adjustment
In the Box DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter with Built-In NTSC/PAL Downscaler & Analog Audio Outputs Universal Power Supply HDMI Cable USB Cable Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DECIMATOR 2 3G HD SD-SDI to HDMI Converter with Built-In NTSC PAL Downscaler & Analog Audio Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDECIMATOR DD-DEC-2 Specs | Video Formats | 3G - SMPTE 424 Mb/s 2.97 and 2.967 Gb/s
1080p: 60/59.94/50Hz
HD - SMPTE 292 Mb/s 274 Mb/s 296 Mb/s 1.485 and 1.435 Gb/s
1080i: 60/59.94/50 Hz
1080p/psf: 30/29.97/25/24/23.98 Hz
720p: 60/59.94/50/30/29.97/25/24/23.98 Hz
SD - SMPTE 259 Mb/s 270 Mb/s
525i: 59.94
625i: 50 | | Inputs | SD/HD/3G-SDI: 1 x BNC
Note: Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A | | Outputs | SD/HD/3G-SDI: 1 x BNC (loop through output)
SD-Composite: 1 x BNC (NTSC/PAL compatible)
HDMI: 1 x Type A (full size)
Analog Audio: 2 x RCA Jack(2-dBFS=-10dBu) | | Dip Switches | - NTSC or PAL Selection
- SD Pedestal
- Crop 16:9 to 4:3
- 16:9 or 4:3 Aspect Selection
- Stereo Pair selection for RCA Analogue Audio
- HDMI Output format select
| | LED Status Indicators | Power
Signal Lock | | Power | 5 to 24 VDC, 5W
Pin Positive | | Dimensions | 3.5 x 2.8 x 0.9" / 90 x 71 x 23 mm | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 10.2 x 6.2 x 2.6" |
