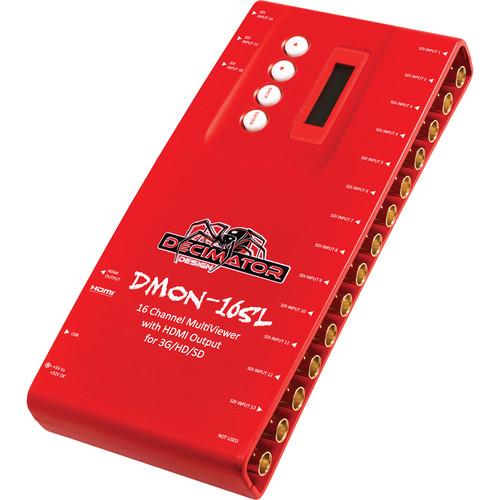

Product description Make an HDMI screen an SDI multiview monitor with DECIMATOR's DMON-16SL 16-Channel SDI Multiveiwer. The DMON-16SL has a built-in interface so it can be controlled without needing a computer. Adjustments can also be made via a computer connected with the included USB cable. Having both of these interfaces precludes the need for obscure LED status lights or complicated DIP switches. The DMON-16SL features 16 SDI inputs which support SD,HD, and 3G-SDI standards. Inputs have auto-detection so video streams are displayed correctly. Each input is separate from the others, allowing multiple video frame rates and resolutions to be displayed simultaneously when running as a multi-viewer. The on-screen layout can be changed to display the windows in the position and size of your choosing. A pass-through mode will show only a single input on the display at a time, scaling the video to match the resolution of your display. Note: Firmware Release 2.0.6 adds 3G-SDI Level B support for 1080p60/59.94/50 for this model, the ability to set the SDI output to 3G level A or B and convert between A and B, and custom UMDs. Features - Custom layouts with various standard layouts
- Load and restore custom layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Variable aspect ratios per window
In the Box DECIMATOR DMON-16SL 16-Channel SDI Multiviewer with HDMI Output Universal Power Supply HDMI Cable USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DECIMATOR DMON-16SL 16-Channel SDI Multiviewer with HDMI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDECIMATOR DD-16SL Specs | Inputs | 16 x SD/HD/3G-SDI
1 x USB | | Outputs | HDMI Type A | | Video Input Format | 3G-SDI (SMPTE 424M@2.97 and 2.967 Gb/s):
• 1080p@60/59.94/50 Hz
HD-SDI (SMPTE 292M/274M/296M@1.485 and 1.435 Gb/s):
• 1080i@60/59.94/50 Hz
• 1080p/psf@30/29.97/25/24/23.98 Hz
• 720p@60/59.94/50/30/29.97/25/24/23.98 Hz
SD-SDI (SMPTE 259M@270 Mb/s):
• 625i50 Hz
• 525i59.94 Hz | | Video Output Format | HDMI:
• 1080p@60/59.94/50 Hz
• 1080i@60/59.94/50 Hz
• 1080p@30/29.97/25/24/23.98 Hz
• 720p@60/59.94/50/30/29.97/25 Hz
• 625i50 Hz
• 525i59.94 Hz | | Power Input | 5 to 35 VDC
Center positive | | Dimensions | 8.7 x 4.1 x 1.2" / 220 x 103.7 x 29.5 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 13.9 x 6.2 x 2.5" |
