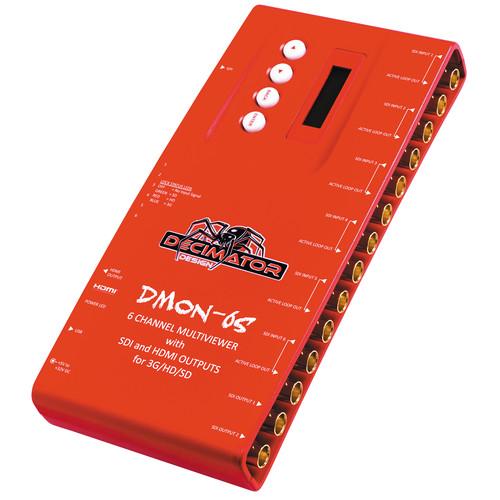

User Manual for DECIMATOR DMON-6S 6 Channel Multi-Viewer with HDMI & SDI Outputs Click to enlarge the picture
Contents of the user manual for the DECIMATOR DMON-6S 6 Channel Multi-Viewer with
- Product category: Multiviewer Processors DECIMATOR
- Brand: DECIMATOR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DECIMATOR Multiviewer Processors
|
User manual for the DECIMATOR DMON-6S 6 Channel Multi-Viewer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DECIMATOR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DECIMATOR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DECIMATOR product will considerably shorten its lifespan!
|
Product description Flexibility, compact form factor, and operation without a computer make the Decimator DMON-6S 6 Channel Multi-Viewer with HDMI & SDI Outputs a valuable tool on location and in the studio. The unit can be used as either a one to six channel Multi-Viewer or as a six to one input multiplexer. It supports six independent SDI inputs with active loop-through outputs, or you can view all six inputs on one optional monitor. You can also Multiplex the 6 input signals, allowing you to transmit the six SDI signals over a single output. It supports audio embedded in the SDI stream, and supports RS422/485 protocols that allows you to select tally display and control UMD (under monitor display) position and size.
The built-in LCD menu screen and control buttons, allows you to access menu functions without needing to connect to an external computer or utilize DIP switches for settings. The multi-view output supports and displays inputs with different formats and frame rates at the same time, and the pass-through mode allows any of the six inputs to be selected for output via the SDI and HDMI outputs. you can select from premade display layouts or create and save your own custom layouts, and with up to 32 GPI, you can interface with optional devices for tally and remote switching. Note: Firmware Release 2.0.6 adds 3G-SDI Level B support for 1080p60/59.94/50 for this model, as well as the ability to set the SDI output to 3G level A or B and convert between level A and B. - The DMON-6S is a small form factor 3G/HD/SD-SDI 1 to 6 channel Multi-Viewer or 6 to 1 input multiplexer/portable converter, that incorporates an LCD and button control to set up and control the unit.
- 6 x (3G/HD/SD)-SDI active loop copies of each input
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Safe Action and Safe Title overlay per window with individual enables and adjustment
- Centre Cross overlay per window with individual enable
- Audio ID overlay
- Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
- Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Linked (3G/HD/SD)-SDI and HDMI outputs
- 6 x (3G/HD/SD)-SDI inputs with auto detection (6 Formats supported in total)
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per quadrant
- Pass-Through mode allowing any of the 6 inputs to be selected for output
- In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
- the unit supports:
- 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
- USB port for control and firmware updates
- The unit features a threaded locking power connector that helps guard against kick outs.
In the Box DECIMATOR DMON-6S 6 Channel Multi-Viewer with HDMI & SDI Outputs Universal Power Supply HDMI Cable USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DECIMATOR DMON-6S 6 Channel Multi-Viewer with HDMI & SDI Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDECIMATOR DD-6S Specs | SDI Input & Output Formats | 3G - SMPTE 424M@2.97 and 2.967Gb/s
1080p: 60/59.94/50Hz
HD - SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
1080p/psf: 30/29.97/25/24/23.98Hz
1080i: 60/59.94/50Hz
720p: 60/59.94/50/30/29.97/25/24/23.98Hz
SD - SMPTE 259M@270Mb/s
525i: 59.94Hz
625i: 50Hz | | HDMI Output Formats | 1080p: 60/59.94/50/30/29.97/25/24/23.98Hz
1080i@60/59.94/50Hz
720p@60/59.94/50/30/29.97/25Hz
525i: 59.94Hz
625i: 50Hz | | Inputs | SD/HD/3G-SDI: 6 x BNC | | Outputs | SD/HD/3G-SDI: 6 x BNC (Active Loop-through)
SD/HD/3G-SDI: 2 x BNC
HDMI: 1 x Type A | | LED Indicators | Power
Signal Lock and Rate: 6 x | | Power | 5 to 32 VDC
Pin Pos Connector | | Dimensions | 8.7 x 4.1 x 1.2" / 220 x 103.7 x 29.5 mm | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 12.4 x 6.4 x 2.5" |
