User Manual for DECIMATOR MD-HX Miniature HDMI SDI Cross Converter with Scaling & Frame Rate Conversion Click to enlarge the picture
Contents of the user manual for the DECIMATOR MD-HX Miniature HDMI SDI Cross
- Product category: Signal Converters DECIMATOR
- Brand: DECIMATOR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DECIMATOR Signal Converters
 |
User manual for the DECIMATOR MD-HX Miniature HDMI SDI Cross contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DECIMATOR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DECIMATOR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DECIMATOR product will considerably shorten its lifespan!
|

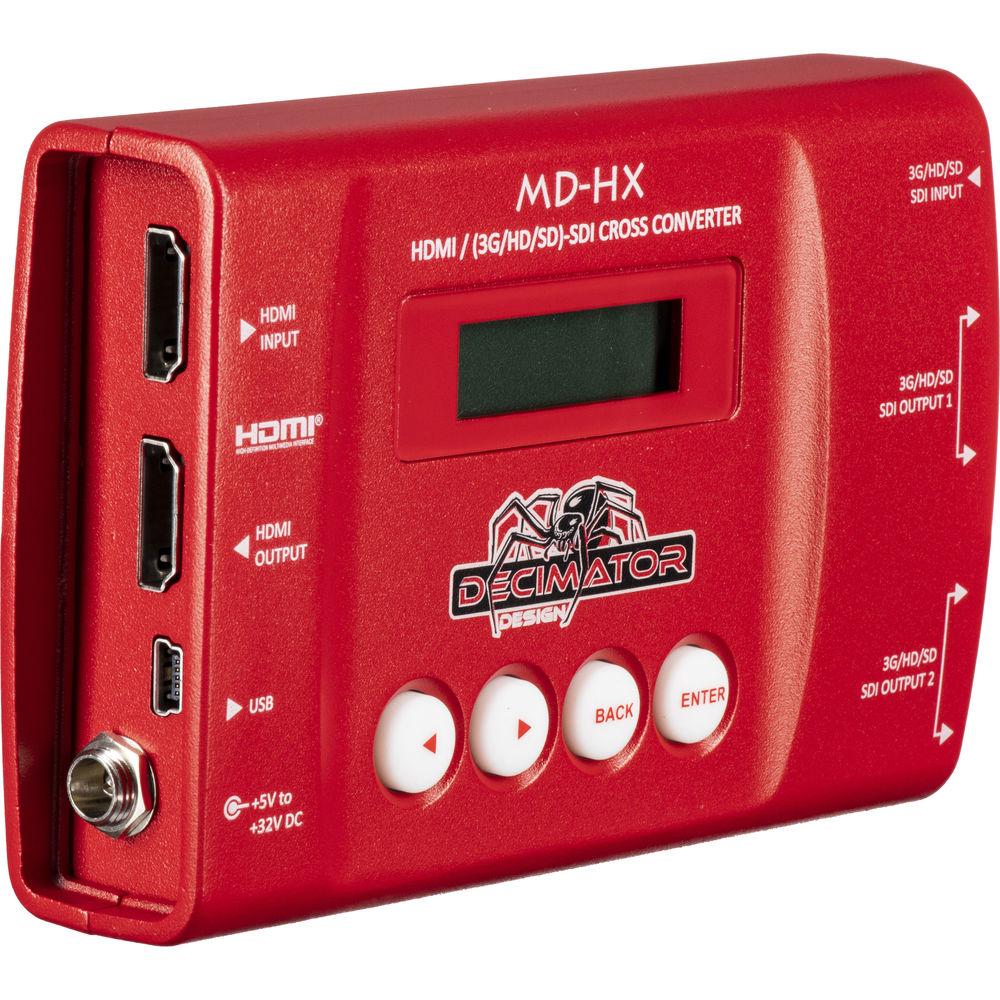

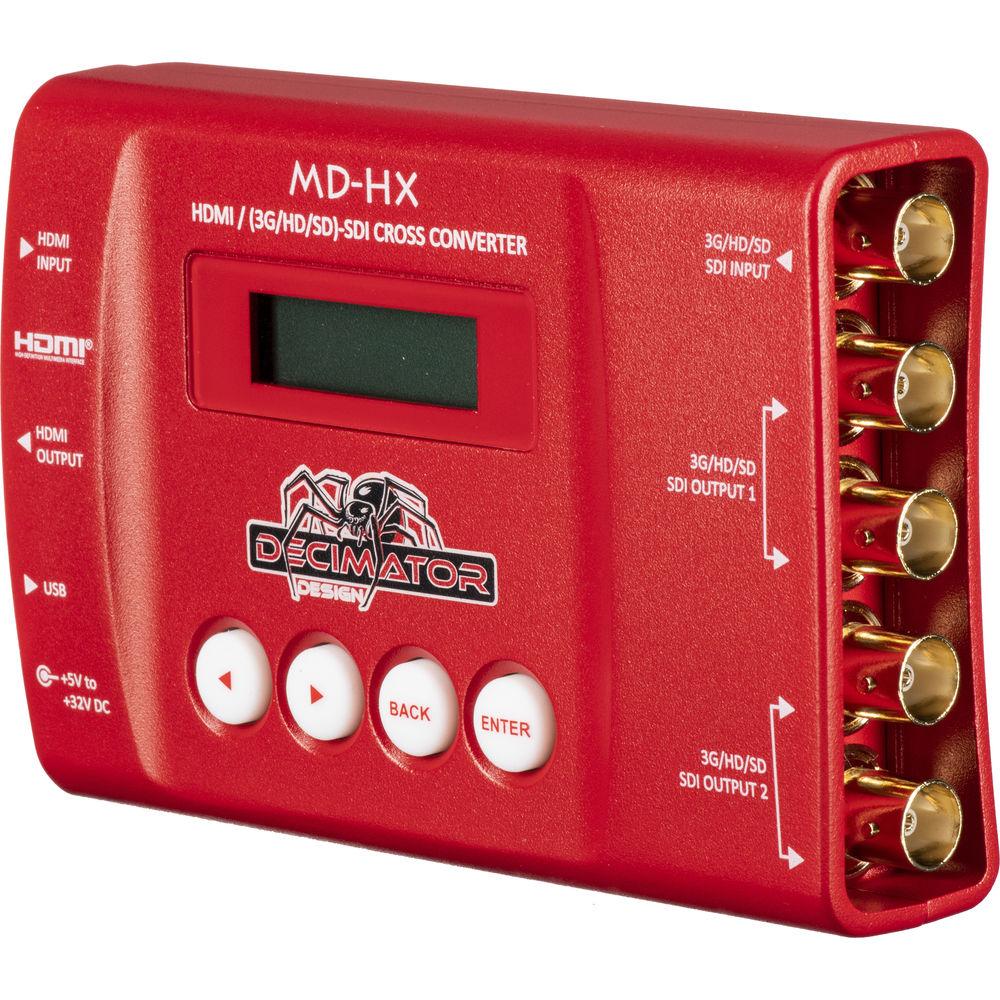

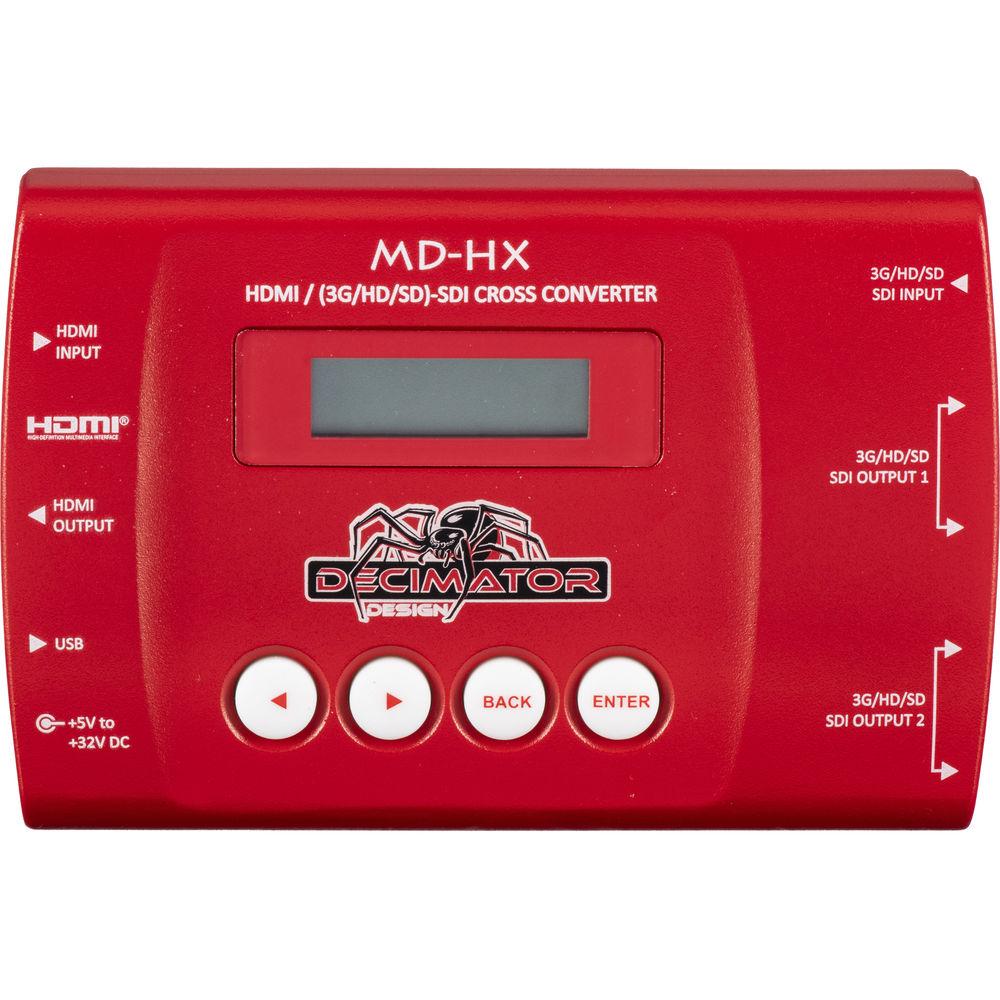

Product description Combining capabilities usually reserved for a computer controlled converter the DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC. The MD-HX features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It features a built-in scaler and frame rate converter as well, allowing you to convert the input signal to your required output standard.
The MD-HX features one HDMI output and two pairs of 3G-SDI outputs, controllable via fourteen selectable conversion modes, providing you with a variety of modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a power supply with locking power cable to prevent accidental power loss during use. Note: Firmware Release 2.0.6 adds 3G-SDI Level B support for 1080p60/59.94/50 for this model, as well as the ability to set the SDI output to 3G level A or B and convert between A and B. It also enables horizontal and vertical image flipping via the built-in scaler. - 14 Conversion Modes
- 1. SDI In to HDMI and SDI Out
2. SDI In to SDI Out and HDMI In to HDMI Out
3. SDI In to SDI Out and Scaled SDI In to HDMI Out
4. SDI In to SDI Out and Scaled HDMI In to HDMI Out
5. HDMI In to SDI Out and SDI In to HDMI Out
6. HDMI In to HDMI and SDI Out
7. HDMI In to SDI Out and Scaled SDI In to HDMI Out
8. HDMI In to SDI Out and Scaled HDMI In to HDMI Out
9. Scaled SDI In to SDI Out and SDI In to HDMI Out
10. Scaled SDI In to SDI Out and HDMI In to HDMI Out
11. Scaled SDI In to HDMI and SDI Out
12. Scaled HDMI In to SDI Out and SDI In to HDMI Out
13. Scaled HDMI In to SDI Out and HDMI In to HDMI Out
14. Scaled HDMI In to HDMI and SDI Out - HDMI to SDI / SDI to HDMI
- The HDMI or SDI input can be scaled and/or frame rate converted to the required standard.
- Four SD/HD/3G-SDI outputs allow the converter to be used as a 1 to 4 distribution amplifier. SDI output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
- The MD-HX incorporates an LCD and button control system. This gives you access to features that have usually require a computer. Adjusting DIP switches or having access to a computer to change a simple setting are no needed with the MD-HX.
- The audio pairs in the SDI and HDMI outputs can be rearranged as required.
- The unit incorporates a USB port for control and firmware updates.
In the Box DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion Universal Power Supply HDMI Cable USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DECIMATOR MD-HX Miniature HDMI SDI Cross Converter with Scaling & Frame Rate Conversion in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDECIMATOR DD-HX Specs | Inputs | HDMI: 1 x Type A
SD/HD.3G-SDI: 1 x BNC | | Outputs | HDMI: 1 x Type A
SD/HD.3G-SDI: 4 x BNC (2 x Active Loop Through or addition outputs, 2 x output) | | SDI Formats Supported | 3G: SMPTE 424M 2.97 and 2.967 Gb/s
1080p: 60/59.94/50Hz
HD: SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s
1080i: 60/59.94/50 Hz
1080p/psf: 30/29.97/25/24/23.98 Hz
720p: 60/59.94/50/30/29.97/25/24/23.98 Hz
SD: SMPTE 259M 270 Mb/s
525i: 59.94
625i: 50 | | Control Buttons | - SDI output source from HDMI IN, SDI IN, Scaler
- SDI output 1 is loop
- HDMI output type and source from HDMI IN, SDI IN, Scaler
- Scaler source, reference, format and Aspect Controls
- Audio pair routing for HDMI and SDI output
- LCD backlight off time
- Back to Status time
| | Power | 5 to 32 VDC
Pin Positive | | Dimensions | 3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm | | | | Package Weight | 1.79 lb | | Box Dimensions (LxWxH) | 10.1 x 6.2 x 2.6" |
