Product description

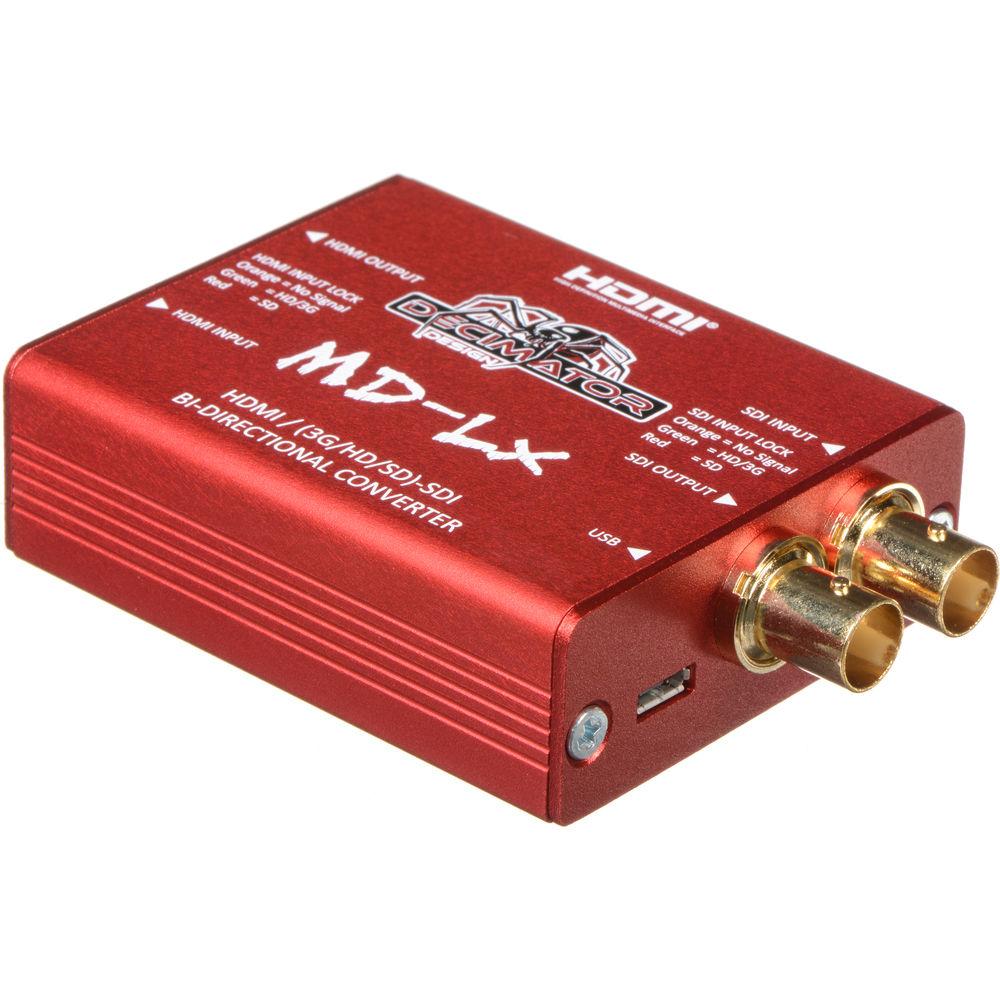

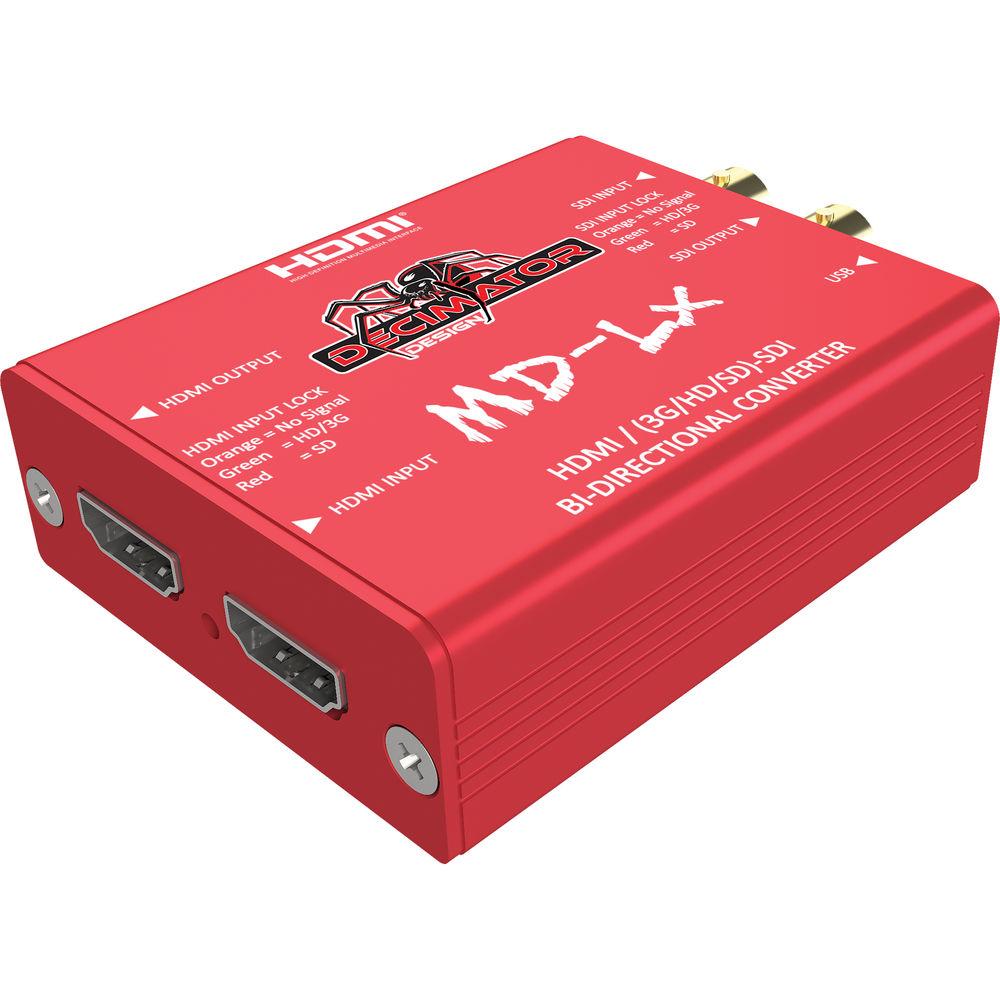

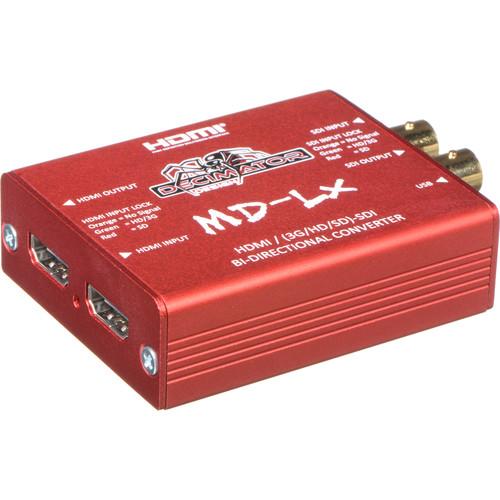

The DECIMATOR MD-LX is a pocket-sized bidirectional converter featuring an HDMI input and output on one side, and 3G/HD/SD-SDI input and output on the other. It supports up to Full HD 1080p60 resolution and offers multiple input/output conversion modes.
    Conversion Modes
    • Auto select: Active input to all outputs, or SDI-to-HDMI and HDMI-to-SDI if both inputs are active
    • HDMI input to SDI output and SDI input to HDMI output
    • SDI input to HDMI and SDI outputs
    • HDMI input to HDMI and SDI outputs
    Other Features
    • Supports 3G Level A and B and allows for conversion between both
    • USB port for power, control, and firmware upgrades
    • HDMI and SDI input locks
In the Box DECIMATOR MD-LX HDMI/SDI Bidirectional Converter
  • Power Supply
  • USB Cable
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the DECIMATOR MD-LX HDMI SDI Bidirectional Converter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    DECIMATOR DD-LX Specs

    Input 1 x HDMI type A
    1 x 3G/HD/SD-SDI
    1 x Micro-USB port for power, control, and firmware updates
    Output 1 x HDMI type A
    1 x 3G/HD/SD-SDI
    HDMI Format Support 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60
    1920 x 1080i 50/59.94/60
    1280 x 720p 25/29.97/30/50/59.94/60
    625i 50
    525i 59.94
    SDI Format Support 3G-A or 3G-B:
    SMPTE 424M at 2.97 and 2.967 Gb/s
    1080p 50/59.94/60

    HD:
    SMPTE 292M/274M/296M at 1.485 and 1.435 Gb/s
    1080p 23.98/24/25/29.97/30
    1080PsF 23.98/24/25/29.97/30
    1080i 50/59.94/60
    720p 23.98/24/25/29.97/30/50/59.94/60

    SD:
    SMPTE 259M at 270 Mb/s
    625i 50
    525i 59.94
    Power USB: 4.4 to 5.25 VDC
    Uses under 2.5 W
    Dimensions 2.4 x 2.9 x 0.9" / 6 x 7.4 x 2.3 cm
    Package Weight 0.74 lb
    Box Dimensions (LxWxH) 6.2 x 5.1 x 2.7"
