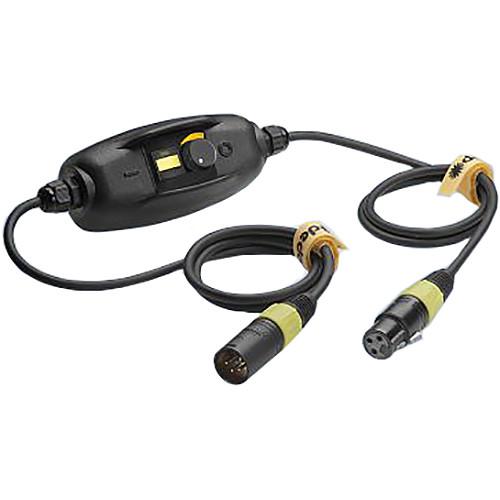

User Manual for Dedolight 12V 24V In-Line Dimmer for Classic Dedolight Click to enlarge the picture
Contents of the user manual for the Dedolight 12V 24V In-Line Dimmer for
- Product category: Dimmers Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight Dimmers
|
User manual for the Dedolight 12V 24V In-Line Dimmer for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The 12V / 24V In-Line Dimmer for Classic Dedolight is designed for use with Dedolight battery-powered fixtures and helps regulate the input voltage as well as provide a smooth dimming range from 3-100%. The dimmer enables a soft start when lamps are switched on, recognizes defective or missing lamps, alerts you with a blinking LED, and protects the lamps from short circuiting or overloading. It has a robust, yet small housing. - When the voltage selector is switched to 12 VDC, you can feed up to 18V and have the maximum output voltage limited to 11.8V. This is suitable for 12V—20, 50, 75, and 100W lamps.
- When the voltage selector is switched to 24 VDC, you can feed up to 36V and have the maximum output voltage limited to 23.5V. This is suitable for 24V—50, 100, and 150W lamps.
- Low voltage cutoff at 10.2V and 20.4V, respectively, in order to protect the batteries.
- When the input voltage is lower than 12V/24V, depending on the mode, 100% maximum light output cannot be reached.
In the Box Dedolight 12V / 24V In-Line Dimmer for Classic Dedolight Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight 12V 24V In-Line Dimmer for Classic Dedolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLDIM-BAT Specs | Voltage | 12 V and 24 V Settings | | Lumens | 40 lumens per watt | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.8 x 6.4 x 6.3" |
