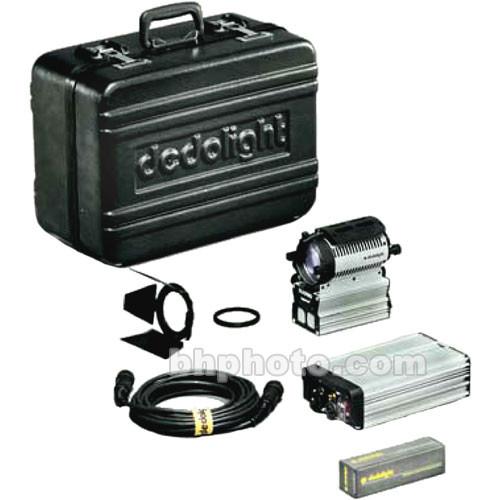

User Manual for Dedolight 200W Sundance HMI 1-Light Hard Kit with Case Click to enlarge the picture
Contents of the user manual for the Dedolight 200W Sundance HMI 1-Light Hard
- Product category: HMI & Plasma Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight HMI & Plasma Lights
|
User manual for the Dedolight 200W Sundance HMI 1-Light Hard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description This is a compact, lightweight Dedolight DLH200D Sundance 200W HMI 1-Light Kit based around the Dedolight 200-watt daylight fixture for single-ended HMI lamps. Used in conjunction with the included electronic ballast, the 200D brings the same level of superior, sophisticated performance to the world of HMI, as the 436 and 650 provide for tungsten. This fixture has a flood-spot intensity variation of 1:20. Its beam spread can vary from 46-4° from the position of the fixture. The electronic ballast is multi-voltage, auto-sensing between 90-260 VAC. It has a dimming switch for full or half power. This kit includes a light shield ring, a 4-leaf barndoor set, a head to ballast cable, an HMI bulb, and a hard kit case. Add a light stand, scrims, and other accessories of your choice. - Clean Beam
- Extraordinary clean beam with perfectly even distribution and no stray light.
- Dual Lens Optics
- Patented focus mechanism with dual lens optics and focusing mechanism.
- Super Flood
- Provided by a unique second lens which moves towards the lamp and mirror when going "wide" to produce an enhanced flood angle.
- Super Spot
- Provided by a simultaneous movement of the second lens, moving in the opposite direction, away from the lamp and mirror, producing a tighter spot and enhanced light output.
- Dimmable
- Dims to half power with the included electronic ballast without any change in color temperature.
- Hard Kit Case
- For ease of transport and storage. It measures 18 x 13 x 8.6" (46 x 33 x 22cm).
In the Box Dedolight 200W Sundance HMI 1-Light Hard Kit with Case (90-260 VAC) 200W HMI Head (DLH200D) Electronic Ballast (DEB200D) 26' Head to Ballast Cable (DPOW200D) 4-Leaf Barndoor Set (DBD) 200W HMI Bulb (DL200DHRB) Hard Kit Case (DHC200D) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight 200W Sundance HMI 1-Light Hard Kit with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLH200D Specs | | | Rating | 200 W | | Socket (Lampholder) | 2-pin | | Lens (Condenser) | Clear | | Mounting | 5/8" / 16 mm stand mount | | Weight | 2.8 lb / 1.3 kg | | Dimensions | 9.3 x 5 x 3.5" / 23.6 x 12.7 x 8.9 cm | | | | Rating | 100-200 W, 90-260 VAC, auto-sensing | | Cable | 26.2' / 8 m | | Weight | 4.2 lb / 1.9 kg | | Dimensions | 9.4 x 5 x 2.8" / 23.8 x 12.8 x 7.2 cm | | Kit Weight | 13.5 lb / 6.1 kg |
