Product description This is a versatile, 600 total watt Sundance HMI 3-Light Kit with Hard Case based around two Dedolight 200W HMI spotlights and one 200W Soft Light fixture. Used in conjunction with its electronic ballast, the 200D brings the same level of superior, sophisticated performance to the world of HMI, as the 436 and 650 provide for tungsten. This fixture has a flood/spot intensity variation of 1:20. Its beam spread can vary from 46-4° from the position of the fixture. The DLH200S soft light also works with its included ballast as a 5600K daylight source, or as a 3200K tungsten source. Either way, soft, even lighting is achieved with the included small (16 x 22") silver dome softbox. The electronic ballast is multi-voltage, auto-sensing between 90-260 VAC. It has a dimming switch for full or half power. In addition to the light fixtures, this kit also includes a light shield ring, softbox, ballasts, 4-leaf barndoors, filters, head-to-ballast cables, bulbs, light stands, and a hard kit case. Add scrims and other accessories of your choice. - Versatile
- This kit works as a 5600K daylight, or tungsten 3200K HMI kit, by changing the bulb in the DLH200S, and adding the included tungsten conversion filters to the DLH200D fixtures.
- Clean Beam
- A clean beam with perfectly even distribution and no stray light.
- Dual Lens Optics
- Patented focus mechanism with dual lens optics and focusing mechanism.
- Super Flood
- Provided by a unique second lens which moves towards the lamp and mirror when going wide to produce an enhanced flood angle.
- Super Spot
- Provided by a simultaneous movement of the second lens, moving in the opposite direction, away from the lamp and mirror, producing a tighter spot and enhanced light output.
- Dimmable
- Dims to half power with the included electronic ballast without any change in color temperature.
- Light Stands
- Offer support up to a height of 7 feet.
- Hard Kit Case
- For ease of transport and storage. It measures 22.8 x 17 x 11.4" (58 x 43 x 29 cm).

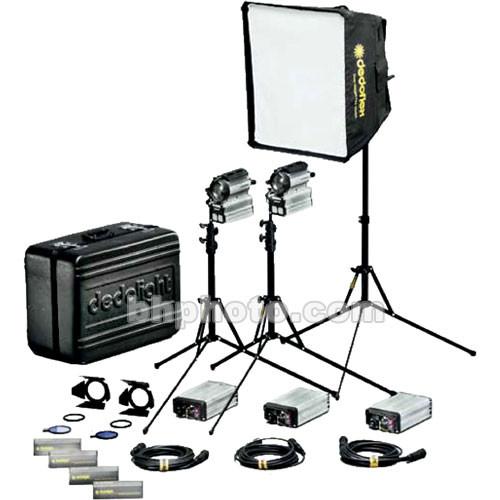

In the Box Dedolight 200W Sundance HMI 3-Light Kit with Hard Case (90-260 VAC) 2 x 200W HMI Heads (DLH200D) 200W Soft Light Head (DLH200S) 3 x Electronic Ballasts (DEB200D) 3 x 26' Head to Ballast Cables (DPOW200D) 2 x 4-Leaf Barndoor Sets (DBD) Small Silverdome Softbox (DSBSS) Light Shield Rings (DPLS) 2 x Tungsten Conversion Filters (DTCF) 2 x 200W HMI Bulbs, Blackened (DL200DHRB) 200W HMI Bulb, Clear (DL200DHR) 200W Tungsten Bulb (DL200THR) 7' Light Stands (DST) Hard Kit Case (DHC200D) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight 200W Sundance HMI 3-Light Kit with Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLH200D Specs | | | Rating | Each Fixture: 200 W | | Socket (Lampholder) | 2-pin | | Lens (Condenser) | DLH200D: Clear
DLH200S: Not applicable | | Mounting | 5/8" / 16 mm stand mount | | Weight | DLH200D: 2.8 lb / 1.3 kg
DLH200S: 2.8 lb / 1.3 kg | | Dimensions | DLH200D: 9.3 x 5 x 3.5" / 23.6 x 12.7 x 8.9 cm
DLH200S: 6.6 x 5.1 x 6.8" / 16.7 x 13.1 x 17.4 cm (including yoke) | | | | Rating | 100-200 W, 90-260 VAC, auto sensing | | Cable | 26.2' / 8 m | | Weight | 4.2 lb / 1.9 kg | | Dimensions | Ballast: 9.4 x 5 x 2.8" / 23.8 x 12.8 x 7.2 cm
Kit in Case: 22.8 x 17 x 11.4" / 58 x 43 x 29 cm | | Kit Weight | 13.5 lb / 6.1 kg | | | | Package Weight | 59.25 lb | | Box Dimensions (LxWxH) | 24.4 x 18.3 x 12.7" |
