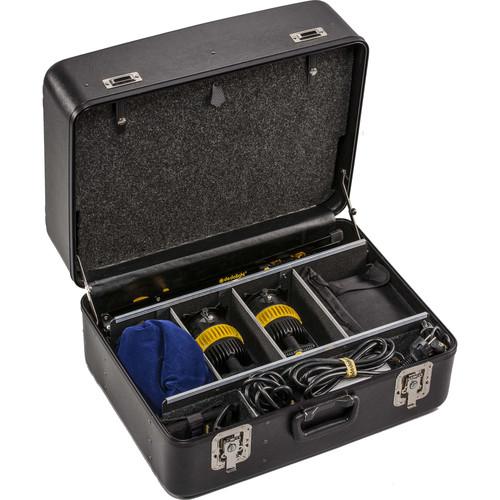

Dedolight 3-Light Daylight Standard Kit

User Manual for Dedolight 3-Light Daylight Standard Kit

• Product category: LED Lights Dedolight
• Brand: Dedolight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dedolight LED Lights

Product description

• Mobile DLED4.1-D LED Light Head (Daylight) without Power Supply Having paved the way with the on-camera Ledzilla LED and the 1 x 1' stand-mounted Felloni Dedolight continues to forge ahead with the introduction of the Mobile DLED4.1-D LED Light Head (Daylight). Again using aspheric lens elements results in an amazing 1:20 flood to spot ratio with a beam angle of 60-4 degrees that delivers 27,000 lux in spot mode at 3.0' with no UV radiation emitted. A wide angle attachment increases coverage 85-54 degrees. The 5600K daylight balance blends in seamlessly in outdoor situations and is ideal for location and ENG work, and as is characteristic of LED sources, generates negligible heat. The DLED4.1-D is powered by the 100 to 260 VAC DT4.0-1 or DT4.0-1-DMX which offers remote control of the light's 100-20% dimmable light intensity. A DC power supply is also available for battery power sources up 18V. A full line of accessories from scrims and filters to Dedolight Imager projection attachments is available. Note: Requires purchase of power supply
  • State-of-the-art LED light source with features exclusively developed by Dedolight
  • Dedolight patented aspherical optics
  • Daylight color balance is ideal for location work, guaranteeing maximum output and minimum time spent fumbling with filters
  • Provides astoundingly high efficiency in output
  • Unprecedented wider and tighter focusing range
  • Dedolight clean beam concept. Controlled precision beam with no stray light outside the fixture and perfectly even light distribution within the beam
  • Complete light-shaping control:
    Scrims, graduated gray filters, aspherical wide-angle attachments with rotating barndoor leaves
  • Dedolight imager projection attachments for light framing, soft edge light framing with eye filters, gobo projection, background effect projection, slide projection
• dedocolor FELLONI 50° High Output Daylight LED Light With excellent color rendition due to the 576-LED array's high CRI of 95, the dedocolor FELLONI 50° High Output Daylight LED Light from Dedolight is designed to work in the most demanding situations. This model features a color temperature of 5600K, useful for matching other daylight-balanced lighting sources. Also, even with an output of 2750 lux at 3', the light is extremely efficient, with a power consumption of 24W. In addition to these features, the dedocolor FELLONI has a weather-resistant design that will keep it functioning when a little rain gets on it.

  The light can be powered with a universal 100-240 VAC power supply or V-mount batteries, and it has a D-Tap input. There is also an on-board dimmer that is removable for use with the included 8' remote cable. The front frame of the FELLONI is magnetic for use with filter holders. Included with the light is a distance diffuser that softens light without reducing output too dramatically.
• Projection Attachment w/85mm f/2.8 Lens Used as a focusing snoot, the Dedolight Projection Attachment creates an area of light with either a soft or hard edge. It is supplied with an 85mm f/2.8 lens. An adjustable 18-leaf iris diaphragm, 60, 150 and 185mm lenses are also available separately.
  • Offers great versatility with a spring-loaded accessory slot that accepts a wide variety of optional accessories
  • An optional adjustable 18-leaf iris diaphragm allows the light to be focused in a tighter circle than is possible with the Projection Attachment alone.
  • A slide holder which will hold conventionally mounted 35mm slides is available. This allows the slide to be projected onto a set or background. (A Heat Filter should be used to prolong the life of the slide.)
  • An available gobo holder holds metal patterns or gobos that allow light to pass through, forming a pattern on a set or background.

• Transport Hard Case for KLED2x1F Light Kit

• Limited 1-Year Warranty

• Diffuser

• Filter Holder Strips

• 8' Dimmer Cable

• AC Power Supply

• Limited 1-Year Warranty

• Storage Pouch

Also Includes

• Softbox for Felloni LED Light

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mobile DLED4.1-D LED Light Head (Daylight) without Power Supply

  Beam Angle	4 to 60°
  Color Temperature	5600K
  Cooling System	Passive
  Dimming	Yes, 20 to 100%
  Display	None
  Fixture Dimensions	Flood: 6.4 x 4.3 x 3.9" / 16.2 x 11.0 x 10.0 cm Spot: 7.9 x 4.3 x 3.9" / 20.0 x 11.0 x 10.0 cm
  Fixture Weight	3.0 lb / 1.36 kg

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 260 VAC, 50 / 60 Hz
  DC Input Power	10.2 to 18 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	45 W

  IP Rating	IP40
  Protection Class	III

  Box Dimensions (LxWxH)	8.25 x 4.6 x 4.0"

• dedocolor FELLONI 50° High Output Daylight LED Light

  Beam Angle	50°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes Continuous
  Display	None
  Number of LEDs	576
  Fixture Dimensions	12.0 x 12.0 x 3.0" / 30.4 x 30.4 x 7.6 cm 15.0 x 13.9 x 3.0" / 38.0 x 35.2 x 7.6 cm (Including Yoke)
  Fixture Weight	4.4 lb / 2 kg

  Battery Plate	1 x V-Mount
  Power Input Connector	D-Tap

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	6.8 to 10 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	24 W

  Cable Length	8' / 2.5 m

  IP Rating	None

  Box Dimensions (LxWxH)	16.2 x 15.9 x 4.5"

• Projection Attachment w/85mm f/2.8 Lens

  Weight

  15.4 oz (437 g)

  Box Dimensions (LxWxH)	8.0 x 5.3 x 5.0"

• Transport Hard Case for KLED2x1F Light Kit
