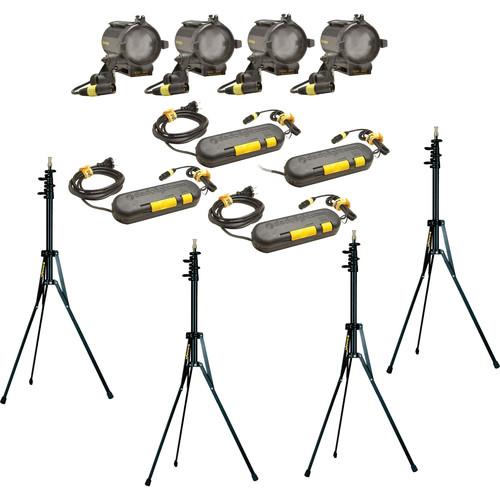

User Manual for Dedolight Basic 4-Light Kit Click to enlarge the picture
Contents of the user manual for the Dedolight Basic 4-Light Kit
- Product category: Tungsten Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight Tungsten Lights
|
User manual for the Dedolight Basic 4-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description This Dedolight Basic 4-Light Kit is based on the DLH4 light head--it's extremely compact yet (with its dual-lens concept) provides high light output. With a 150W lamp in the flood position, its light output is greater than a 300 watt Fresnel studio fixture. In the spot position, it equals or exceeds a 1000 watt Fresnel studio fixture. The inexpensive, specially designed lamps provide precision beam aim, coupled with long life expectancy. Each DT24-1U Power Supply/Control Unit powers its own light, equipped with 150W lamps at a nominal voltage of 24V. Its AC power input is set for 117 AC voltage. The kit also includes stands, barndoors, bulbs, clamp, flexible stand extension, accessory box, clamp, wall holder, and a hard, compartment divided case. - Powering Options
- Wide range of powering options, from battery to AC power with color temperature control
- Mirror
- A high quality mirror reflects light through meniscus and condenser lenses, providing a much higher light output than would be expected
- Advanced Optical Design
- Due to an advanced optical design, these heads create a flat, even bright light, with a narrow beam spread
- Clean Beam
- Precision lighting by a clean beam, with practically no stray light
- Compact
- The hard, compartmentalized case measures only 22.5 x 17 x 10.25" (57 x 43 x 26 cm).
In the Box Dedolight Basic 4-Light Kit 4 x Universal 100-150W Spotlight frdczdbruq 4 x 1 Head Power Control Units, Cables (117V AC) (DT24-1U) 4 x Compact Light Stand (7') 4 x 8-Leaf Barndoor Set with Gel Clips (5.5") 4 x Gel Filter Holder 3x3" 8 x DL150 Lamp (150W/24V) 4 x Light Shield Ring Flexible Light Stand Extension Light Clamp 2 x Plastic Accessory Cases (DLBOX) Mounting Plate with 5/8" Stud DCHD Heavy Duty Transport Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Basic 4-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLH4 Specs | Rating | Each Head: 150 watts max. | | Socket (Lampholder) | GY6.35 2-pin glass base | | Lens (Condenser) | Dual lens concept | | Reflector (Mirror) | High quality mirror | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | Integral to each power supply | | Focusing | Continuously variable | | Weight | Each Head: 1.2 lb (0.54 kg)
Each Power Supply: 1.5 lbs (0.7 kg) | | Dimensions | Each Head: 6.75 x 4.9 x 4.25" (17.1 x 12.4 x 10 cm)
Each Power Supply: 9.2 x 2.8 x 1.8" (23.4 x 7.2 x 4.5 cm) | | Kit Weight | 33.4 lbs (15.2 kg) |
