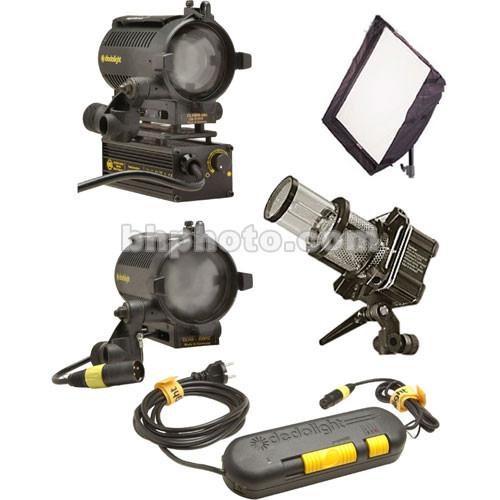

User Manual for Dedolight Basic Compact 3-Light Kit Click to enlarge the picture
Contents of the user manual for the Dedolight Basic Compact 3-Light Kit
- Product category: Tungsten Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight Tungsten Lights
|
User manual for the Dedolight Basic Compact 3-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The Dedolight Basic Compact 3-Light Kit features two dimmable focusing lights and one softbox light, along with light-shaping devices such as filter holders, gel filters, and barndoors. The DLHM4-300E is a 150W fixture with an on-board dimmer. The DLH4 is a fixture with an external dimmer that may run from AC or your car's battery with the included cigarette adapter cable. The DLH1000S is an open-face fixture with integral speed ring adapter that accepts the included small (16 x 22") silver-interior softbox. This kit is designed for operation on 230 VAC. Ideal for the very small, mobile video crew. - The padded soft case provides protection of the kit components during transport and storage.
It measures: 23.6 x 9.5 x 10" (60 x 24 x 25.5 cm). - All necessary bulbs are provided, plus extras for the DLH4 and DLH400-3.
In the Box Dedolight Basic Compact 3-Light Kit Universal 100-150W Spotlight abtycswvruvywxwqcadcvwzsvebefxtdesvsu DLHM4-300E 150W Light Head (230 VAC) DLH1000S 1K Soft Light Head (120-230V) Power Supply with In-Line Dimmer (220-240V) Dedoflex Small Softbox (Silver, 16 x 22") Battery Cable, XLR to 4 Pin for DLH4 - 4' Cigarette Lighter Cable for DLH3, 4 2 x 8-Leaf Barndoor Set with Gel Clips (5.5") 2 x Gel Filter Holder 3x3" 20-Piece 3x3" Filter Set 3 x Compact Light Stand (7') 4 x DL150 Lamp (150W/24V) 2 x Lamp - 100 watts/12 volts DELDL800HX DSC1 Soft Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Basic Compact 3-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight S1-B-E Specs | Rating | DLH4: 100-150 W, 12 or 24 V
DLHM4-300E: 150 W, 24 V
DLH1000S: 1000 W, maximum | | Socket (Lampholder) | DLH4: GY6.35
DLHM4-300E: GY6.35
DLH1000S: G9.5 | | Lens (Condenser) | DLH4, DLHM4-300E: Dual lens optical concept
DLH1000S: Not applicable | | Reflector (Mirror) | DLH4, DLHM4-300E: Polished
DLH1000S: Silver softbox interior | | Mounting | 5/8" 2-axis Baby receptor | | Yoke | Not applicable | | Cable | DLH4: 26.2' / 8 m
DLHM4-300E: 10' / 3 m
DLH1000S: 23' / 7 m
Battery: 4' / 1.2 m, 4 pin XLR
Cigarette Lighter Adapter: 8.2' / 2.5 m | | Focusing | DLH4, DLHM4-300E: Rear focus knob, continuously variable
DLH1000S: Not applicable | | Weight | DLH4: 2.4 lb / 1.1 kg
DLHM4-300E: 2.2 lb / 1.02 kg
DLH1000S: ~3 lb / 1.3 kg
DT24-1 Dimmer: 1.5 lb / 0.68 kg | | Dimensions | DLH4: 6.75 x 5 x 5" / 17 x 12.4 x 12.7 cm (including mount)
DLHM4-300E: 6.75 x 5 x 6.75" / 17 x 12.4 x 16 cm
DLH1000S: ~8.7 x 11 x 7.7" / 22 x 28 x 19.5 cm
DT24-1 Dimmer: 9.2 x 2.8 x 1.8" / 23.4 x 7.2 x 4.5 cm
Kit in Case: 23.6 x 9.5 x 10" / 60 x 24 x 25.5 cm | | Kit Weight | 22.3 lb / 10.1 kg |
