Dedolight DCHD1200 1000W Tungsten Lighting Kit

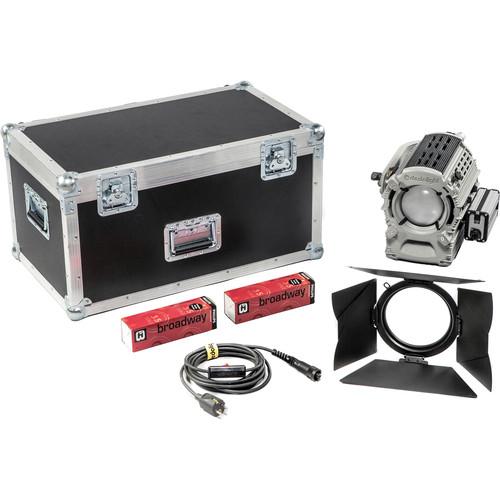

User Manual for Dedolight DCHD1200 1000W Tungsten Lighting Kit with Hard Transport Case

• Product category: Tungsten Lights Dedolight
• Brand: Dedolight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dedolight Tungsten Lights

Product description

• DLH1000T Tungsten Lamp Head (1000W, 120-240V) Offering a high tungsten light output with fine-tuned focusing, the Dedolight DLH1000T is a mains operated lamp head capable of accepting G22 halogen bulbs up to 1000W. A refined optical system utilizes a two-lens configuration combined with unique mirror and lens movement that effectively suppresses spill light while yielding a wide 1:18 focusing range. This dual lens system also helps to produce smooth and consistent color and light output, with even distribution at each focus position for greater control.

  A durable, rainproof construction further complements reliable use, which pairs well with an efficient convection cooling system to maintain a constant and stable working temperature. Its design also permits easy opening of the light for servicing and changing lamps. A yoke is integrated into the lamp head's design, too, and incorporates a 5/8" receptacle and a 1 1/8" stud for mounting versatility.
  Tungsten Model
  • As the tungsten version of the DLH1200D, this model is a mains operated lamp house designed to accept G22 halogen bulbs up to 1000W, as well as 750W, 650W, and 500W options from 120-240VAC.
  Attributes and Benefits
  • • The high light output is benefitted by a 1:18 focusing range, which can be further extended to 1:50 with the aspherical wide-angle attachment.
    • Unique dual-lens system maintains accurate output and color while also helping to avoid spill light.
    • Rainproof design permits assured use on location.
    • Easy-open design, along with a single leg yoke, provides quick access to the interior of the housing for changing lamps or servicing.
    • Extremely low UV values, approx. 1/20 the value shown by other lights, offer greater consistency and accuracy in color.
  High Efficiency Convection Cooling
  • • Full air intake on the bottom of the light
    • Extra air intakes between the inner and outer housings
    • Air gap around the front lens
    • Low front air intake provides airflow between the two lenses (important in flood position)
    • Constant working temperature of the lamp provides stability of color temperature and intensity.
• 4-Leaf Barndoor Set for DLH1200D This Dedolight 4-Leaf Barndoor Set is an optional accessory for the DLH1200D HMI lamp head and allows you to control the light's output.
• Hard Case for DLH1200 Light Heads This Hard Case is designed to protect a DLH1200 series light head during transport.

• Limited 1-Year Warranty

• Limited 90-Day Warranty

Also Includes

• Head Cable
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DLH1000T Tungsten Lamp Head (1000W, 120-240V)

  Rating	1000 W, 120-240 VAC
  Socket (Lampholder)	G22
  Lens (Condenser)	Dual aspherical lens system
  Reflector (Mirror)	Not specified by manufacturer
  Mounting	Dual: 5/8" (16 mm), 1 1/8" (28 mm)
  Yoke	Attached
  Cable	Not specified by manufacturer
  Focusing	Standard: 1:18 With optional aspherical attachment: 1:50
  Weight	23.1 lb / 10.5 kg
  Dimensions	11.5 x 12.9 x 10.7" / 29.2 x 32.8 x 27.1 cm (without yoke extended)

• 4-Leaf Barndoor Set for DLH1200D

  Material

  Aluminum

• Hard Case for DLH1200 Light Heads

  Exterior Dimensions (W x H x D)	2.3 x 1.2 x 1.4' / 71 x 37 x 43 cm
  Weight	32 lb / 14.5 kg
