User Manual for Dedolight Dedocool Standard 2-Light Kit Click to enlarge the picture
Contents of the user manual for the Dedolight Dedocool Standard 2-Light Kit
- Product category: Tungsten Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight Tungsten Lights
|
User manual for the Dedolight Dedocool Standard 2-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description This Dedolight Dedocool Standard 2-Light Kit is designed specifically to meet the special requirements of high speed filmmaking and videography. The Dedocool lights utilize a low wattage, low voltage bulb working in combination with a unique optical system and special reflector to concentrate an intense beam of light over a highly concentrated area. Two matched heat-reflecting filters and a transmitting mirror route the heat through two forced air ventilators, and out the back of the fixture. Heating of your subject is minimal, even after prolonged shooting sessions. This fixture will provide a beam of light of 222,000 footcandles @ 8 inches from the front of the fixture. After prolonged use, the ambient temperature @ 8 inches is 138° F (59°C). The included electronic ballast is dimmable by switching between its 3 power output levels that vary between 21 - 27 Volt, 3000° and 3300°K. It is suitable for multi-voltage (110-240V AC) use. In addition to 2 Dedocool 250W lights, you get an electronic ballast, 2 light stands, 4 bulbs, 2 sets of barndoors, and a hard carrying case to protect and store the kit. - Highly concentrated light in a small fixture
- Fulfills the need for close-up, high-intensity light with cool working temperatures for a broad variety of scientific, medical and industrial film and TV applications
- The kit case holds all the components for storage or transport.

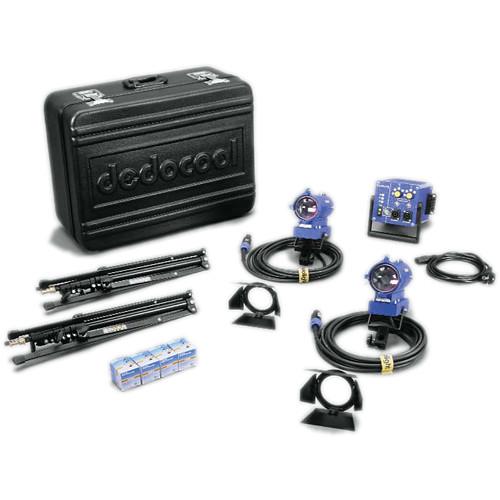

In the Box Dedolight Dedocool Standard 2-Light Kit Power supply, control unit (COOLT3) 2 x 8-Leaf Barndoor Set with Gel Clips (5.5") afyqywbsaxyxcyrrceardzecrdv 2 x Compact Light Stand (7') 4 x 250W 24V halogen bulbs (COOLAMP) Transport case (COOLHD) Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Dedocool Standard 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight Dedocool Specs | Rating | 250 watts, 24V - 21 - 27 volts from optional COOLT3 power supply | | Socket (Lampholder) | GY6.35 base | | Lens (Condenser) | Dual lens optical concept | | Reflector (Mirror) | Curved polished mirror | | Mounting | Mounts to any 5/8" stand or stud. Adapters available for other mounting | | Yoke | Not applicable | | Cable | 26.2' (8 M) | | Focusing | Rear focus knob, continuously variable | | Weight | 4 lbs (1.8 kg) | | Dimensions | 5.6 x 3.7 x 10.7" (14.2 x 9.4 x 27.1 cm) | | Kit Dimensions | 22.5 x 17 x 10" (57 x 43 x 26 cm) | | Kit Weight | 38.4 lb (17.4 kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
