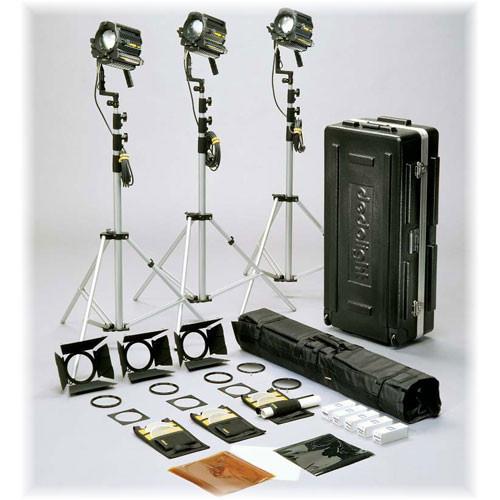

User Manual for Dedolight Dimmable HMI 3-Light Kit with Stands Click to enlarge the picture
Contents of the user manual for the Dedolight Dimmable HMI 3-Light Kit with
- Product category: HMI & Plasma Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight HMI & Plasma Lights
|
User manual for the Dedolight Dimmable HMI 3-Light Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The heart of this 1200 watt total Dedolight HMI Dimmable 3-Light Kit is the DLH400B head with its award-winning design. This 400-watt, daylight-balanced head has a patented focus mechanism with dual lens optics and focusing motion that zooms the light beam at a 20:1 flood-to-spot ratio. Dedolight features a clean beam with even distribution and no stray light.This kit features three 400W HMI fixtures with HMI bulbs, scrims, barndoors, and filter holders to shape and color the light, light stands with a case, and a heavy duty case for storage and transport of the fixtures and accessories. - Super Flood
- Provided by a second lens which moves towards the lamp and mirror when going "wide" to produce an enhanced flood angle
- Super Spot
- Provided by a simultaneous movement of the second lens, moving in the opposit direction, away from the lamp and mirror, producing a very tight and intense spot
- Multi-Voltage Dimmable Ballasts
- Flicker-free, multi-voltage compatible electronic ballasts allow dimming to 30% of each head for tailored lighting set ups
- Well-Balanced Design
- Tilt pivot at center of gravity provides excellent balance and positive locking
- Smooth Focus Control
- Rear focus knob provides smooth, precise, variable movement throughout the focus range
- Easy On-Off Switching
- On/Off push buttons located on both head and ballast for ease of operation
- Safety
- Automatically engaged switch prevents operation when access door is open
In the Box Dedolight Dimmable HMI 3-Light Kit with Stands (90-260 VAC) 3 x Daylight 400DT HMI 400W Spotlight uwbarexbfdwzcfytertea 3 x Electronic Ballast for DLH400D 3 x Standard 4-Leaf Barndoor Set 3 x 400 Watt HMI Bulb - Blackened, for DLH400D 3 x DFH400 Filter Holder 3 x Full Double Scrim for 400 Series (5") 3 x Full Single Scrim for 400 Series (5") 3 x Half Single Scrim for 400 Series (5") 3 x Half Double Scrim for 400 Series (5") 3 x Scrim Pouch for 400 Series 3 x DST400 Light Stand for 400 Series (12.6') DCHD3X4 Heavy Duty Transport Case Light Stand Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Dimmable HMI 3-Light Kit with Stands in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLH400DT Specs | Rating | Each Fixture: 400 or 575 W maximum | | Socket (Lampholder) | GZZ9.5, bi-pin single-ended, hot restrike | | Lens | Dual lens 3.75" / 9.5 cm | | Mounting | 5/8" / 16 mm stud. Adapters available for other mounting | | Weight | Each Fixture: 9.7 lb / 4.4 kg | | Dimensions | Each Fixture: 9.8 x 8.5 x 16" / 25 x 22 x 40 cm (with yoke)
Kit in Main Case: 41.3 x 21 x 12.25" / 105 x 53 x 31 cm | | Kit Weight | 105.4 lb / 47.8 kg | | | | Package Weight | 121.7 lb | | Box Dimensions (LxWxH) | 44.5 x 22.0 x 18.5" |
