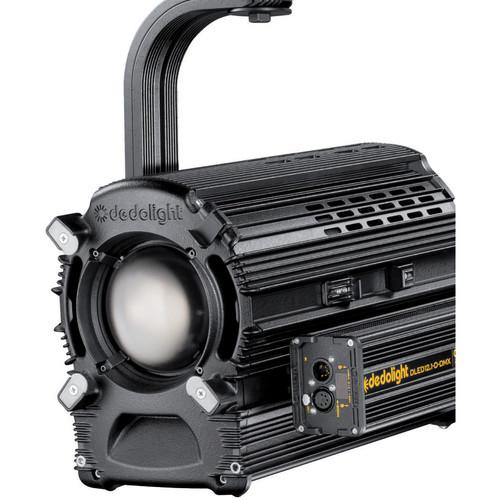

User Manual for Dedolight DLED12.1-D-DMX Daylight LED Light Head Click to enlarge the picture
Contents of the user manual for the Dedolight DLED12.1-D-DMX Daylight LED Light Head
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight DLED12.1-D-DMX Daylight LED Light Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The DLED12.1-D-DMX Daylight LED Light Head from Dedolight is a powerful focusable LED fixture with a high CRI of >91. This version is daylight-balanced resulting in a color temperature of 5600K useful for matching to location lighting or your other fixtures. The DLED12.1 offers a focusing range from 65 to 8°, providing a flood to spot capability for a multitude of uses. Also, the light is dimmable from 100-0% and is compatible with DMX controls.
The light is able to output 50,400 lux at 3' while set to spot and only draws about 225W, making it a very efficient light source. This power does produce enough heat to require an Active Heat Pipe cooling system with near silent fans. This ensures the fixture will remain in top shape while not adding much noise to the scene. The DLED12.1 is capable of holding a 6.6" diameter accessory, including a wide angle attachment that alters the beam angle, and comes with a yoke mount featuring a 5/8" receptacle and 1 1/8" stud. - Operating position of ±90° from horizontal
- Wide-angle attachment changes focusing range to 85 to 54°
- Protection Class I and IP40 safety certifications
- Runs on universal 90-264 VAC power
In the Box Dedolight DLED12.1-D-DMX Daylight LED Light Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight DLED12.1-D-DMX Daylight LED Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED12.1 Specs | | | Beam Angle | 8 to 65° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 91 | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | 12.7 x 15.4 x 15.0" / 32.4 x 39.1 x 38.1 cm | | Fixture Weight | 25 lb / 11 kg | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | | | IP Rating | IP40 | | Protection Class | II |
