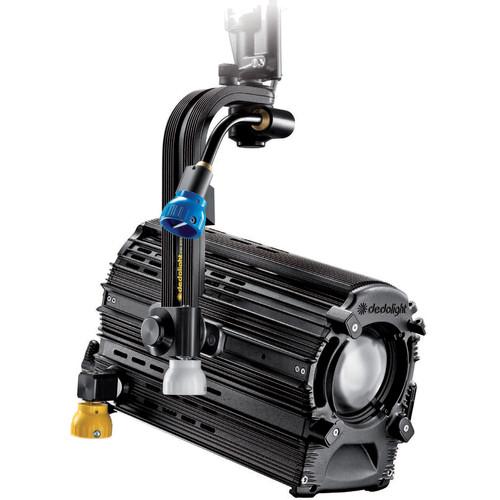

User Manual for Dedolight DLED12 DMX Bicolor LED Light Head Click to enlarge the picture
Contents of the user manual for the Dedolight DLED12 DMX Bicolor LED Light
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight DLED12 DMX Bicolor LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The DLED12 DMX Bicolor LED Light Head from Dedolight is a focusable LED fixture with a high CRI of >95. This version is bicolor-balanced resulting in a color temperature from 2700-6500K useful for matching to location lighting or your other fixtures. The DLED12 offers a focusing range from 65 to 8°, providing a flood-to-spot capability for a multitude of uses. Also, the light is dimmable from 100-0% and is compatible with DMX controls. The light can output 90,900 lux at 3' while set to spot and only draws about 250W, making it a very efficient light source. This power does produce enough heat to require an Active Heat Pipe cooling system with near silent fans. Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight DLED12 DMX Bicolor LED Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED12 Specs | Rating | CRI >95 | | Color Temperature | 2700 - 6500K | | Focusing Range | 65 to 8°
With Optional Aspheric Wide-Angle Attachment: 85 to 54° | | Photometrics | Measured at 5600K
Flood
At 3' (1 m): 780 fc (8400 lux)
At 6' (2 m): 195 fc (2100 lux)
At 9' (3 m): 87 fc (933 lux)
At 15' (5 m): 31 fc (336 lux)
At 30' (10 m): 8 fc (84 lux)
At 45' (15 m): 3.4 fc (37 lux)Medium
At 3' (1 m): 1933 fc (20800 lux)
At 6' (2 m): 483 fc (5200 lux)
At 9' (3 m): 215 fc (2310lux)
At 15' (5 m): 77 fc (832 lux)
At 30' (10 m): 19 fc (208 lux)
At 45' (15 m): 9 fc (93 lux)
Spot
At 3' (1 m): 8488 fc (90900lux)
At 6' (2 m): 2112 fc (22725 lux)
At 9' (3 m): 939 fc (10100 lux)
At 15' (5 m): 338 fc (3636 lux)
At 30' (10 m): 85 fc (909 lux)
At 45' (15 m): 38 fc (404 lux) | | Dimming | 100-0% | | Cooling | Active heat pipe cooling with fan system | | Accessory Size | Diameter: 6.6" (169 mm) | | Mount | 5/8" (16 mm) receptacle
1 1/8" (28 mm) stud | | Operating Position | ±90° from horizontal | | Certifications | Protection Class I, IP40 | | Operating Voltage | 90 to 264 VAC
240 V / 2.4 to 1 A
250 W | | Dimensions | 12.7 x 15.4 x 15.0" (32.4 x 39.1 x 38.1 cm) | | Weight | 25 lb (11 kg) |
