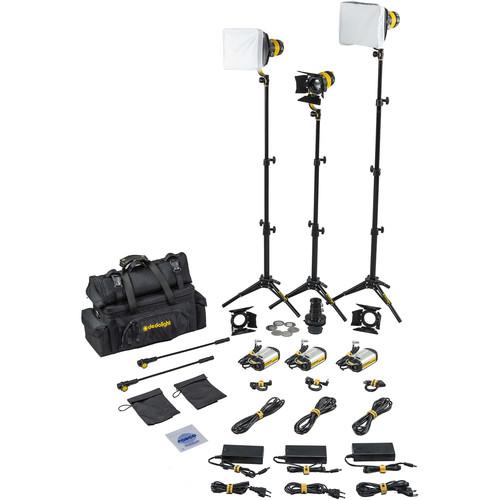

Dedolight DLED3 TURBO 3-Light Standard Daylight

User Manual for Dedolight DLED3 TURBO 3-Light Standard Daylight Kit

• Product category: LED Lights Dedolight
• Brand: Dedolight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dedolight LED Lights

Product description

• Turbo Series DLED3 Daylight Focusing LED Light Head The Turbo Series DLED3 Daylight Focusing LED Light Head from Dedolight is a focusable LED light with a standard 5/8" receptacle. This model features an adjustable color temperature of 3,200K for providing a quality light that can be used in a wide range of situations. The light is dimmable without any color shift and offers tilt control with adjustable friction.

  Being an LED fixture it has low power draw of just 40W with an output of 16,500 lux at a distance of 3' with a spot beam angle. Accessories can easily be fitted on a 2.3" diameter holder and the light features active cooling, meaning it doesn't require noisy fans to run. It is also lightweight for effective use as an on-camera light.
• DT3-BAT DC Ballast Power up your DLED3 daylight or tungsten LED light while on location with this DT3-BAT DC Ballast which sports a D-Tap connection for working from a battery or other portable power source. This ballast is dimmable for control over your fixture. Additionally, it accepts a wide range of voltages from 11-36 VDC.
• 8.6" Cable with Anton Bauer Connection The Dedolight 8.6" Cable with Anton Bauer Connection is used to power a DLOBML DedoLight Ledzilla On Board Mini LED (not included) using an Anton Bauer system (not included). The DLOBML is a tiny but powerful on-camera LED light--this cable connects the light to the Anton Bauer battery.The light can also be powered by other optional power sources (none included) such as the Dedolight NP-F950 (330 minutes of run-time) or NP-F750 (210 minutes of run-time) li-ion batteries, Sony and Panasonic camcorder batteries, 8 AA batteries using an optional battery holder, any PAG system, a car cigarette lighter, a battery belt, or any other 6VDC to 18VDC outlet.
  • The cable connects the DLOBML to any Anton Bauer system.
• Standard 8-Leaf Barndoors for DLED2.1 LED Lamp Head These Standard 8-Leaf Barndoors for DLED2.1 LED Lamp Head from Dedolight helps control and contour this fixture's beam spread. While the barndoors don't rotate around the head, the 8 fanning leaves are nearly as effective as the rotating version.
• Universal Imager Projection Attachment without Lens for DLED2.1 LED Light Compatible with both daylight and bi-color versions of the light, the Universal Imager Projection Attachment without Lens for DLED2.1 LED Light from Dedolight allows you to project unfocused or sharply focused optional gobo patterns, slides or an optical spot of various diameters using an optional iris. This attachment ships without a lens to give you a choice of optional 30, 50, 60 and 85mm lenses to cover wide angle to telephoto requirements.
• 6 Gobo Set for DP1S Projection Attachment/Imager This 6 Gobo Set from Dedolight features a variety of lighting effect gobos that are designed to work with the DP1S Projection Attachment/Imager.
• Soft Box with Speed Ring for DLED2.1 LED Dedicated to the Dedolight DLED2.1 LED fixture, this Softbox with Speed Ring helps to diffuse the quality of light for a softer overall appearance. Both a removable internal baffle and front diffuser are included for greater control over the light quality, and the dedicated DLSR60 Speed Ring attaches directly to the fixture for simple mounting of the light modifier.
• DLPS12-60 AC Power Supply Get your DLED3 Turbo LED light up and running with the DLPS12-60 AC Power Supply from Dedolight. This provides a constant power supply from a mains source and supports universal voltages from 120-240 VAC.
• 16.0' Extension Cable for DLPS12-30 Power Supply This 16.0' Extension Cable from Dedolight is designed for use with the DLPS12-30 power supply.
• DSCS Soft Case for Lithium Batteries and Battery Plates This Dedolight DSCS Soft Case for Lithium Batteries and Battery Plates is a soft case designed to accommodate Lithium-ion batteries and battery plates for Dedolight power supplies. It features a carry handle.
• SDSTM3 Stand Kit with Flexible Stand Extensions and Bag (4') The SDSTM3 Stand Kit from Dedolight combines three 48.5"-tall DSTM Mini Light Stands with two 15.7"-long DSTFX40 flexible stand extensions. Ideally suited for travel applications and working on location, this kit also includes a soft bag for carrying and storing all of the kit components.

• Head Cable

• Limited 1-Year Warranty

• 1-Year Limited Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• DLSR60 Speed Ring

• Front Diffuser

• Internal Baffle

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 90-Day Warranty

• 90-Day Limited Warranty

3 x
• DSTM Mini Light Stand (Black, 48.5")

2 x
• Flexible Stand Extension (15.7")

• Soft Bag

• Limited 1-Year Warranty

Also Includes

• 2 x Speed Ring for DLED2/DLED3 Softbox

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Turbo Series DLED3 Daylight Focusing LED Light Head

  Focus Range	Intensity Range: 50° to 5° (1:7)
  Focus Control	3/4 turn on focus ring
  Photometrics	Flood 3' (1 m): 1350 lux (126 fc) 6' (2 m): 338 lux (31 fc) 9' (3 m): 150 lux (14 fc) 12' (4 m): 84 lux (8 fc) 15' (5 m): 54 lux (5 fc) Medium 3' (1 m): 2511 lux (237 fc) 6' (2 m): 629 lux (58 fc) 9' (3 m): 279 lux (26 fc) 12' (4 m): 156 lux (15 fc) 15' (5 m): 100 lux (9.3 fc) Spot 3' (1 m): 16,500 lux (1534 fc) 6' (2 m): 4125 lux (283 fc) 9' (3 m): 1833 lux (170 fc) 12' (4 m): 1031 lux (96 fc) 15' (5 m): 660 lux (61 fc) Color temperature approximately 5600K
  Tilt	Adjustable friction
  Cooling	Active silent cooling
  Mount	5/8" (16 mm) receptacle
  Accessory Mounting	2.3" (58 mm) in diameter
  Power Draw	40 W
  Safety	Protection Class III, SELV, IP20
  Dimensions	6.3 x 5.4 x 3.3" (16 x 14 x 8 cm)
  Weight	1.8 lb (0.8 kg)

• DT3-BAT DC Ballast

  Input Voltage	11-18 VDC
  Connector	1 x D-Tap
  Dimensions	4.5 x 2.8 x 2.0" / 11.3 x 7.2 x 5.0 cm
  Weight	12.7 oz / 360 g

• 8.6" Cable with Anton Bauer Connection

  Box Dimensions (LxWxH)	4.0 x 4.0 x 4.0"

• Standard 8-Leaf Barndoors for DLED2.1 LED Lamp Head

  Box Dimensions (LxWxH)	6.4 x 3.6 x 1.0"

• Universal Imager Projection Attachment without Lens for DLED2.1 LED Light

  Box Dimensions (LxWxH)	8.0 x 5.3 x 4.9"

• 6 Gobo Set for DP1S Projection Attachment/Imager

  Box Dimensions (LxWxH)	4.8 x 3.9 x 0.3"

• Soft Box with Speed Ring for DLED2.1 LED

  Size	Not specified by manufacturer
  Shape	Rectangular
  Compatibility	DLED2.1 LED fixture
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Accepts Grids	Not specified by manufacturer
  Requires Speed Ring	Yes, included DLSR60

  Box Dimensions (LxWxH)	7.4 x 4.1 x 1.1"

• DLPS12-60 AC Power Supply

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Output Voltage	12 VDC
  Power Draw	60.00 W

  Dimensions	5.9 x 2.2 x 1.2" / 15 x 5.5 x 3 cm
  Weight	11.5 oz / 325 g

• 16.0' Extension Cable for DLPS12-30 Power Supply

  Length

  16.0' (4.9 m)

• DSCS Soft Case for Lithium Batteries and Battery Plates

  Carry and Transport Options	Handle
  Material of Construction	Cordura Nylon

• SDSTM3 Stand Kit with Flexible Stand Extensions and Bag (4')
