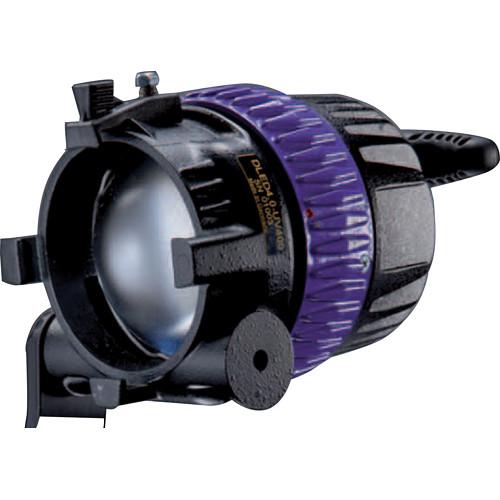

User Manual for Dedolight DLED4.1-UV400 UV LED Light Head without Power Supply Click to enlarge the picture
Contents of the user manual for the Dedolight DLED4.1-UV400 UV LED Light Head
- Product category: DJ & Effect Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight DJ & Effect Lights
|
User manual for the Dedolight DLED4.1-UV400 UV LED Light Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The DLED4.1-UV400 UV LED Light Head without Power Supply from Dedolight is a 400nm UV LED light source with an output of 9000mW at full power. This allows for achieving a unique black light effect or by illuminating fluorescent objects. The DLED4.1 is focusable from 60 to 4° and can be continuously dimmed from 100-0%. Additionally, it has a low power draw of 40W.
The compact light head features passive cooling, meaning that there is no fan that can add unwanted noise to the scene. It can operate in any position and has a holder for 3" diameter accessories, such as an optional wide-angle attachment for expanding the focus range. The light features Protection Class III, SELV, and IP40 ratings for safety and requires an optional universal power supply for operation. - Optional aspherical wide-angle attachment widens beam angle range to 85 to 54°
- Compatible with DP1.1, DP2.1, and DP3.1 imagers
- Focus control is handled through one complete turn of the focusing ring
- Tilt control features permanent friction
- Protection Class III, SELV, and IP40 rated
- Can run on universal 90-264 VAC power source with optional power supply
In the Box Dedolight DLED4.1-UV400 UV LED Light Head without Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight DLED4.1-UV400 UV LED Light Head without Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED4.1 Specs | LED | UV-A | | Wavelength | 400 nm | | Output | 9000 mW | | Focus Range | 60 to 4° (1:20)
With Optional Aspherical Wide-Angle Attachment: 85 to 54° | | Focus Control | One complete turn on focus ring | | Power Draw | 40 W | | Operating Position | Any | | Dimming | 100-0%, continuous | | Tilt | Permanent friction | | Accessory Size | 3" (76 mm) diameter | | Mount | 5/8" (16 mm) receptacle and 1 1/8" (28 mm) stud | | Operating Voltage | 90-264 VAC | | Safety | Protection Class III
SELV
IP40 | | Dimensions | Flood: 4.3 x 6.4 x 3.9" (10.9 x 16.2 x 10.0 cm)
Spot: 4.3 x 8.9 x 3.9" (10.9 x 20.0 x 10.0 cm) | | Weight | 2.9 lb (1.3 kg) |
