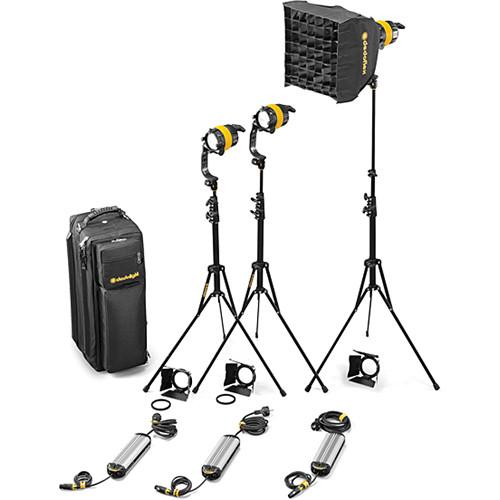

Dedolight DLED4-BI Bi-Color LED 3-Light Basic

User Manual for Dedolight DLED4-BI Bi-Color LED 3-Light Basic Kit

• Product category: LED Lights Dedolight
• Brand: Dedolight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dedolight LED Lights

Product description

• Mobile DLED4.1-BI LED Light Head Having paved the way with the on-camera Ledzilla LED and the 1x1' stand-mounted Felloni Dedolight continues to forge ahead with the introduction of the Mobile Mobile DLED4.1-BI LED Light Head . Again using aspherical lens elements results in an impressive 1:20 flood to spot ratio with a beam angle of 4-60 degrees that delivers 18,360 Lux in spot mode at 3.0' with no UV radiation emitted. A wide angle attachment increases coverage 54-85 degrees.Color balance, always a problem especially when working in mixed lighting, is no problem at all with the DLED4.1-BI. Set your color temperature to 3200K or 5600K or anywhere in between. The 5600K setting is great outdoors or for use with HMI and flash sources. The 3200K setting is perfect for areas with dominant ambient light emitted by architectural fixtures as well as night scenes involving candle light or fire light. As is characteristic of LED sources, the DLED4.1-BI generates negligible heat. The head is powered by the 100 to 260 VAC DT4.1-BI-BAT-XLR or the DT4.1-BI-BAT-AB. A full line of accessories from scrims and filters to Dedolight Imager projection attachments is available. Note: Requires purchase of power supply
  • State-of-the-art LED light source with features exclusively developed by Dedolight
  • The continuously variable 3200-5600K LEDs make matching existing light sources a snap
  • Dedolight patented aspherical optics
  • Provides astoundingly high efficiency in output
  • Unprecedented wider and tighter focusing range
  • Dedolight clean beam concept. Controlled precision beam with no stray light outside the fixture and perfectly even light distribution within the beam
  • Complete light-shaping control:
    Scrims, graduated gray filters, aspherical wide-angle attachments with rotating barndoor leaves
  • Dedolight imager projection attachments for light framing, soft edge light framing with eye filters, gobo projection, background effect projection, slide projection
• Dedoflex Mini Softbox (Silver, 12 x 12") The Dedlight Dedoflex Mini Softbox measures 12 x 12" (30 x 30cm) and has a silver interior. It provides softness, with a little punch, when mounted to the front of a small Dedolight fixture.
• DT4-BI Power Supply (90-260 VAC) This Dedolight DT4-BI Power Supply (90-260 VAC) is a small, lightweight power source for the DLED4 bi-color balanced head. The self-seeking voltage unit can be used virtually anywhere there's electricity and provides stable power that's dimmable from 100 - 20%. The DT4-BI comes with an 8.2' mains cable.
  • Allows worldwide use from 100 to 260 VAC 50/60 Hz cycle plus continuous dimming
  • For Dedolight DLED4 bi-color head
• Compact Light Stand (7') This black anodized aluminum, 7' Dedolight Compact Light Stand weighs only 2.1 lb. Its maximum height is 7 feet, and it folds down to just 19".

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Mains Cable

• Head Cable

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• DEDSC1200
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mobile DLED4.1-BI LED Light Head

  Beam Angle	4 to 60°
  Color Temperature	3200 to 5600K
  Cooling System	Passive
  Dimming	Yes, 20 to 100%
  Display	None
  Fixture Dimensions	Flood: 6.4 x 4.3 x 3.9" / 16.2 x 11.0 x 10.0 cm Spot: 7.9 x 4.3 x 3.9" / 20.0 x 11.0 x 10.0 cm
  Fixture Weight	3.0 lb / 1.36 kg

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  DC Input Power	10.2 to 18 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	47 W

  IP Rating	IP40
  Protection Class	III

  Box Dimensions (LxWxH)	15.35 x 11.7 x 5.3"

• Dedoflex Mini Softbox (Silver, 12 x 12")

  Size	12 x 12" (30 x 30 cm)
  Shape	Square
  Compatibility	Dedolight fixtures
  Removable Front Face	No
  Removable Interior Baffle	No
  Accepts Grids	No
  Requires Speed Ring	optional

  Box Dimensions (LxWxH)	15.906 x 6.378 x 2.598"

• DT4-BI Power Supply (90-260 VAC)

  AC Input Power	90 to 260 VAC, 50 / 60 Hz
  Output Voltage	40 VDC

  Mount Fixture	Cable Loop
  IP Rating	IP40

  Dimensions	6 x 2.8 x 2" / 14.2 x 7.2 x 5 cm
  Weight	2.2 lb / 1 kg

  Box Dimensions (LxWxH)	14.8 x 13.6 x 2.5"

• Compact Light Stand (7')

  Load Capacity	3 lb / 1.4 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	7' / 2.1 m
  Minimum Working Height	21" / 53.3 cm
  Collapsed Height	19" / 48.3 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Weight	2.1 lb / 0.9 kg

  Box Dimensions (LxWxH)	19.5 x 3.4 x 3.1"
