Dedolight DLED4-BI Bi-Color LED Master 1-Light

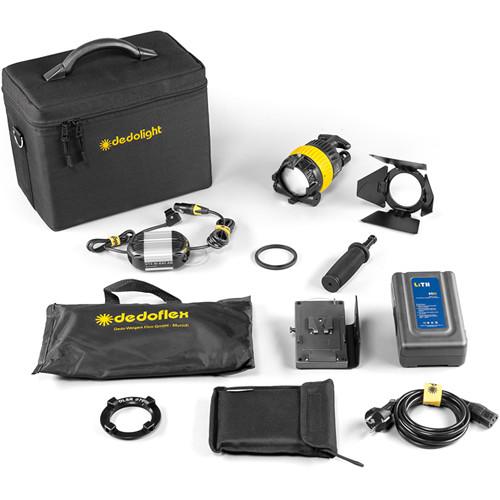

User Manual for Dedolight DLED4-BI Bi-Color LED Master 1-Light Kit

• Product category: LED Lights Dedolight
• Brand: Dedolight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dedolight LED Lights

Product description

• Mobile DLED4.1-BI LED Light Head Having paved the way with the on-camera Ledzilla LED and the 1x1' stand-mounted Felloni Dedolight continues to forge ahead with the introduction of the Mobile Mobile DLED4.1-BI LED Light Head . Again using aspherical lens elements results in an impressive 1:20 flood to spot ratio with a beam angle of 4-60 degrees that delivers 18,360 Lux in spot mode at 3.0' with no UV radiation emitted. A wide angle attachment increases coverage 54-85 degrees.Color balance, always a problem especially when working in mixed lighting, is no problem at all with the DLED4.1-BI. Set your color temperature to 3200K or 5600K or anywhere in between. The 5600K setting is great outdoors or for use with HMI and flash sources. The 3200K setting is perfect for areas with dominant ambient light emitted by architectural fixtures as well as night scenes involving candle light or fire light. As is characteristic of LED sources, the DLED4.1-BI generates negligible heat. The head is powered by the 100 to 260 VAC DT4.1-BI-BAT-XLR or the DT4.1-BI-BAT-AB. A full line of accessories from scrims and filters to Dedolight Imager projection attachments is available. Note: Requires purchase of power supply
  • State-of-the-art LED light source with features exclusively developed by Dedolight
  • The continuously variable 3200-5600K LEDs make matching existing light sources a snap
  • Dedolight patented aspherical optics
  • Provides astoundingly high efficiency in output
  • Unprecedented wider and tighter focusing range
  • Dedolight clean beam concept. Controlled precision beam with no stray light outside the fixture and perfectly even light distribution within the beam
  • Complete light-shaping control:
    Scrims, graduated gray filters, aspherical wide-angle attachments with rotating barndoor leaves
  • Dedolight imager projection attachments for light framing, soft edge light framing with eye filters, gobo projection, background effect projection, slide projection
• Light Shield Ring Prevents stray light from exiting light head when no filter accessory is used.
• 8-Leaf Barndoor Set with Gel Clips (5.5") This is the Dedolight 8-Leaf Barndoor Set with Gel Clips. Barndoors narrow the beam spread of a light fixture. They help create a 3-dimensional look to a lighting scheme by placing light in a specific area or by keeping it away. The small leaves of this barndoor set have two helper leaves, which add more control of the light emitted from the fixture. Each large leaf has two clips for attachment of gel filters.
• Grip Handle with 5/8" Stud Handle with ribbed rubber grip and 5/8 in (16 mm) stud for hand-held use of Dedo, or any other manufacturer's studio light fixture.
• Mini Speed Ring Adapter for DLH4, 4P, DLH4M-300 This Dedolight Speed Ring Adapter permits mounting of a Dedolight or Chimera Softbox to the front of a Dedolight DLH4, 4P, or DLH4M-300 fixture.
• Dedoflex Mini Softbox (Silver, 12 x 12") The Dedlight Dedoflex Mini Softbox measures 12 x 12" (30 x 30cm) and has a silver interior. It provides softness, with a little punch, when mounted to the front of a small Dedolight fixture.
• 40° Fabric Grid for DSBSXS Mini Softbox This 40° Dedolight Fabric Grid for DSBSXS Mini Softbox is a collapsible modifier that limits the light spread of a 12 x 12" Mini softbox. Grids are essential accessories for any lighting system. A grid alters the shape and intensity of the light output from your softbox when it is mounted on a light head. Fabric grids are hand-stitched and collapse easily for storage or transport. Use of a fabric grid will result in a narrower spread of light. The spread of light will be determined by the density of the honeycomb mesh and the distance of the subject from the light.
• LiTH 95SI V-Mount Self-Charging Lithium-Ion Battery (14.8V, 95Wh) The LiTH 95SI V-Mount Self-Charging Lithium-Ion Battery from Dedolight is a 14.8V, 95Wh power source with a self-charging design capable of accepting worldwide input voltages of 90-240 VAC with the included charging cable. It is capable of delivering up to 10 amps for high current draw applications and it features a V-lock mount with a 5-pin connector to maintain communication between the battery and the camera or other equipment in use. Additionally, five LED indicator lights are incorporated into the design to clearly display battery life and charging status.
• DLBCA2-V Belt Adapter for V-Mount Batteries with Holding Plate The DLBCA2-V Belt Adapter for V-Mount Batteries with Holding Plate from Dedolight can be used for attaching a battery to your belt. The device features a holding plate for DT4BAT and BI-BAT ballasts, as well as a D-Tap power out socket.

• Soft Case, Mono (Large)

• Limited 1-Year Warranty

• Limited 90-Day Warranty

• Limited 5-Year Warranty

• Limited 1-Year Warranty

• Storage Bag

• Charge Cable

• Limited 3-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Battery Power Supply for DLED4 Bi-Color Light Heads (D-Tap)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mobile DLED4.1-BI LED Light Head

  Beam Angle	4 to 60°
  Color Temperature	3200 to 5600K
  Cooling System	Passive
  Dimming	Yes, 20 to 100%
  Display	None
  Fixture Dimensions	Flood: 6.4 x 4.3 x 3.9" / 16.2 x 11.0 x 10.0 cm Spot: 7.9 x 4.3 x 3.9" / 20.0 x 11.0 x 10.0 cm
  Fixture Weight	3.0 lb / 1.36 kg

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  DC Input Power	10.2 to 18 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	47 W

  IP Rating	IP40
  Protection Class	III

  Box Dimensions (LxWxH)	15.35 x 11.7 x 5.3"

• Light Shield Ring

  Box Dimensions (LxWxH)	2.5 x 2.2 x 0.3"

• 8-Leaf Barndoor Set with Gel Clips (5.5")

  Box Dimensions (LxWxH)	7.35 x 3.75 x 1.15"

• Grip Handle with 5/8" Stud

  Box Dimensions (LxWxH)	7.5 x 1.8 x 1.3"

• Mini Speed Ring Adapter for DLH4, 4P, DLH4M-300

  Compatible Lighting	Dedolight
  Number of Mounting Holes	4

  Box Dimensions (LxWxH)	3.7 x 3.2 x 0.6"

• Dedoflex Mini Softbox (Silver, 12 x 12")

  Size	12 x 12" (30 x 30 cm)
  Shape	Square
  Compatibility	Dedolight fixtures
  Removable Front Face	No
  Removable Interior Baffle	No
  Accepts Grids	No
  Requires Speed Ring	optional

  Box Dimensions (LxWxH)	15.906 x 6.378 x 2.598"

• 40° Fabric Grid for DSBSXS Mini Softbox

  Box Dimensions (LxWxH)	8.1 x 5.6 x 0.8"

• LiTH 95SI V-Mount Self-Charging Lithium-Ion Battery (14.8V, 95Wh)

  Battery Mount	V-mount
  Output Voltage	14.8 VDC
  Capacity	95 Wh
  Maximum Discharge Rate	Up to 10 A
  Input Voltage	90-240 VAC
  Dimensions	6.5 x 4.1 x 1.8" / 16.5 x 10.5 x 4.5 cm
  Weight	2.2 lb / 1 kg

  Box Dimensions (LxWxH)	9.3 x 7.3 x 6.8"

• DLBCA2-V Belt Adapter for V-Mount Batteries with Holding Plate

  Compatibility	V-Mount Batteries
  Weight (Approx.)	1.00 lb / 0.45 kg

  Box Dimensions (LxWxH)	6.0 x 4.9 x 1.6"

• Soft Case, Mono (Large)

  Closure Type	Zipper
  Carry and Transport Options	Top Handle
