Dedolight DLED4-D Daylight LED 4-Light Basic

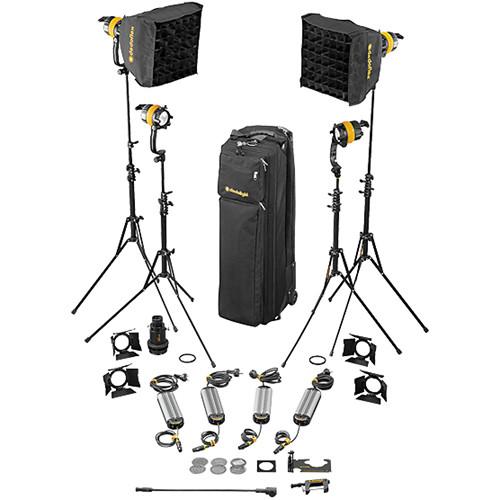

User Manual for Dedolight DLED4-D Daylight LED 4-Light Basic Kit

• Product category: LED Lights Dedolight
• Brand: Dedolight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dedolight LED Lights

Product description

• Mobile DLED4.1-D LED Light Head (Daylight) without Power Supply Having paved the way with the on-camera Ledzilla LED and the 1 x 1' stand-mounted Felloni Dedolight continues to forge ahead with the introduction of the Mobile DLED4.1-D LED Light Head (Daylight). Again using aspheric lens elements results in an amazing 1:20 flood to spot ratio with a beam angle of 60-4 degrees that delivers 27,000 lux in spot mode at 3.0' with no UV radiation emitted. A wide angle attachment increases coverage 85-54 degrees. The 5600K daylight balance blends in seamlessly in outdoor situations and is ideal for location and ENG work, and as is characteristic of LED sources, generates negligible heat. The DLED4.1-D is powered by the 100 to 260 VAC DT4.0-1 or DT4.0-1-DMX which offers remote control of the light's 100-20% dimmable light intensity. A DC power supply is also available for battery power sources up 18V. A full line of accessories from scrims and filters to Dedolight Imager projection attachments is available. Note: Requires purchase of power supply
  • State-of-the-art LED light source with features exclusively developed by Dedolight
  • Dedolight patented aspherical optics
  • Daylight color balance is ideal for location work, guaranteeing maximum output and minimum time spent fumbling with filters
  • Provides astoundingly high efficiency in output
  • Unprecedented wider and tighter focusing range
  • Dedolight clean beam concept. Controlled precision beam with no stray light outside the fixture and perfectly even light distribution within the beam
  • Complete light-shaping control:
    Scrims, graduated gray filters, aspherical wide-angle attachments with rotating barndoor leaves
  • Dedolight imager projection attachments for light framing, soft edge light framing with eye filters, gobo projection, background effect projection, slide projection
• Dedoflex Mini Softbox (Silver, 12 x 12") The Dedlight Dedoflex Mini Softbox measures 12 x 12" (30 x 30cm) and has a silver interior. It provides softness, with a little punch, when mounted to the front of a small Dedolight fixture.
• Projection Attachment w/85mm f/2.8 Lens Used as a focusing snoot, the Dedolight Projection Attachment creates an area of light with either a soft or hard edge. It is supplied with an 85mm f/2.8 lens. An adjustable 18-leaf iris diaphragm, 60, 150 and 185mm lenses are also available separately.
  • Offers great versatility with a spring-loaded accessory slot that accepts a wide variety of optional accessories
  • An optional adjustable 18-leaf iris diaphragm allows the light to be focused in a tighter circle than is possible with the Projection Attachment alone.
  • A slide holder which will hold conventionally mounted 35mm slides is available. This allows the slide to be projected onto a set or background. (A Heat Filter should be used to prolong the life of the slide.)
  • An available gobo holder holds metal patterns or gobos that allow light to pass through, forming a pattern on a set or background.
• DT4 Power Supply (90-260 VAC) This Dedolight DT4 Power Supply (90-260 VAC) is a small, lightweight power source for the DLED4 tungsten and daylight balanced heads. The self-seeking voltage unit can be used virtually anywhere there's electricity and provides stable power that's dimmable from 100 - 20%. The DT4 comes with an 8.2' mains cable.
  • Allows worldwide use from 100 to 260 VAC 50/60 Hz cycle plus continuous dimming
  • For Dedolight DLED4 tungsten and daylight heads
• Compact Light Stand (7') This black anodized aluminum, 7' Dedolight Compact Light Stand weighs only 2.1 lb. Its maximum height is 7 feet, and it folds down to just 19".
• DSC2-200 Soft Case The Dedolight DSC2-200 Soft Case is made to carry a Dedolight S200-2M or S200-3 Sundance Lighting kits. It will protect the equipment even when shipped as checked baggage. The case is carried by top and side carrying handles.
  • Soft lighting case
  • Protects equipment even when transported as checked baggage
  • Dual carrying handles
  Compatible with;
  • • Dedolight S200-2M or S200-3 Sundance lighting kits

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Storage Pouch

• Mains Cable

• Head Cable

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mobile DLED4.1-D LED Light Head (Daylight) without Power Supply

  Beam Angle	4 to 60°
  Color Temperature	5600K
  Cooling System	Passive
  Dimming	Yes, 20 to 100%
  Display	None
  Fixture Dimensions	Flood: 6.4 x 4.3 x 3.9" / 16.2 x 11.0 x 10.0 cm Spot: 7.9 x 4.3 x 3.9" / 20.0 x 11.0 x 10.0 cm
  Fixture Weight	3.0 lb / 1.36 kg

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 260 VAC, 50 / 60 Hz
  DC Input Power	10.2 to 18 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	45 W

  IP Rating	IP40
  Protection Class	III

  Box Dimensions (LxWxH)	8.25 x 4.6 x 4.0"

• Dedoflex Mini Softbox (Silver, 12 x 12")

  Size	12 x 12" (30 x 30 cm)
  Shape	Square
  Compatibility	Dedolight fixtures
  Removable Front Face	No
  Removable Interior Baffle	No
  Accepts Grids	No
  Requires Speed Ring	optional

  Box Dimensions (LxWxH)	15.906 x 6.378 x 2.598"

• Projection Attachment w/85mm f/2.8 Lens

  Weight

  15.4 oz (437 g)

  Box Dimensions (LxWxH)	8.0 x 5.3 x 5.0"

• DT4 Power Supply (90-260 VAC)

  AC Input Power	90 to 260 VAC, 50 / 60 Hz
  Output Voltage	40 VDC

  Mount Fixture	Cable Loop
  IP Rating	IP40

  Dimensions	6 x 2.8 x 2" / 14.2 x 7.2 x 5 cm
  Weight	2.2 lb / 1 kg

  Box Dimensions (LxWxH)	13.1 x 6.4 x 2.3"

• Compact Light Stand (7')

  Load Capacity	3 lb / 1.4 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	7' / 2.1 m
  Minimum Working Height	21" / 53.3 cm
  Collapsed Height	19" / 48.3 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Weight	2.1 lb / 0.9 kg

  Box Dimensions (LxWxH)	19.5 x 3.4 x 3.1"

• DSC2-200 Soft Case

  Dividers	Yes

  Carry and Transport Options	2 x Handle
  Material of Construction	Cordura Nylon
  Exterior Dimensions (W x H x D)	11.4 x 12.8 x 29.5" / 29.5 x 32 x 75 cm
  Weight	7.3 lb / 3.3 kg
