Dedolight DLED4-D Daylight LED Basic 1-Light

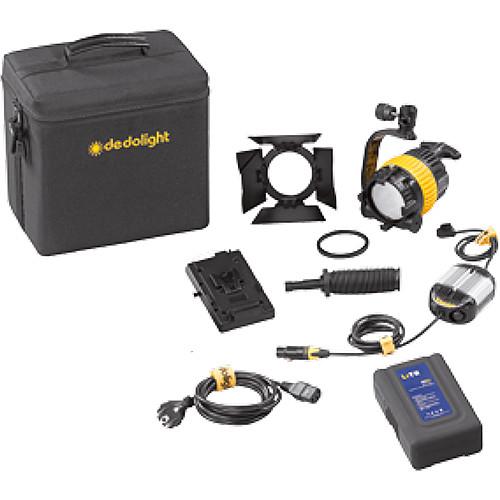

User Manual for Dedolight DLED4-D Daylight LED Basic 1-Light Kit

• Product category: LED Lights Dedolight
• Brand: Dedolight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dedolight LED Lights

Product description

• Mobile DLED4.1-D LED Light Head (Daylight) without Power Supply Having paved the way with the on-camera Ledzilla LED and the 1 x 1' stand-mounted Felloni Dedolight continues to forge ahead with the introduction of the Mobile DLED4.1-D LED Light Head (Daylight). Again using aspheric lens elements results in an amazing 1:20 flood to spot ratio with a beam angle of 60-4 degrees that delivers 27,000 lux in spot mode at 3.0' with no UV radiation emitted. A wide angle attachment increases coverage 85-54 degrees. The 5600K daylight balance blends in seamlessly in outdoor situations and is ideal for location and ENG work, and as is characteristic of LED sources, generates negligible heat. The DLED4.1-D is powered by the 100 to 260 VAC DT4.0-1 or DT4.0-1-DMX which offers remote control of the light's 100-20% dimmable light intensity. A DC power supply is also available for battery power sources up 18V. A full line of accessories from scrims and filters to Dedolight Imager projection attachments is available. Note: Requires purchase of power supply
  • State-of-the-art LED light source with features exclusively developed by Dedolight
  • Dedolight patented aspherical optics
  • Daylight color balance is ideal for location work, guaranteeing maximum output and minimum time spent fumbling with filters
  • Provides astoundingly high efficiency in output
  • Unprecedented wider and tighter focusing range
  • Dedolight clean beam concept. Controlled precision beam with no stray light outside the fixture and perfectly even light distribution within the beam
  • Complete light-shaping control:
    Scrims, graduated gray filters, aspherical wide-angle attachments with rotating barndoor leaves
  • Dedolight imager projection attachments for light framing, soft edge light framing with eye filters, gobo projection, background effect projection, slide projection
• Light Shield Ring Prevents stray light from exiting light head when no filter accessory is used.
• 8-Leaf Barndoor Set with Gel Clips (5.5") This is the Dedolight 8-Leaf Barndoor Set with Gel Clips. Barndoors narrow the beam spread of a light fixture. They help create a 3-dimensional look to a lighting scheme by placing light in a specific area or by keeping it away. The small leaves of this barndoor set have two helper leaves, which add more control of the light emitted from the fixture. Each large leaf has two clips for attachment of gel filters.
• Grip Handle with 5/8" Stud Handle with ribbed rubber grip and 5/8 in (16 mm) stud for hand-held use of Dedo, or any other manufacturer's studio light fixture.
• LiTH 95SI V-Mount Self-Charging Lithium-Ion Battery (14.8V, 95Wh) The LiTH 95SI V-Mount Self-Charging Lithium-Ion Battery from Dedolight is a 14.8V, 95Wh power source with a self-charging design capable of accepting worldwide input voltages of 90-240 VAC with the included charging cable. It is capable of delivering up to 10 amps for high current draw applications and it features a V-lock mount with a 5-pin connector to maintain communication between the battery and the camera or other equipment in use. Additionally, five LED indicator lights are incorporated into the design to clearly display battery life and charging status.
• DLBCA2-V Belt Adapter for V-Mount Batteries with Holding Plate The DLBCA2-V Belt Adapter for V-Mount Batteries with Holding Plate from Dedolight can be used for attaching a battery to your belt. The device features a holding plate for DT4BAT and BI-BAT ballasts, as well as a D-Tap power out socket.
• DSCM Soft Case The Dedolight DSCM Soft Case is made to carry a Dedolight single Classic light head with power supply and Imager. It will protect the equipment even when shipped as checked baggage.
  • Padded lighting case with dividers

• Limited 1-Year Warranty

• Limited 90-Day Warranty

• Charge Cable

• Limited 3-Year Warranty

• Limited 1-Year Warranty

• 1 Year Manufacturer's Warranty

Also Includes

• Battery Power Supply for DLED4 Daylight Light Heads (D-Tap)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mobile DLED4.1-D LED Light Head (Daylight) without Power Supply

  Beam Angle	4 to 60°
  Color Temperature	5600K
  Cooling System	Passive
  Dimming	Yes, 20 to 100%
  Display	None
  Fixture Dimensions	Flood: 6.4 x 4.3 x 3.9" / 16.2 x 11.0 x 10.0 cm Spot: 7.9 x 4.3 x 3.9" / 20.0 x 11.0 x 10.0 cm
  Fixture Weight	3.0 lb / 1.36 kg

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 260 VAC, 50 / 60 Hz
  DC Input Power	10.2 to 18 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	45 W

  IP Rating	IP40
  Protection Class	III

  Box Dimensions (LxWxH)	8.25 x 4.6 x 4.0"

• Light Shield Ring

  Box Dimensions (LxWxH)	2.5 x 2.2 x 0.3"

• 8-Leaf Barndoor Set with Gel Clips (5.5")

  Box Dimensions (LxWxH)	7.35 x 3.75 x 1.15"

• Grip Handle with 5/8" Stud

  Box Dimensions (LxWxH)	7.5 x 1.8 x 1.3"

• LiTH 95SI V-Mount Self-Charging Lithium-Ion Battery (14.8V, 95Wh)

  Battery Mount	V-mount
  Output Voltage	14.8 VDC
  Capacity	95 Wh
  Maximum Discharge Rate	Up to 10 A
  Input Voltage	90-240 VAC
  Dimensions	6.5 x 4.1 x 1.8" / 16.5 x 10.5 x 4.5 cm
  Weight	2.2 lb / 1 kg

  Box Dimensions (LxWxH)	9.3 x 7.3 x 6.8"

• DLBCA2-V Belt Adapter for V-Mount Batteries with Holding Plate

  Compatibility	V-Mount Batteries
  Weight (Approx.)	1.00 lb / 0.45 kg

  Box Dimensions (LxWxH)	6.0 x 4.9 x 1.6"

• DSCM Soft Case

  Dividers	Yes

  Carry and Transport Options	Handle
  Material of Construction	Cordura Nylon
  Exterior Dimensions (W x H x D)	6.7 x 10 x 11" / 17 x 25 x 28 cm
  Weight	1.7 lb / 786 g

  Box Dimensions (LxWxH)	11.0 x 10.4 x 7.5"
