User Manual for Dedolight DLED7 Turbo Bi-Color Focusing LED Light Head Click to enlarge the picture
Contents of the user manual for the Dedolight DLED7 Turbo Bi-Color Focusing LED
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
 |
User manual for the Dedolight DLED7 Turbo Bi-Color Focusing LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|

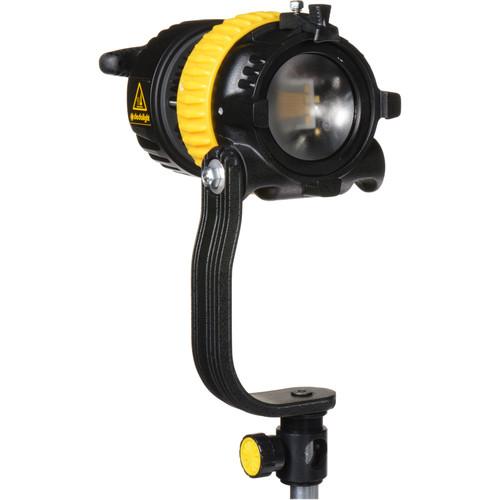

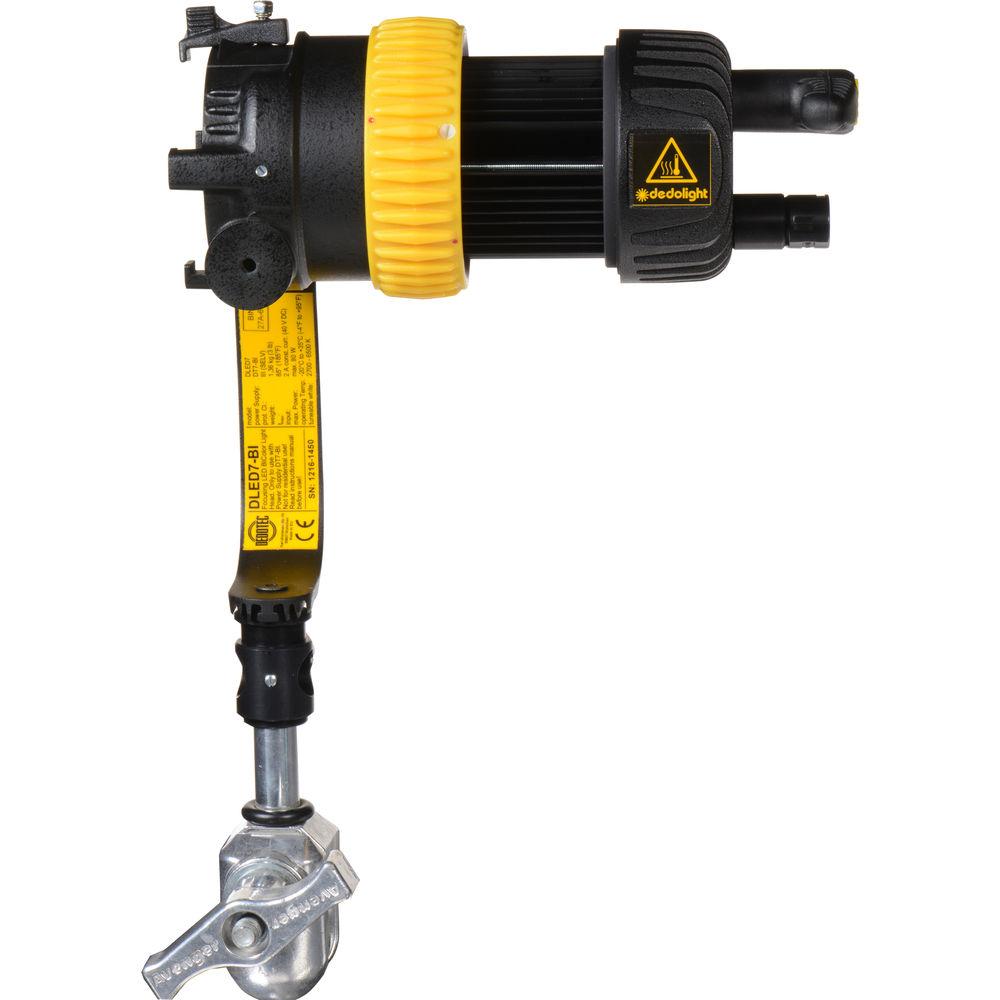

Product description A portable and versatile light source, the DLED7 Turbo Bi-Color Focusing LED Light Head from Dedolight blends a compact form factor with a cool, silent-running design and controllable light output. It's sleek size makes it suitable for use as a key light for location and interview lighting and the bi-color functionality, with continuous color temperature tuning from 2700-6500K, makes it ideal for working in mixed and changing ambient light. As a focusing LED, a double helical mechanism also allows you to change from spot to flood lighting within a 8 to 60° range. An additional DT7-BI Ballast is required for power, which alternates between two 90W light sources for a low overall power draw. Also, optional 3" accessories and modifiers can be used to modify the light quality and shape and the DLED7 has both a 5/8" receptacle and 1/-1/8" stud for mounting. - Photometrics
- Flood, at 5600K:
- 2150 lux / 200 fc at 3.3' / 1m
- 538 lux / 50 fc at 6.6' / 2m
- 239 lux / 22 fc at 9.9' / 3m
- 134 lux / 13 fc at 13.1' / 4m
- 86 lux / 8 fc at 16.4' / 5m
Medium, at 5600K:
- 3757 lux / 349 fc at 3.3' / 1 m
- 939 lux / 87 fc at 6.6' / 2 m
- 417 lux / 39 fc at 9.9' / 3 m
- 235 lux / 22 fc at 13.1' / 4 m
- 150 lux / 14 fc at 16.4' / 5 m
Spot, at 5600K:
- 15,400 lux / 1431 fc at 3.3' / 1m
- 3850 lux / 358 fc at 6.6' / 2m
- 1711 lux / 159 fc at 9.9' / 3m
- 963 lux / 90 fc at 13.1' / 4m
- 616 lux / 57 fc at 16.4' / 5m
In the Box Dedolight DLED7 Turbo Bi-Color Focusing LED Light Head Limited 1-Year Warranty Brochure PDF 3.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight DLED7 Turbo Bi-Color Focusing LED Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED7 Specs | | | Beam Angle | 4 to 60° | | Color Temperature | 2700 to 6500K | | Cooling System | Fan | | Display | None | | Fixture Dimensions | 6.3 x 5.4" / 16.0 x 14.0 cm | | Fixture Weight | 2.9 lb / 1.3 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 90 W | | | | IP Rating | IP20 | | Protection Class | III | | | | Package Weight | 3.475 lb | | Box Dimensions (LxWxH) | 13.25 x 11.8 x 5.35" |
