Product description

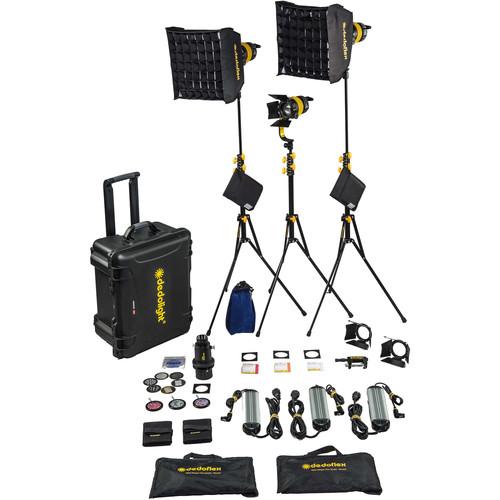

• Turbo Series DLED7 Daylight Focusing LED Light Head The Turbo Series DLED7 Daylight Focusing LED Light Head from Dedolight is a focusable LED light with a standard 5/8" receptacle. This pure mono-color fixture features an adjustable color temperature of 5,600K for providing a quality light that can be used in a wide range of situations. The light is dimmable without any color shift and offers tilt control with adjustable friction.As an LED fixture, it has low power draw of just 40W with an output of 38,000 lux at a distance of 3’ with a spot beam angle. Accessories can easily be fitted on a 3” diameter holder and the light features active cooling, meaning it doesn't require noisy fans to run. It also is lightweight for effective use as an on-camera light. This small and compact light head with a double helical focusing mechanism provides enhanced light output. The fixture works as a highly focusable and tunable back light or accent light and is ideal for delicate and moody background projection. When such background projections are lifted slightly out of focus, you can easily create the illusion of a 3-dimensional world.
• DT7-BAT-AB DC Ballast Power up a daylight or tungsten DLED7 Turbo Series LED light from a battery with this DT7-BAT-AB DC Ballast from Dedolight, which features a D-Tap input connector and a voltage of 11-36 VDC. This ballast provides support for dimming for advanced control over your light.
• Light Shield Ring Prevents stray light from exiting light head when no filter accessory is used.
• 8-Leaf Barndoor Set with Gel Clips (5.5") This is the Dedolight 8-Leaf Barndoor Set with Gel Clips. Barndoors narrow the beam spread of a light fixture. They help create a 3-dimensional look to a lighting scheme by placing light in a specific area or by keeping it away. The small leaves of this barndoor set have two helper leaves, which add more control of the light emitted from the fixture. Each large leaf has two clips for attachment of gel filters.
• Mini Speed Ring Adapter for DLH4, 4P, DLH4M-300 This Dedolight Speed Ring Adapter permits mounting of a Dedolight or Chimera Softbox to the front of a Dedolight DLH4, 4P, or DLH4M-300 fixture.
• Dedoflex Mini Softbox (Silver, 12 x 12") The Dedlight Dedoflex Mini Softbox measures 12 x 12" (30 x 30cm) and has a silver interior. It provides softness, with a little punch, when mounted to the front of a small Dedolight fixture.
• 40° Fabric Grid for DSBSXS Mini Softbox This 40° Dedolight Fabric Grid for DSBSXS Mini Softbox is a collapsible modifier that limits the light spread of a 12 x 12" Mini softbox. Grids are essential accessories for any lighting system. A grid alters the shape and intensity of the light output from your softbox when it is mounted on a light head. Fabric grids are hand-stitched and collapse easily for storage or transport. Use of a fabric grid will result in a narrower spread of light. The spread of light will be determined by the density of the honeycomb mesh and the distance of the subject from the light.
• Projection Attachment w/85mm f/2.8 Lens Used as a focusing snoot, the Dedolight Projection Attachment creates an area of light with either a soft or hard edge. It is supplied with an 85mm f/2.8 lens. An adjustable 18-leaf iris diaphragm, 60, 150 and 185mm lenses are also available separately.
  • Offers great versatility with a spring-loaded accessory slot that accepts a wide variety of optional accessories
  • An optional adjustable 18-leaf iris diaphragm allows the light to be focused in a tighter circle than is possible with the Projection Attachment alone.
  • A slide holder which will hold conventionally mounted 35mm slides is available. This allows the slide to be projected onto a set or background. (A Heat Filter should be used to prolong the life of the slide.)
  • An available gobo holder holds metal patterns or gobos that allow light to pass through, forming a pattern on a set or background.
• Dedo Gobo Holder for DP-1, Holds "M" Size Gobos A two part holder for round, standard M-size metal gobos (shadow patterns).
• Gobo Kit - Set of 6 A set of 6 assorted Standard M Size (2.5" 66mm) gobos to project patterns using the Dedolight Projection attachments.
• Gel Filter Holder 3x3" Constructed out of two metal frames which slide inside each other. Accepts any type of heat-resistant 3x3"gel filter for color correction, color conversion, color effect or diffusion.
• 24-Piece 3 x 3" Warm Tone Filter Set The Dedolight 24-Piece 3x3" Warm Tone Filter Set contains four each of their Dark Bastard Amber, Deep Straw, No Color Straw, Medium Amber, Pale Amber Gold, and Golden Amber filters.
• 20-Piece 3x3" Filter Set The Dedolight 20-Piece 3x3" Filter Set includes four each of their Tough Frost, Powder Frost, Light Tough Frost, Tough Silk, and Tough White Diffusion filters.
• Filter Set 3x3" 36 filters. 4 Medium Yellow, 4 Daylight Blue, 4 Salmon Pink, 4 Sea Blue, 4 Deep Pink, 4 Chroma Green, 4 Rose Purple, 4 Kelly Green and 4 Lilac.
• DP-1 Accessory Pouch The Dedolight DP-1 Accessory Pouch is a replacement for the original pouch supplied with the Dedolight Projection Attachment with 85mm f/2.8 lens
• Light Clamp Attaches securely to stands, pipes, shelves, etc. up to 1-7/8 in (4.8 cm) diameter. A 5/8 in stud pivots and locks in two positions.
  5.2 oz (147 g).
• Compact Light Stand (7') This black anodized aluminum, 7' Dedolight Compact Light Stand weighs only 2.1 lb. Its maximum height is 7 feet, and it folds down to just 19".

• Limited 1-Year Warranty

• Head Cable

• Limited 1-Year Warranty

• Limited 90-Day Warranty

• Limited 5-Year Warranty

• Limited 1-Year Warranty

• Storage Bag

• Storage Pouch

• 90-Day Warranty from

• Limited 1-Year Warranty

Also Includes

• 3 x DFX Glass Filters with Holders (DFXT6-R, DFXT10-B, DFXT11-P)
• Hard Case with Handle and Wheels

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Turbo Series DLED7 Daylight Focusing LED Light Head

  Focus Range	Intensity Range: 60° to 4° (1:20)
  Focus Control	One complete turn on focus ring
  Photometrics	Flood 3' (1 m): 2500 lux (232 fc) 6' (2 m): 625 lux (58 fc) 9' (3 m): 278 lux (26 fc) 12' (4 m): 156 lux (15 fc) 15' (5 m): 100 lux (9 fc) Medium 3' (1 m): 4760 lux (442 fc) 6' (2 m): 1190 lux (111 fc) 9' (3 m): 529 lux (49 fc) 12' (4 m): 298 lux (28 fc) 15' (5 m): 190 lux (18 fc) Spot 3' (1 m): 38000 lux (3532 fc) 6' (2 m): 9500 lux (882 fc) 9' (3 m): 4222 lux (392 fc) 12' (4 m): 2375 lux (221 fc) 15' (5 m): 1520 lux (141 fc)
  Tilt	Permanent friction
  Cooling	Active silent
  Mount	0.6" (16 mm) receptacle and 1.1" (28 mm) stud
  Accessory Mounting	3.0" (76 mm) diameter
  Power Draw	90 W
  Safety	Protection Class III, SELV, IP20
  Dimensions	Flood: 7.2 x 4.3 x 7.6" (18 x 11 x 19 cm) Spot: 7.2 x 4.3 x 9.3" (18 x 11 x 24 cm)
  Weight	2.9 lb (1.3 kg)

  Box Dimensions (LxWxH)	11.6 x 6.7 x 5.2"

• DT7-BAT-AB DC Ballast

  Input Voltage	11-36 VDC
  Connector	1 x D-Tap
  Dimensions	8.4 x 2.8 x 2.0" / 21.3 x 7.2 x 5.0 cm
  Weight	1.3 lb / 610.0 g

• Light Shield Ring

  Box Dimensions (LxWxH)	2.5 x 2.2 x 0.3"

• 8-Leaf Barndoor Set with Gel Clips (5.5")

  Box Dimensions (LxWxH)	7.35 x 3.75 x 1.15"

• Mini Speed Ring Adapter for DLH4, 4P, DLH4M-300

  Compatible Lighting	Dedolight
  Number of Mounting Holes	4

  Box Dimensions (LxWxH)	3.7 x 3.2 x 0.6"

• Dedoflex Mini Softbox (Silver, 12 x 12")

  Size	12 x 12" (30 x 30 cm)
  Shape	Square
  Compatibility	Dedolight fixtures
  Removable Front Face	No
  Removable Interior Baffle	No
  Accepts Grids	No
  Requires Speed Ring	optional

  Box Dimensions (LxWxH)	15.906 x 6.378 x 2.598"

• 40° Fabric Grid for DSBSXS Mini Softbox

  Box Dimensions (LxWxH)	8.1 x 5.6 x 0.8"

• Projection Attachment w/85mm f/2.8 Lens

  Weight

  15.4 oz (437 g)

  Box Dimensions (LxWxH)	8.0 x 5.3 x 5.0"

• Dedo Gobo Holder for DP-1, Holds "M" Size Gobos

  Weight

  .8 oz (22 g)

  Box Dimensions (LxWxH)	15.95 x 3.95 x 0.25"

• Gobo Kit - Set of 6

  Box Dimensions (LxWxH)	4.5 x 4.5 x 0.02"

• Gel Filter Holder 3x3"

  Dimensions	3 x 3" (76 x 76 mm)
  Weight	0.3 oz (8.5 g)

  Box Dimensions (LxWxH)	15.95 x 9.45 x 0.85"

• 24-Piece 3 x 3" Warm Tone Filter Set

  Color/Effect	Warming
  Filter Number	None

  Shape	Square
  Dimensions	W: 3 x H: 3" / W: 76.2 x H: 76.2 mm

  Box Dimensions (LxWxH)	3.0 x 3.0 x 0.02"

• 20-Piece 3x3" Filter Set

  Dimensions

  3.0 x 3.0" (7.6 x 7.6 cm)

  Box Dimensions (LxWxH)	4.6 x 4.4 x 0.5"

• Filter Set 3x3"

  Box Dimensions (LxWxH)	3.0 x 3.0 x 0.02"

• DP-1 Accessory Pouch

  Box Dimensions (LxWxH)	6.1 x 5.9 x 1.1"

• Light Clamp

  Clamp Type	Pipe
  Jaw Opening	1.88 " / 4.8 cm

  Box Dimensions (LxWxH)	6.0 x 2.3 x 1.5"

• Compact Light Stand (7')

  Load Capacity	3 lb / 1.4 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	7' / 2.1 m
  Minimum Working Height	21" / 53.3 cm
  Collapsed Height	19" / 48.3 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Weight	2.1 lb / 0.9 kg

  Box Dimensions (LxWxH)	19.5 x 3.4 x 3.1"
