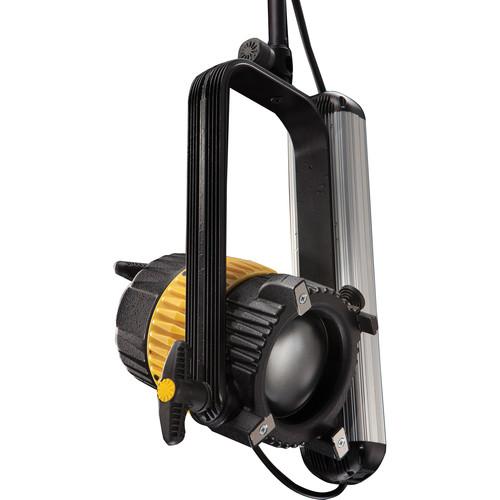

User Manual for Dedolight DLED9.1SE-T-DMX Studio Edition Tungsten LED Light Head Click to enlarge the picture
Contents of the user manual for the Dedolight DLED9.1SE-T-DMX Studio Edition Tungsten LED
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight DLED9.1SE-T-DMX Studio Edition Tungsten LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The DLED9.1SE-T-DMX Studio Edition Tungsten LED Light Head from Dedolight is a capable 3200K LED light source with quality color reproduction due to a CRI of >91. This DMX compatible Studio Edition comes on a U-shaped yoke mount with a 5/8" receptacle and 1 1/8" stud for a straightforward mounting setup as well as an AC power supply. The DLED9.1 is focusable from 50 to 4° and can be continuously dimmed from 100-0%. Additionally, it can output up to 40,800 lux at 3' when set to spot and has a low power draw of 90W.
The compact light head is designed for passive cooling as well, meaning that there are no fans that can add unwanted noise to the scene. It can operate in any position and has a holder for 5.1" diameter accessories such as a wide-angle attachment for expanding the focus range. The light features Protection Class III, SELV, and IP40 ratings for safety. - Control your light remotely with the DMX compatible power supply
- Optional aspheric wide-angle attachment widens beam angle range to 75 to 44°
- Accepts Series 400 accessories and imagers
- Focus control is handled through one complete turn on the focus ring
- Tilt control features permanent friction
- Protection Class III, SELV, and IP40 rated
- Can run on universal 90-264 VAC power source
In the Box Dedolight DLED9.1SE-T-DMX Studio Edition Tungsten LED Light Head DT9.1-DMX AC Power Supply for DLED9.1 LED Lights Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight DLED9.1SE-T-DMX Studio Edition Tungsten LED Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED9.1 Specs | | | Beam Angle | 4 to 50° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 91 | | Cooling System | None | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Fixture Dimensions | 9.4 x 15.0 x 9.2" / 23.9 x 38.1 x 23.4 cm | | Fixture Weight | 8.2 lb / 3.7 kg | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 90 W | | | | Power Supply Weight | 3.1 lb / 1.4 kg | | | | IP Rating | IP40 | | Protection Class | III |
