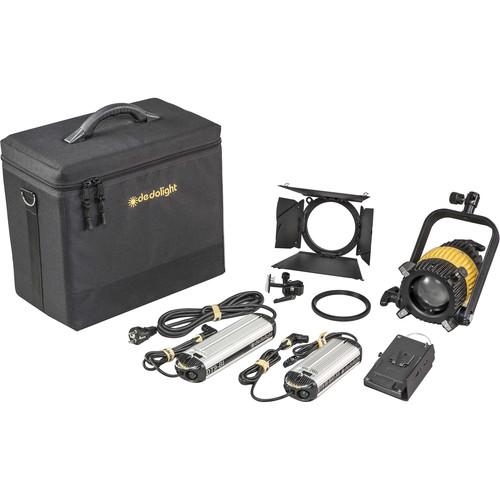

User Manual for Dedolight DLED9-BI Bi-Color LED 1-Light Kit Click to enlarge the picture
Contents of the user manual for the Dedolight DLED9-BI Bi-Color LED 1-Light Kit
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight DLED9-BI Bi-Color LED 1-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description A versatile one-point setup for both location and studio applications, the DLED9-BI Bi-Color LED 1-Light Kit from Dedolight bundles a focusable bi-color LED fixture with both AC and DC ballasts for flexible power options, as well as a soft case to protect the kit contents during travel or storage. - DLED9.1-BI Bi-Color LED Light Head The DLED9.1-BI Bi-Color LED Light Head from Dedolight is a capable 3200-5600K LED light source with quality color reproduction due to a CRI of >91. The DLED9.1 is focusable from 50 to 4° and can be continuously dimmed from 100-0%. Additionally, it can have its color balance tuned from 3200-5600K and has a low power draw of 90W.
The compact light head is designed for passive cooling as well, meaning that there are no fans that can add unwanted noise to the scene. It can operate in any position and has a holder for 5.1" diameter accessories such as a wide-angle attachment for expanding the focus range. The light features Protection Class III, SELV, and IP40 ratings for safety and requires and optional universal power supply for operation. - Control your light remotely with the DMX compatible power supply
- Optional aspheric wide-angle attachment widens beam angle range to 75 to 44°
- Accepts Series 400 accessories and imagers
- Focus control is handled through one complete turn on the focus ring
- Tilt control features permanent friction
- Protection Class III, SELV, and IP40 rated
- Can run on universal 90-264 VAC power source with required optional power supply
- Power Supply for DLED9 Bi-Color Lamp Head This Dedolight Power Supply for DLED9 Bi-Color Lamp Head is rated for 90-264VAC mains power for worldwide use. It features dimming from 0-100%, an 8.4' mains cable and weighs 3.1 lb.
- DT9-BI-BAT-AB DC Ballast Power up your DLED9 bi-color LED light while on location with this DT9-BI-BAT-AB DC Ballast which sports a D-Tap connection for working from a battery or other portable power source. This ballast is dimmable for control over your fixture and offers color tuning, along with a digital display for color temperature. Additionally, it accepts a wide range of voltages from 11-36 VDC.
- Soft Case for DLED9 Light Head
In the Box Bundle Items DLED9.1-BI Bi-Color LED Light Head sausuxtuxbytdasczxrzrq Power Supply for DLED9 Bi-Color Lamp Head DT9-BI-BAT-AB DC Ballast Soft Case for DLED9 Light Head Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight DLED9-BI Bi-Color LED 1-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DLED9.1-BI Bi-Color LED Light Head
| | | Beam Angle | 4 to 50° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 91 | | Cooling System | None | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Fixture Dimensions | 9.4 x 15.0 x 9.2" / 23.9 x 38.1 x 23.4 cm | | Fixture Weight | 8.2 lb / 3.7 kg | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 90 W | | | | IP Rating | IP40 | | Protection Class | III | | | | Box Dimensions (LxWxH) | 15.6 x 12.0 x 10.5" | - Power Supply for DLED9 Bi-Color Lamp Head
| | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Draw | 90.00 W | | | | Mount Fixture | Cable Loop | | IP Rating | IP40 | | | | Dimensions | 10.35 x 2.8 x 2" / 263 x 72 x 50 mm | | Weight | 3.1 lb / 1.4 kg | | | | Box Dimensions (LxWxH) | 13.6 x 6.2 x 2.6" | - DT9-BI-BAT-AB DC Ballast
| Input Voltage | 11-36 VDC | | Connector | 1 x D-Tap | - Soft Case for DLED9 Light Head
| | | Box Dimensions (LxWxH) | 17.2 x 17.0 x 10.7" |
